You might wonder, can micro tunneling hit 10mm tolerance consistently? The answer relies on the quality of your tools, guidance systems, and the expertise of your team. CEGC provides the right tools and skills necessary to meet stringent regulations. In urban environments, maintaining tight tolerances is crucial to avoid costly utility issues and ensure your tunnel boring machine operates smoothly and accurately.
Key Takeaways
-
Micro tunneling can reach 10mm tolerance with good tools and skilled workers. Careful planning is very important for success.
-
Real-time monitoring and advanced guidance systems help keep the tunnel straight. These tools let workers fix problems fast if they happen.
-
Knowing the ground is very important. Do careful geotechnical checks to pick the best tunneling machine and stop expensive delays.
Can micro tunneling hit 10mm tolerance consistently?
Industry Standards for Microtunneling Tolerances
You might wonder if micro tunneling can always stay within 10mm tolerance. There are rules in the industry that say how close the tunnel must be to the plan. In the United States and other countries, most projects allow a tunnel to be off by 25 mm to 50 mm. Some jobs need even smaller tolerances, especially in busy cities or near important utilities. The best micro tunneling machine systems can finish with only 12 mm off in the side direction and 11 mm off in the up-and-down direction. These numbers are much better than the biggest allowed difference.
It is important to know that watching the tunnel in real time helps meet these rules. Surveyors use special tools to check where the tunnel machine is as it works. For example, laser guidance and digital gyroscope systems help keep the tunnel straight and at the right angle. These systems can keep the tunnel within ±10 mm for long distances, if you use the right tunnel boring machine.
Factors Affecting Tolerance in Microtunneling
Can micro tunneling always hit 10mm tolerance? The answer depends on a few key things. You have to think about the ground, the type of micro tunneling machine, and how skilled your team is. Here are the main things to remember:
-
Keeping the tunnel lined up is very important. If the tunnel machine stays on track, you do not have to fix mistakes or deal with utility problems.
-
Watching the tunnel as it is made helps you find mistakes early. You can fix the tunnel’s path before the mistake gets too big.
-
The kind of micro tunneling machine you pick matters. Slurry-type machines keep the tunnel face steady and are good for long tunnels. Earth Pressure Balance (EPB) machines work in many soils and do not need much extra fluid. Auger-coupled machines are simple and cheap for short tunnels but may not stay as accurate for long ones.
-
The size and pushing force of your tunnel machine should fit your project. For example, a 450 mm machine works with a 500 mm pipe and can stay within 10 mm if you use the right guidance.
-
The ground can change fast. You need good soil data before you start. If the soil changes, you might spend more money or take longer. Planning well helps you pick the best tunnel boring machine and avoid problems.
Here is a table that shows how ground conditions affect your tunnel job:
|
Impact on Microtunneling Operations |
|
|---|---|
|
Geological Variation |
Biggest risk for micro tunneling machine working well |
|
Accurate Geotechnical Data |
Needed to choose the right machine and plan the job |
|
Cost Overruns and Delays |
Happen if the ground changes in ways you did not expect |
|
Decision Making |
Helps you pick the best tunnel machine |
|
Cost Simulation |
Lets you guess costs when things are not certain |
You can get better results by using CEGC’s special options. For example, you can pick different cutting heads for different soils, use jacking frames that fit many pipe sizes, and add lubrication systems for hard jobs. Special sensors help with high water pressure or loose ground. These features help your micro tunneling machine stay accurate, even on tough jobs.
Can micro tunneling always hit 10mm tolerance? With the right tunnel machine, skilled workers, and good planning, you can reach this level of accuracy. CEGC gives you standard performance and custom options to help you reach your goals for every tunnel job.
Achieving Tight Tolerances in Microtunneling
Advanced Guidance and Control Systems
You need special systems to keep the tunnel straight. Real-time monitoring shows where the tunnel machine is at all times. This lets you fix problems fast if the tunnel moves off course. Laser guidance gives a steady point in the middle of the tunnel. The laser shines on a target inside the tunnel machine. You can check the tunnel’s position and make sure it stays straight and at the right angle. Automatic tracking tools, like dual-screen laser targets, help you keep the tunnel accurate.
Here is a table that shows important parts that help control the tunnel boring process:
|
Component |
Description |
|---|---|
|
Microtunnel Boring Machine |
Steerable, guided machine for precise tunnel creation |
|
Jacking system |
Pushes the pipe into the tunnel |
|
Spoil removal system |
Removes excavated material from the tunnel |
|
Guidance and control system |
Gives real-time data on position and operation |
|
Pipe lubrication system |
Makes pipe installation smooth and reduces friction |
|
Active Direction Control |
Uses a laser beam to keep the tunnel machine on the planned path |
Face Pressure and Ground Protection Solutions
Building a tunnel has risks like ground moving or water getting in. CEGC’s closed-mode face support keeps the tunnel face steady. Soil conditioning, like adding bentonite or polymers, makes the ground easier to cut. It also helps the tunnel keep its shape. Over-cutting and lubrication lower friction and stop the tunnel from falling in. These solutions protect the tunnel and help you keep it lined up right.
Cutterhead and Wear Management for Precision
The cutterhead design is important for accuracy. You can pick a cutterhead for soft ground or hard rock. This helps you keep the tunnel straight and avoid mistakes. CEGC has wear management plans, like reversible cutter heads and systems that check for damage. These tools help you keep the tunnel boring machine working well. With these systems, you can finish the tunnel with high accuracy and avoid expensive repairs.
Tip: Real-time monitoring and picking the right cutterhead help you finish your tunnel project on time and within the planned tolerances.

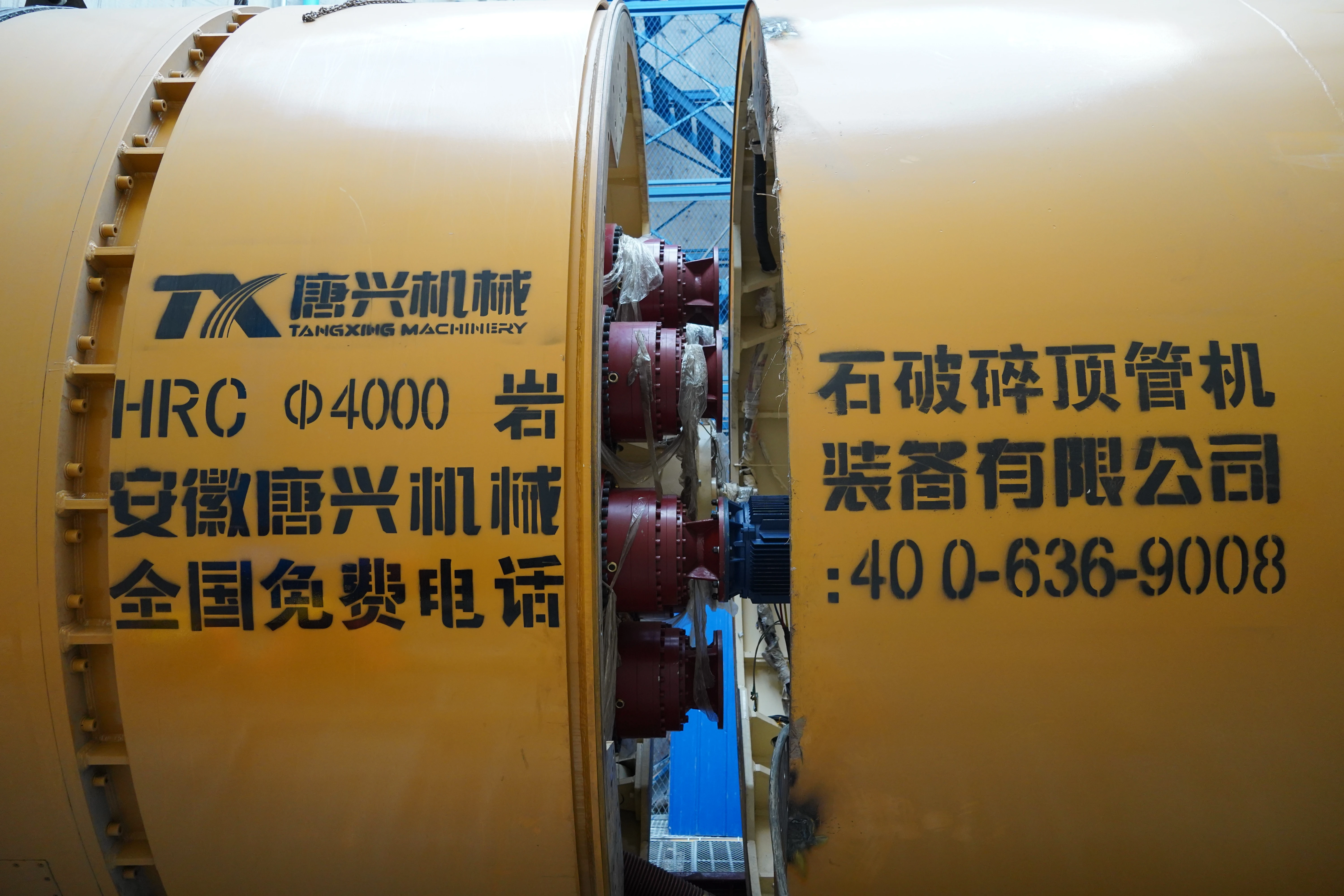

Challenges and Limitations for Tight Tolerances
Ground Settlement and Face Instability Risks
Trying to keep your tunnel within 10mm tolerance is hard. Some types of ground make this job tricky. Soft soils and lots of water can cause the ground to move. Sudden changes in the ground can make the tunnel face unstable. These problems can affect how well your tunnel is built. You can use different ways to lower these risks:
|
Description |
|
|---|---|
|
Earth Pressure Balance Method |
Balances soil and water, so the ground does not settle. |
|
Control of Excavation Rates |
Changes machine speed to stop digging too much. |
|
Limiting Radial Overcut |
Keeps the tunnel shape tight to control ground movement. |
|
Use of Bentonite Lubricant |
Fills spaces and helps keep the ground steady. |
|
Cement Grout Filling |
Adds strength after tunneling by filling gaps with grout. |
Alignment Deviation and Overcut Issues
Working in broken rock or mixed ground can cause problems. The tunnel might not stay straight or might get too big. These issues can make the ground above sink or damage your equipment. Here are some reasons why this happens:
-
Hard or cracked ground can push the tunnel off its path.
-
Digging too much can change the soil and make the ground sink.
-
Too much force on the tunnel machine can make it stop or go off track.
-
Steering and guidance systems help, but skill and soil type matter too.
-
Long tunnel jobs can make small mistakes grow bigger, making it harder to stay within tolerance.
Practical Recommendations for Best Results
You can make your tunnel job better by doing a few things:
-
Check cutting heads often and change them if they are worn out.
-
Use good lubricants to keep moving parts working smoothly.
-
Look at hydraulic systems to stop problems while tunneling.
-
Clean out debris so your machine does not get too hot.
-
Keep support systems working to stop the tunnel from moving or getting off track.
-
Test electrical and control systems to catch mistakes before they happen.
You can also pick CEGC’s special options for tough jobs. CEGC gives help for trenchless methods, advanced guidance, and custom project choices. These tools help you work faster and finish your project well, even when the ground is difficult.
You can get 10mm tolerance in tunnel jobs with good planning. Advanced guidance systems help keep the tunnel straight. Real-time monitoring lets you see problems as they happen. Always check the ground before you start digging. Pick the right tunnel machine for your project. CEGC’s technical support helps you do your best work.
-
Laser guidance and automatic steering keep the tunnel lined up.
-
Geotechnical investigations help you know the ground before you dig.
|
How It Helps Your Tunnel Project |
|
|---|---|
|
Custom equipment design |
Fits your tunnel needs and makes it more accurate |
|
Expert consulting and planning |
Helps you pick the best tunnel machine |
|
Full engineering support |
Fixes hard tunnel problems |
FAQ
