You know that downtime makes your horizontal directional drilling projects slower. CEGC made its Directional Boring Machine Self Cleaning Never Clogs to fix this problem. It uses advanced fluid systems, drill bits that do not clog, and real-time monitoring to help you stop stuck pipe. Around 70% of lost time happens because of uncleanness in horizontal directional drilling.
Key Takeaways
-
Automated fluid systems help keep your directional boring machine clean. They save time and cut down on waste by using drilling fluids again.
-
Rotating cutter heads and special flow channels stop clogs from happening. They move debris away fast, so drilling goes smoothly.
-
Real-time monitoring lets you change cleaning steps right away. This stops blockages and keeps drilling working well.
Self-Cleaning Mechanisms in Directional Boring Machines
Automated Fluid Systems
You need your directional boring machine to stay clean for every job. Automated fluid systems help a lot with this. These systems use drilling fluids to move dirt and debris out of the borehole. There are different kinds of automated fluid systems in new machines:
-
Mud recycling systems clean and reuse drilling fluids. This cuts down on waste and keeps your work area neat.
-
Decanter centrifuges take solids out of drilling fluids fast. This makes cleaning quicker and easier.
-
Micro recycling systems let you clean and reuse fluids on small jobs. They are great for work in cities.
These systems do most of the work by themselves. You do not have to do much. They save you time and money because you use fewer new fluids and do not have to throw away as much. You also help the planet by using less water and making less mess.
Rotating Cutter Heads
Rotating cutter heads break up dirt and rock as you drill. Their shape helps keep things clean because they move debris along. When the cutter head spins, it pushes stuff into the flow of drilling fluids. This stops things from building up and keeps the borehole open. Cleaning works best when you use the right fluid thickness. The right thickness helps the fluids carry debris away and stops clogs.
Debris Ejection Paths
Debris ejection paths are special channels inside the machine. They guide dirt and rock out of the borehole. These paths work with the auger system and drilling fluids to keep things moving. When debris ejection works well, cleaning is much easier. The auger system pulls debris out, and the fluids wash the inside of the machine. This teamwork means you spend less time fixing things and more time drilling.
Tip: Always check your drilling fluids and auger system before you start. Good cleaning needs both to work well.
Clog-Resistant Design Features
Anti-Stick Coatings
You want your directional boring machine self cleaning never clogs, even when the ground is hard to drill. Anti-stick coatings cover the inside parts of the machine. These coatings stop sticky dirt and debris from sticking. When you use the machine, the coatings keep the surfaces smooth. This makes cleaning faster and easier for you. You do not have to stop a lot to clean out stuck debris. The anti-stick layer also helps protect your machine from getting worn out. Your machine lasts longer and does not break down as much. Cleaning stays simple, so you can keep drilling.
Optimized Flow Channels
Optimized flow channels are important for making sure your directional boring machine self cleaning never clogs. These channels help move drilling fluids and debris out of the machine. They keep the cleaning working well. The table below shows how these channels help move debris and stop blockages:
|
Evidence Description |
Impact on Drilling Fluids and Debris Movement |
|---|---|
|
The optimized flow channels reduce vortex regions that hinder cuttings removal. |
Makes it easier for debris to move and not get stuck. |
|
Increased crossflow velocity directs cuttings towards the annular area. |
Helps debris move faster and more smoothly. |
|
The crossflow area increases significantly, reducing vortex influence. |
Lets drilling fluids flow better through the machine. |
|
High crossflow velocity aids in separating cuttings from bedrock. |
Makes it easier for the machine to carry away debris. |
|
High pressure ensures quick exit of cuttings from flow paths. |
Stops blockages and helps debris leave the machine quickly. |
You can see that cleaning works best when debris moves fast. Mud pumps push fluids through these channels. This keeps debris from blocking the way. Your directional boring machine self cleaning never clogs because the flow channels keep cleaning all the time.
Real-Time Monitoring
Real-time monitoring helps your directional boring machine self cleaning never clogs. You can watch how cleaning works, how debris moves, and how the machine is doing while you drill. Here are some things you should do:
-
Keep your equipment clean and free from dirt.
-
Use cases to protect your tools when you are not using them.
-
Wipe off water and mud, especially on screens.
-
Watch the depth, position, and pressure.
-
Check if fluids are coming back and how much debris there is.
-
Share information between locating tools and control stations.
With real-time monitoring, you can find problems before they cause blockages. You can change mud pumps or cleaning steps right away. This keeps your directional boring machine self cleaning never clogs, even if the ground changes. You get good cleaning, less downtime, and better results.

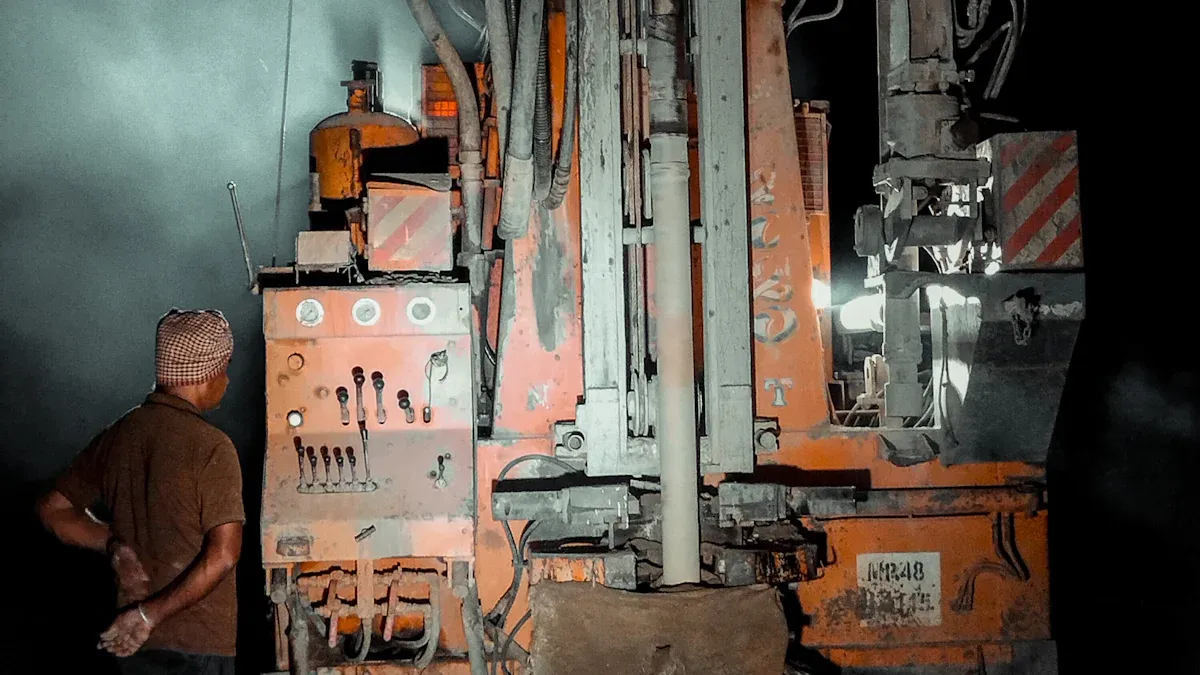

How Directional Boring Machine Self Cleaning Never Clogs in Practice
Step-by-Step Operation
You want to see how your directional boring machine works without clogs. Here is a simple step-by-step process that shows how all the cleaning features work together:
-
Start the Drill Rig
You turn on the machine and check all systems. You make sure the mud pumps are ready. The cleaning system starts right away. -
Mix and Pump Mud
You mix the right mud for the ground. The mud flows through the drill rods and reaches the cutter head. This mud helps with cleaning by carrying dirt and rocks away from the drill bit. -
Cut and Break Ground
The rotating cutter head breaks up soil and rock. As the head spins, it pushes debris into the mud flow. The cleaning action keeps the cutter head clear. -
Move Debris Through Flow Channels
The optimized flow channels guide the mud and debris out of the borehole. The cleaning system uses high pressure to keep everything moving. You do not see blockages because the mud keeps the path open. -
Eject Debris with Auger System
The auger system pulls debris out of the machine. The cleaning process works with the mud to remove all cuttings. You see clean returns at the exit pit. -
Monitor in Real Time
You watch the screens for pressure, mud flow, and cleaning results. If you see a change, you adjust the mud mix or pump speed. This keeps the cleaning strong and prevents clogs. -
Finish and Inspect
When you finish drilling, you check the borehole. You see that the cleaning system kept the path clear. The mud and cleaning features worked together the whole time.
Tip: Always use the right mud mix for your ground. Good cleaning depends on the right mud and steady flow.
Clog Prevention in Real Scenarios
You face many types of ground when you drill. Each type can cause problems, but your CEGC Trenchless Drilling Rig uses cleaning and mud systems to stop clogs before they start. Here are some common scenarios:
|
Scenario |
Challenge |
How CEGC Rig Prevents Clogs |
|---|---|---|
|
Hard Rock |
Debris can block the cutter head |
High-pressure mud and cleaning channels move rock pieces out fast. |
|
Mixed Soils |
Sticky clay and sand can mix |
Anti-stick coatings and steady mud flow keep cleaning smooth. |
|
Wet Conditions |
Mud can get thick and slow |
Real-time monitoring lets you adjust mud mix for better cleaning. |
|
Long Bores |
More debris builds up |
Optimized flow channels and strong mud pumps keep cleaning all the way. |
You drill in hard rock. The cleaning system uses strong mud flow to push out rock chips. You do not stop to clear the cutter head. In mixed soils, sticky clay can slow you down. The anti-stick coatings and mud keep the cleaning going. You do not see clogs because the mud keeps moving. When you drill in wet ground, the mud can get thick. You watch the screens and change the mud mix. The cleaning system keeps working, and you finish the job on time.
You also drill long bores under roads or rivers. The cleaning system and mud pumps work together. You see that cleaning stays strong from start to finish. You do not lose time fixing clogs. Your directional boring machine self cleaning never clogs, even in tough jobs.
Note: Always check your cleaning system and mud before each job. Good cleaning means less downtime and better results.
You do not just get a machine when you use CEGC’s horizontal directional drilling solutions. You also save time and money. The table below shows how much you can save:
|
20% |
|
25% |
|
30% |
You make less noise and keep the soil cleaner. You finish your projects faster. You do not have to pay for costly repairs. Pick CEGC if you want a machine that works well and fits your needs.
FAQ
How does the self-cleaning system work during drilling?
You see the system use mud pumps and flow channels. These move debris out fast. The cutter head stays clean. You keep drilling without stopping.
What should you check before starting a drilling job?
Always check mud levels, fluid systems, and auger paths. Make sure all parts work. This helps you avoid clogs and downtime.
Can you use CEGC’s Trenchless Drilling Rig in mixed soils?
Yes, you can. The anti-stick coatings and real-time monitoring help you drill through clay, sand, or rock. You get smooth cleaning in every ground type.
