You can face big problems when micro tunneling needs yaw control on tight curves. Pipes can get out of line, break, or rub too much. These issues can make your project take longer. CEGC helps by giving you smart guidance systems, special cutterhead designs, and ways to handle hard situations.
|
Key Feature |
Description |
|---|---|
|
Advanced Guidance Systems |
Needed to move through tight curves with accuracy. |
|
Cutterhead Designs |
Made to deal with tough curves in different ground types. |
|
Adaptability to Ground Conditions |
Able to handle many ground challenges, which is important for micro tunneling to work. |
Key Takeaways
-
Yaw control is very important for microtunneling on tight curves. It keeps the tunnel machine moving on the right path. It stops expensive errors from happening.
-
Advanced guidance systems use laser and gyroscopic technology. These systems make tunneling more accurate. They let workers change directions while tunneling.
-
Checking and updating your tunnel machine’s systems often can lower downtime. It also makes your team safer.
Yaw Control In Microtunneling
What Is Yaw Control?
You must keep the tunnel machine going the right way. Yaw control in microtunneling machines uses a guidance system. This system keeps the machine’s direction steady underground. It gives you real-time updates about where the machine is. You can make small changes to the direction when needed. This helps you follow the planned path. When you use a Microtunnelling Machine or a TBM tunnel boring machine, yaw control helps you avoid mistakes. These mistakes can slow down your work or cause damage.
Steering Tunnel Machines
You steer a tunnel machine with special joints and hydraulic cylinders. These parts let you change the pitch, roll, and yaw. You can make quick changes as you dig. This is important for tight curves. Some machines have double articulation joints. These joints help you turn in small spaces. Advanced control systems can give you semi-automatic or automatic steering. This makes your job easier. It also helps keep the tunnel on track. These features are very helpful when micro tunneling needs yaw control on tight curves.
Guidance System Integration
Guidance systems and yaw control work together for better accuracy. Laser-based targeting systems show you where the machine is. They help you stay on the right line. Gravity-referenced inclinometers measure the pitch and roll. This tells you the exact angle of your TBM tunnel boring machine. Market-standard guidance systems give you real-time monitoring and active direction control. You get information on the operating console. This lets you make fast decisions. CEGC’s tunnel machines have these advanced features. They help you meet strict project standards and finish your work safely.
Challenges On Tight Curves
Alignment & Overcut Risks
It is risky to steer a tunnel machine on a tight curve. Even a tiny mistake can make the machine leave the planned path. This can cause overcut, which means the tunnel gets too wide. Overcut wastes both time and money. It also makes it harder to put in pipes or tunnel pieces. You need very good yaw control to keep your TBM tunnel boring machine or Microtunnelling Machine going the right way.
Using these machines in different ground types is still hard for engineers. TBM steering and guidance tools are better now for tight curves, but turning sharp 90-degree bends without too much wear is still tough.
Pipe Stress & Damage
When you push pipes through a curve, they can bend or twist a lot. This stress can make the pipe crack or break. Broken pipes can leak or even ruin the whole project. You need a tunnel machine with strong guidance and steering systems. These systems help you avoid sharp turns and keep the pipe safe. Micro tunneling needs yaw control on tight curves to stop pipes from getting damaged.
Ground Settlement Issues
Tight curves in cities make things even harder. You have to protect buildings, roads, and other things above the tunnel. If the ground sinks too much, it can crack or damage things on top. You must always control the tunnel path and pressure. The table below shows why good control is important in city jobs:
|
Constraint Type |
Description |
|---|---|
|
Alignment and Stability |
You need good yaw control to keep the tunnel straight and stable in busy city areas. |
|
Surface Settlement |
Microtunneling keeps the ground from sinking more than 5 cm to stop problems. |
|
Real-time Adjustments |
Remote systems let you make quick changes to keep the tunnel in the right place. |
|
Obstacle Navigation |
You must be exact to go around pipes and buildings without mistakes. |
You can see that micro tunneling needs yaw control on tight curves to follow city rules and keep everyone safe.

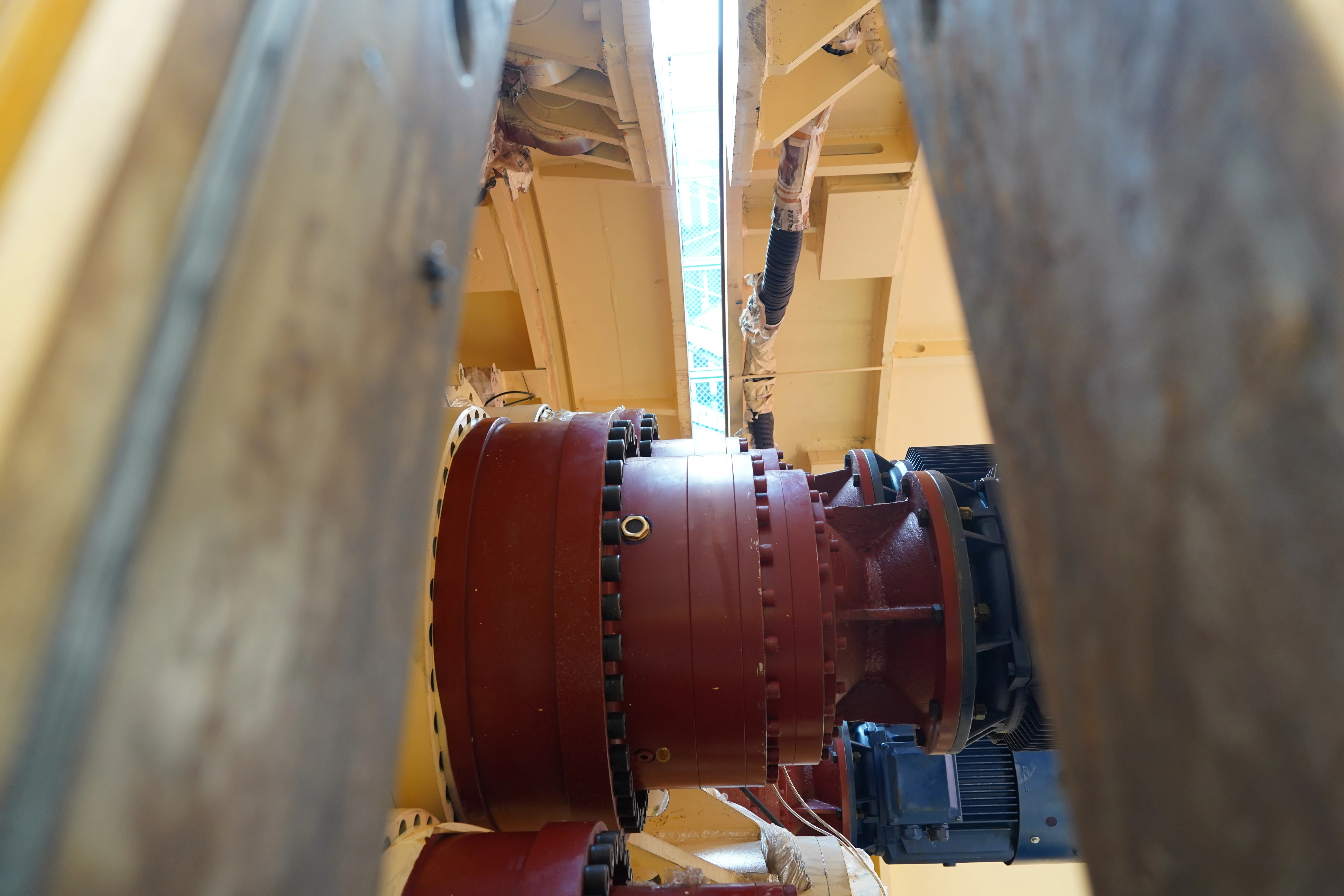

micro tunneling needs yaw control on tight curves
Solutions For Tight Curves
You face many problems when your project needs sharp turns underground. Micro tunneling needs yaw control on tight curves to keep the tunnel machine going the right way. Advanced systems help you steer very accurately. Computer controls show you where the machine is and which way it is facing. You can fix mistakes quickly.
Modern tunnel machines use different tools to handle tight curves:
-
Automated pressure control systems help stop the ground from falling in and keep workers safe.
-
Dual laser guidance and PTZ cameras help you keep the tunnel very close to the planned line.
-
Modular designs let you change cutting angles and swap out old parts fast, so your project does not slow down.
CEGC gives you many ways to change your tunnel machine for hard jobs. You can see some choices in the table below:
|
Technical Solutions |
|
|---|---|
|
Tailored equipment solutions for tunnelling, port, and mining projects |
Comprehensive trenchless engineering support for HDD, pipe jacking, and microtunnelling projects |
These features make sure your tunnel boring machine or microtunnelling machine can handle sharp turns in any ground.
Project Benefits
When you use advanced yaw control, your project gets many good things. Micro tunneling needs yaw control on tight curves to keep your work safe and on time. Here are some main benefits:
-
Computer systems give you updates right away, so you do not make expensive mistakes.
-
Safety tools like emergency brakes and overload protection stop the machine from breaking.
-
Good steering keeps the tunnel on the planned path, so you do not dig too much or need lots of repairs.
-
Workers can watch and control the machine from a safe spot above ground.
-
Data logging helps you check your work and follow engineering rules.
You also get a safer worksite and better working conditions for your team. It is easier to talk between the tunnel and the surface. Strong machines with good service help you finish your project on time.
Implementation Tips
You can make your project better by following some easy tips. Micro tunneling needs yaw control on tight curves, so always use the best guidance and control systems. Here are some steps you can try:
Tip: Always make sure your tunnel machine has the newest guidance systems before you start a new job.
-
Use sensors to check yaw, pitch, and roll angles as you work.
-
Pick guidance systems with laser or gyroscopic technology for the best accuracy.
-
Teach your team how to use the control systems and understand the data.
-
Plan for regular checks to keep your modular parts working well.
-
Work with CEGC to change your tunnel machine for your project.
You can check how well your yaw control works with these methods:
|
Measurement Method |
Description |
|---|---|
|
Sensor Detection |
Sensors on the TBM check yaw, pitch, and roll angles, and a driver watches them in real time to keep the machine straight. |
|
Advanced Guidance Systems |
These systems use laser guidance or gyroscopic technology to track the machine’s position very closely. |
|
Laser Guidance |
A laser beam from a fixed spot points to a target inside the machine, giving feedback on pitch, yaw, and roll all the time. |
|
This tool tracks the machine’s position in real time compared to the design line, so microtunneling is very exact. |
If you follow these tips, you will have less downtime, spend less on repairs, and keep your team safe. Micro tunneling needs yaw control on tight curves to meet today’s tough project rules and get the best results.
You need yaw control for microtunneling on tight curves. Advanced guidance and steering systems help you work better. These systems make your work more accurate and faster. Look at how these features help your project:
|
Feature |
|
|---|---|
|
Precision |
Helps you make fewer mistakes and stay on track. |
|
Real-time adjustments |
Lets you fix problems quickly. |
|
Operational efficiency |
Makes your project go smoother and faster. |
You can ask CEGC for tunnel machine solutions made just for you. Begin by checking what your project needs and picking the best guidance system.
FAQ
What is yaw control in a tunnel machine?
Yaw control lets you steer the tunnel machine left or right. You keep the machine on the planned path, even on sharp curves.
Why do you need yaw control for microtunneling?
You need yaw control to avoid pipe damage and misalignment. It helps you finish your project safely and on time.
How does CEGC help with tight curve tunneling?
-
You get advanced guidance systems.
-
You can customize your tunnel machine.
-
You receive support for safe and accurate tunneling.
