TBM tunnel pressure control reduces restart failures, ensuring your tunneling projects operate more efficiently. By using pre-injection and effective pressure management, reliability increases and costs are reduced. Project managers and engineers experience improved outcomes, with machines running longer and fewer delays. CEGC provides local experts and delivers cost advantages, helping you achieve accurate project estimates.
Key Takeaways
-
Good pressure control is very important to stop restart failures in tunnel boring machines. It keeps the ground safe and stops water from coming into the tunnel.
-
Getting help from CEGC experts can help you pick the best ways to control pressure for your project. This makes your project safer and saves money.
-
Checking pressure often and teaching your team can make tunneling better. Real-time data lets you act fast when pressure changes and helps you avoid delays.

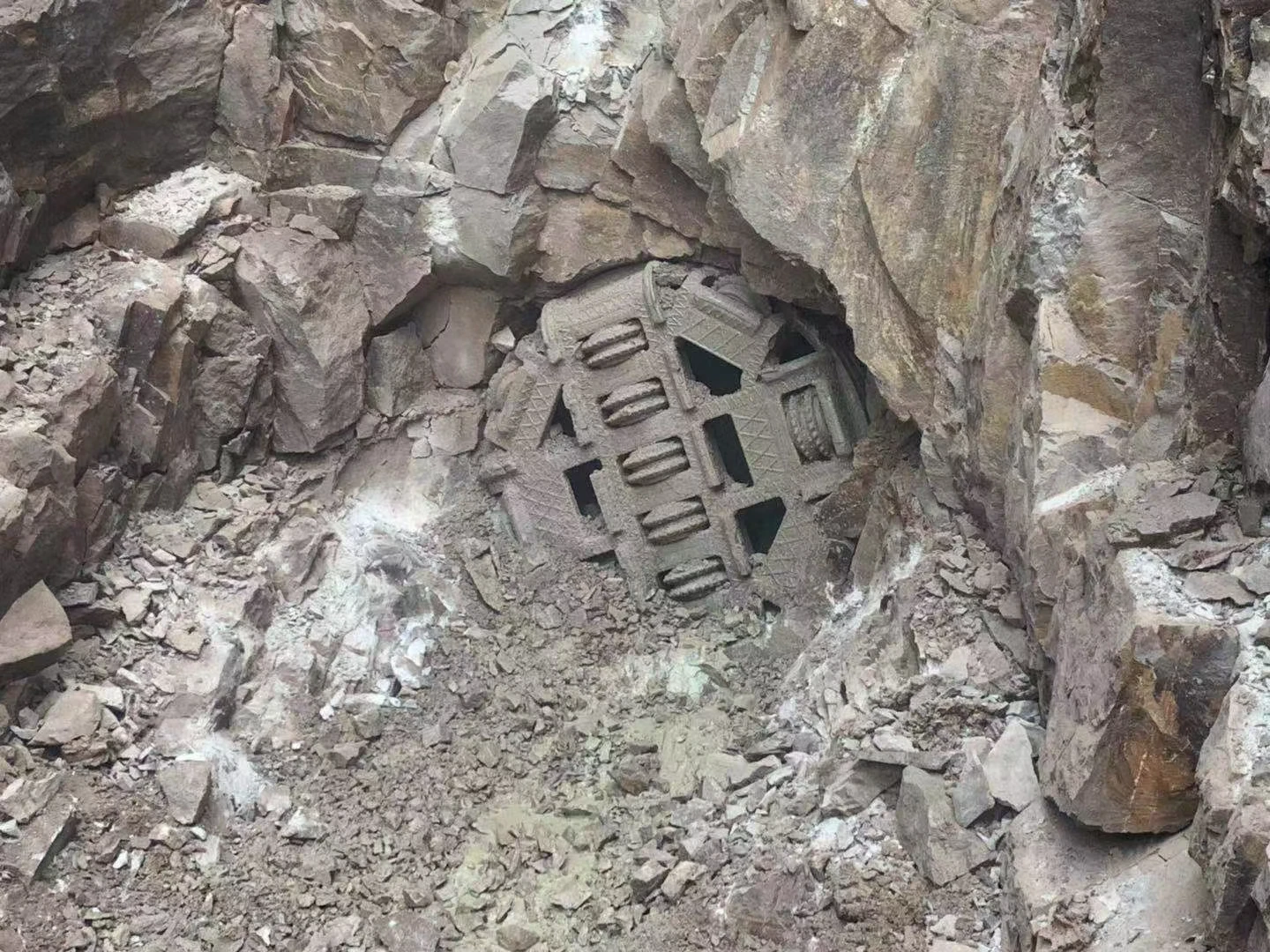

Restart failures in tunnelling
What are restart failures?
Restart failures happen when a tunnel boring machine cannot start again after stopping. This can happen if the machine gets stuck, loses pressure, or the ground is not stable. These problems can show up in many types of tunnels and soils. For example:
-
Hard rock TBMs work well in strong rock, but too much stress or water can slow them or break parts.
-
Earth pressure balance TBMs are good for mixed ground, but if the face pressure is not even, the ground can move.
-
Slurry TBMs are used in loose ground and high water, but sudden water can flood the machine.
-
Clay in the soil can block the cutter heads, making it harder to restart.
-
If the tunnel is not deep or there are faults, the ground can fall in or the surface can sink.
You need to know about these risks to keep TBM work running smoothly.
Impact on tunnelling projects
Restart failures can slow down your tunnel work and make it cost more. If a TBM cannot start again, you might need to fix it, pump out water, or make the ground stronger. This takes more time and money for your project. Sometimes, the ground moves or water gets in and hurts the tunnel or causes problems above ground. These things make it hard to know how long the job will take or how much it will cost.
Restart failures also make the work more risky. In tough ground, like mixed soils or places with lots of water, failures are more likely. You need to work on lowering these risks to keep your tunnel safe and finish on time. Good planning and pressure control help you stop these problems and finish your tunnel work well.
TBM tunnel pressure control reduces restart failures
How pressure control works in tunnelling
It is important to know how pressure control works in tunnelling. This helps your tunnel boring machine work well. Pressure control lets you handle the forces at the tunnel face, around the annulus, and in the grout. Each part helps keep the ground steady and stops water from getting into the tunnel.
-
You match face, annulus, and grout pressures to the groundwater head. This keeps the soil in place and blocks water from coming in.
-
You treat the soil to make it less able to let water through and to keep the face strong. This makes the ground less likely to move or fall.
-
You drill ahead and add grout before the cutterhead in risky spots. This gives more support and lowers the chance of sudden ground movement.
-
You watch and work with your team for good pressure control. This helps you act fast if the ground changes.
Slurry tbms use water and bentonite to balance face pressure and keep the tunnel face safe. Earth pressure balance tbms push soil forward to control face pressure. Both ways help you stop problems while tunnelling.
Tip: When you work above 3–4 bar (45–60 psi), hyperbaric work gets much harder. You need special plans and safety steps.
Mechanisms for reducing restart failures
TBM tunnel pressure control helps stop restart failures by keeping the ground steady, blocking water, and stopping jams. You use face pressure control to keep the tunnel face from falling or sinking. If you do not control face pressure, the soil can move and cause ground loss or sinkholes. Too much face pressure can make blow-outs or ground heave, which can jam the machine.
Here is a table that shows how pressure control helps stop problems in tunnelling:
|
Evidence Point |
Description |
|---|---|
|
Faults can cause shear failure and ground deformation, leading to collapse and surface settlement. |
|
|
Water Inflow Risks |
High hydraulic conductivity of faults can lead to mud/water inflow, which can be worsened by high water pressure. |
|
Face Pressure Management |
Proper management of face pressure is essential to prevent ground loss and mitigate risks of collapse or severe surface settlement. |
You need to keep face pressure steady when you stop and start again. This stops the soil from moving and keeps the tunnel boring machine safe. Slurry tbms and earth pressure balance tbms both need good face pressure control to avoid jams and delays.
Good pressure control also helps you stop machine jams. You balance the forces from soil and water at the tunnel face. If you keep face pressure right, you stop too much resistance or collapse. If you let face pressure drop, loose soil can cause ground loss and sinkholes. If you raise face pressure too much, you can get blow-outs or ground heave, which can jam the machine.
Regional knowledge: ground conditions and cost factors
You must think about local ground and cost issues when you plan pressure control in tunnelling. CEGC’s local experts help you pick the right ways for your project. Different places have special ground types that change how you manage face pressure and tunnel safety.
|
Evidence |
Description |
|---|---|
|
Geological conditions are critical for TBM control and decision-making, influencing construction efficiency and safety. |
|
|
Monitoring Methods |
Various geological detection methods and real-time monitoring of TBM parameters are essential for understanding ground conditions. |
|
Data Analysis |
The relationship between monitoring parameters and geology can be described by data analysis, reflecting changes in geology during tunnelling. |
|
Key Rock-Breaking Parameters |
TBM parameters such as cutterhead speed and torque show a good correlation with geological conditions. |
|
Performance Correlation |
TBM performance is notably influenced by geological factors like rock mass rating and rock strength. |
You also need to look at costs in your area. High starting costs, not enough skilled workers, and special crew needs can change your budget. Set-up, care, and changes for ground types add to the total cost. CEGC’s local storage and service help you lower these costs and keep your project going.
|
Cost Factor |
Description |
|---|---|
|
High Capital Costs |
TBMs can cost upwards of $10–50 million per unit, excluding transport, assembly, and maintenance. |
|
Skilled Labor Shortage |
Developing markets often lack trained personnel, leading to project delays and underutilization. |
|
High costs are a major barrier to TBM adoption, especially in developing areas. |
|
|
Additional Costs |
Set-up, maintenance, and customization for ground conditions increase total costs. |
|
Specialized Crew Requirement |
TBMs require specialized crews and continuous technical support, impacting long-term costs. |
You check if pressure control works by matching face, annulus, and grout pressures to the groundwater head. You treat the soil and add grout before the cutterhead in risky spots. You watch and work with your team for good pressure control. These steps help you stop restart failures and make tunnelling better.
TBM tunnel pressure control helps stop restart failures by keeping the tunnel face steady, blocking water, and stopping jams. You use local knowledge and cost facts to plan your project and pick the best pressure control ways. This helps you finish tunnels safely and on budget.
Best practices and market benefits
Monitoring and safety systems
You can get better results in tunnelling by using good tbm pressure control steps. First, do careful face pressure calculations. Do not use too much safety margin because it can cause trouble. Try to keep pressure changes small so the ground stays steady. Put workers on the surface in sensitive spots to watch for ground or slurry loss. Make a weekly sheet that shows ground conditions, target face pressures, and hazards.
Operator training matters a lot. Make sure your team gets hands-on training with throttle body control systems. Practice normal and emergency steps. Use simulations to get ready for different tunnelling situations. This helps your team act fast if pressure changes.
Modern safety systems help you check and control pressure right away. Sensors watch pressure and temperature changes. Automated safety responses can start actions in emergencies. Emergency shutdown systems stop the tbm if needed to keep workers and equipment safe.
|
Feature |
Description |
|---|---|
|
Sensors give live data on pressure and temperature. This helps you find problems early. |
|
|
Automated Safety Responses |
Systems act quickly in emergencies to lower damage and keep people safe. |
|
Emergency Shutdown |
Stops the tbm fast if a big problem happens. |
Practical examples and CEGC cost advantages
Real-time monitoring helps a lot in tunnelling. For example, you can check cutter-head vibration, which links to ground conditions and tbm movement. When you restart after stopping, strong vibration can warn you about jams. Watching pressure around the shield helps you see and stop problems before they slow you down.
In one project, using these systems stopped restart failures and kept the tunnel face steady. The team avoided delays and finished the tunnels on time. You can get the same results by following these steps.
CEGC gives extra help in local markets. Local storage means you get spare parts quickly, which lowers downtime. Service support in your area helps you fix problems fast. Lower costs for tbm machines help you stay on budget. These benefits make your tunnelling projects more reliable and cheaper.
You must watch pressure all the time in your tunnel project. Pressure protects your TBM. It stops restart failures. It holds up the ground. It keeps water out. It stops jams. It helps you save money. It helps your project do well. Pressure is better with CEGC’s help.
FAQ
What is the cheapest tunnel machine supplier in the Middle East?
You can save the most money with CEGC. They have local warehouses. They send machines straight to you. This helps you pay less for shipping and taxes.
How do regional duties affect TBM machine imports?
Import duties are not the same in every country. CEGC’s team explains these costs to you. They help you make a good budget.
How does CEGC reduce project costs for tunnel machines?
CEGC gives local service and quick spare parts. They let you pay in different ways. You do not need to bring workers from far away. This keeps your project moving.
