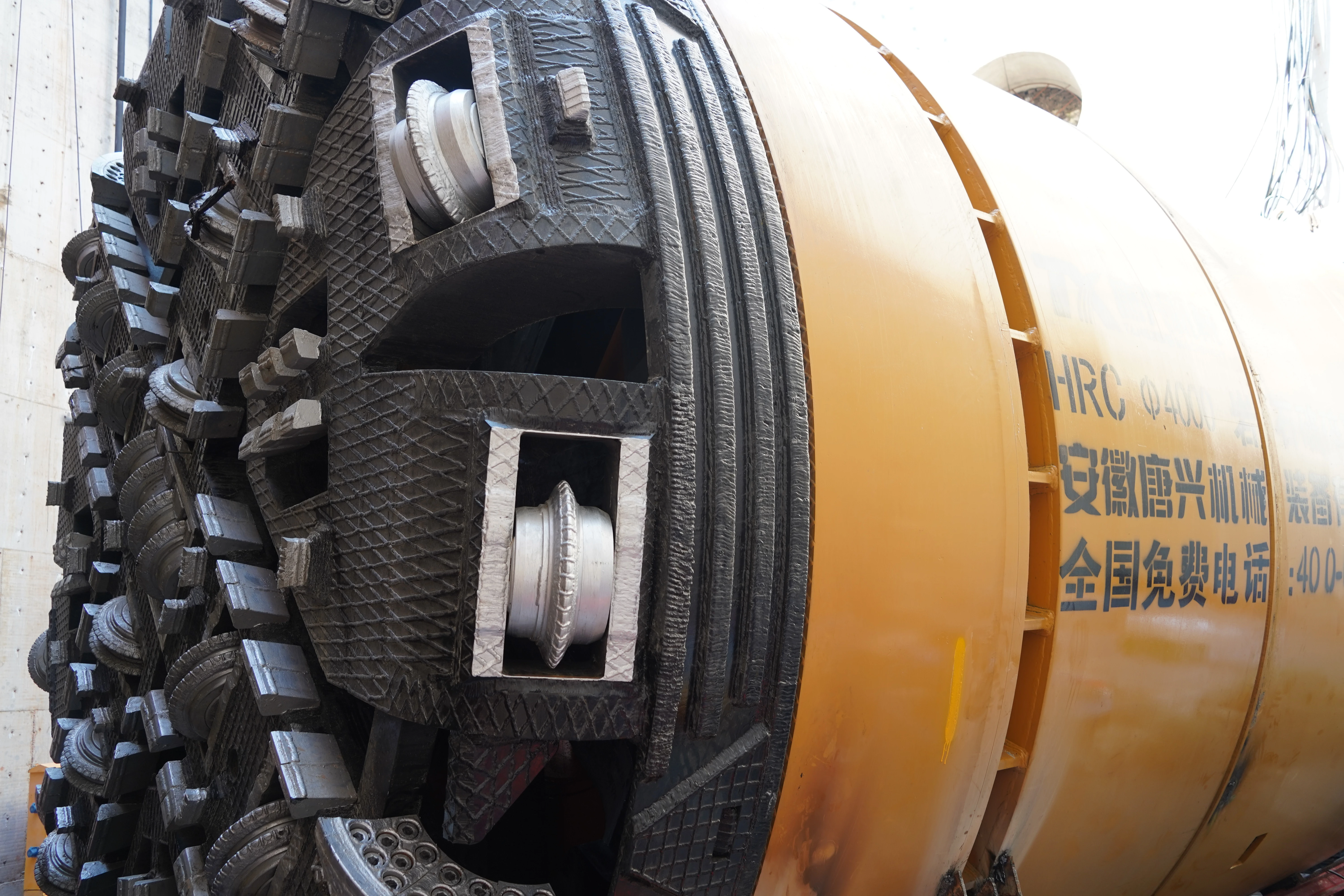

Thrust imbalance often starts after TBM machine maintenance

Thrust imbalance often starts after TBM machine maintenance. This issue can arise if parts do not fit correctly or if small details are overlooked. Additionally, thrust imbalance can occur due to uneven pressure. CEGC understands that thrust imbalance can begin after TBM machine maintenance and is dedicated to helping you keep your tunnel boring machine safe.

Key Takeaways

• It is important to put the thrust system back together carefully. If you skip steps or use wrong parts, thrust imbalance can happen. This can make the machine work badly.

• Always check if the tunnel boring machine is lined up right. If it is not, it can cause stress and cracks. Thrust imbalance can also happen and make tunneling harder.

• Watch the hydraulic and lubrication systems closely. Good maintenance stops uneven force and overheating. This helps the machine run well and lowers repair costs.

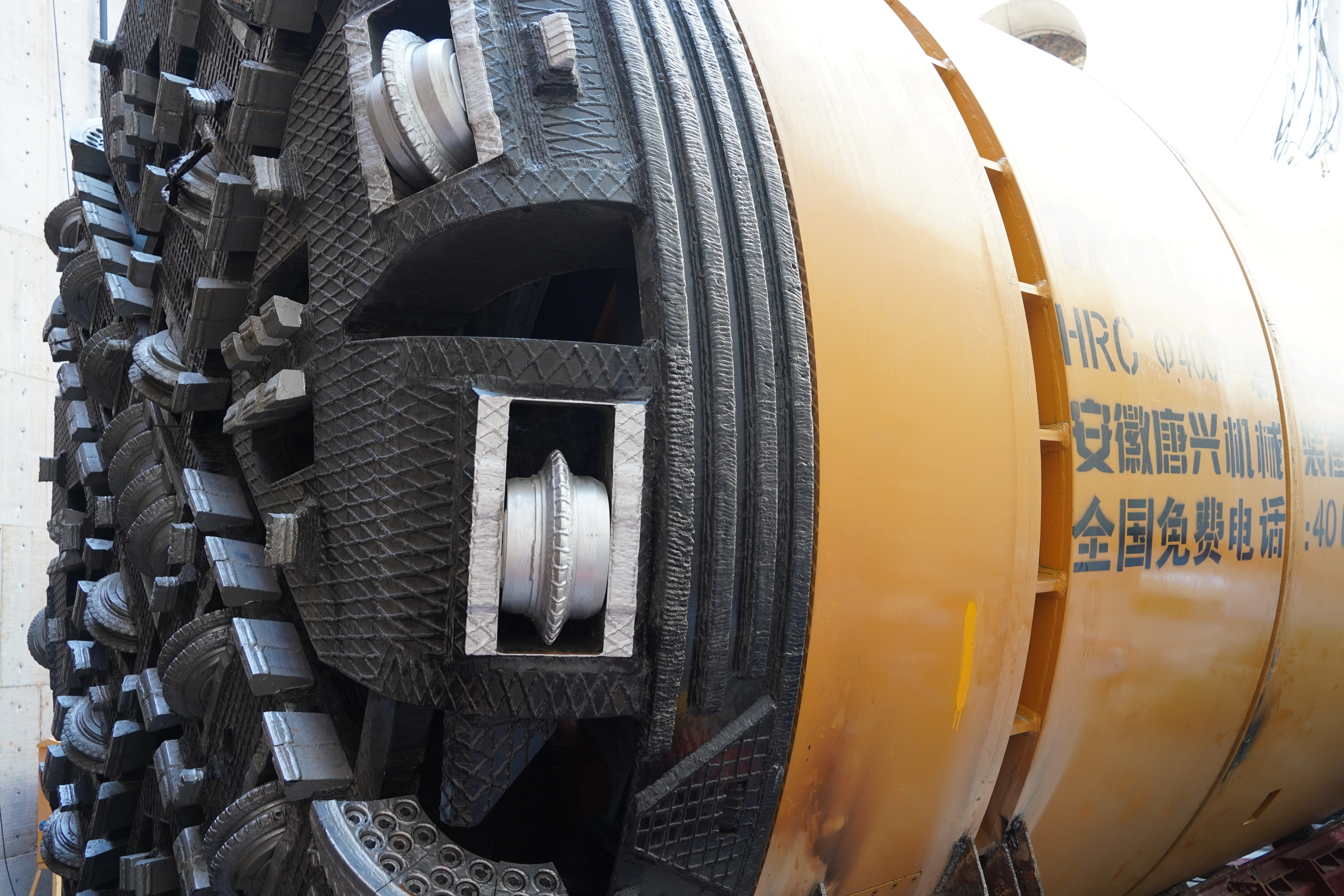

Why thrust imbalance often starts after TBM machine maintenance

Improper Reassembly of Thrust System

It is important to be careful when putting the thrust system back together. If you skip a step or use the wrong part, the tunnel boring machine can lose balance. This makes it hard for the machine to push forward. Not following the right steps means the thrust system might not work as it should. This can make the machine get uneven force. The tunnel boring machine may have trouble moving in a straight line. If you do not check your work or hurry, thrust imbalance can happen more easily. Broken parts can stop the tunnel boring machine from working right. This can make the machine lose balanced thrust. Always use real parts and follow the instructions from the maker. Checking the machine often helps you find problems early and keeps your tunnel boring project going well.

Misalignment in Tunnel Boring Machines

Misalignment is a problem that can happen after you finish working on a tunnel boring machine. Even a small mistake can cause big problems when tunnelling. If the machine is not lined up right, it puts extra stress on the tunnel pieces. This stress can make cracks and damage. Studies show that misalignment can make the bottom segment take up to 76% of the concrete’s strength. If there is a problem between rings, the stress can go up to 94%. This makes cracks more likely. If the misalignment is 4% of the diameter, the chance of thrust imbalance goes up a lot. You should always check the alignment before you start tunnelling. Experts say to keep the joints within 5mm to stop cracks and stress. Measuring and fixing the parts before you put them in can stop these problems. If you do not check alignment, you might see uneven cutterhead torque and bad results.

• Misalignment can:

  • Put more stress on tunnel segments

  • Cause cracks in the tunnel lining

  • Lead to thrust imbalance and uneven cutterhead torque

  • Make the tunnel boring machine wear out faster

Hydraulic and Lubrication Issues

Hydraulic systems help the tunnel boring machine move. If the hydraulic system does not work well, the machine can move in an unstable way and get misaligned. Uneven force from hydraulics can cause thrust imbalance. Old or broken parts in the hydraulic system make things worse. You might have more downtime and spend more money if you do not fix these problems fast. Lubrication is also needed for smooth tunnelling. If you forget to check or add lubricants, the machine can get too hot. This can cause uneven cutterhead torque and more wear on the tunnel boring machine. Always check the hydraulic system and keep it working well. Lubricating often helps you avoid expensive repairs and keeps your tunnel boring project running well.

Tip: Always follow the inspection schedule for your tunnel boring machine. Use only approved lubricants and parts to keep the machine working its best.

When you know the main causes of thrust imbalance, you can stop them from happening. Careful reassembly, good alignment, and regular checks of the hydraulic and lubrication systems will help your tunnel boring machine work well. You will also protect your equipment and keep your tunnelling project on time.

Detecting and Preventing Imbalance in Tunnel Boring

Warning Signs After Maintenance

You should look for warning signs after you finish working on your tunnel boring machine. Finding problems early can help you stop bigger issues during tunnelling. One sign is if the machine shakes more than normal. If you feel extra shaking, check the machine right away. Shaking can mean the thrust system is not balanced. You might also hear weird sounds or see the tunnel boring machine move in a jumpy way. These are clues that something is wrong.

If the machine slows down or gets stuck, thrust imbalance might be the reason. You may see uneven wear on the cutterhead or find cracks in the tunnel lining. These problems often happen when shaking gets worse after maintenance. Always look for leaks in the hydraulic system. Leaks can make the force change fast and cause more shaking. If you see oil spots or puddles, stop tunnelling and check the machine.

Tip: Write down all shaking levels and how the machine acts after every time you do maintenance. This helps you notice changes early.

Maintenance Best Practices

You can stop thrust imbalance by doing good maintenance. Always use the right tools and parts for your tunnel boring machine. Clean every part before you put it back together. Dirt or small things can make the machine shake and get damaged during tunnelling. Make sure you follow the maker’s instructions. Do not skip steps or hurry.

Check if the machine is lined up before you start tunnelling. Use measuring tools to make sure everything fits right. If you find a problem, fix it before you begin. Put oil on all moving parts. Good oiling stops shaking and helps the machine run smoothly. Test the hydraulic system for leaks and pressure problems. Fix any issues before you start tunnelling.

Teach your team to spot early signs of thrust imbalance. Show them how to measure shaking and look for cracks. Have safety meetings often to talk about best ways to work. When you do these things, you keep your tunnel machine safe and your project on track.

Testing and Monitoring Procedures

Testing and watching the machine are important for keeping your tunnel boring machine safe. You should use real-time monitoring systems while tunnelling. These systems watch how the machine works, the ground, and other things. They help you make quick changes if you see too much shaking or other problems. New automation systems can also make things safer and faster.

AI-driven guidance systems use machine learning to change the machine as it works. These systems help you stop thrust imbalance and lower shaking. You can use sensors to check thrust force and torque levels. These numbers tell you if the machine is working well. If you see a sudden change, stop tunnelling and check the machine.

Here are some key performance indicators you should watch:

You should also keep track of how long the machine works before it breaks and how long repairs take. Good planning and fixing things before they break can help your tunnel boring machine work longer. When you know about torque and thrust forces, you can pick the right tunnel machine for your job. This helps you stop shaking and other problems.

Note: Always test the machine before and after you do maintenance. Use your monitoring tools to check for shaking and other signs of imbalance.

When you follow these steps, you keep your tunnelling project safe and working well. You lower the chance of expensive repairs and lost time. You also help your tunnel boring machine last longer and work better.

You can stop thrust imbalance if you are careful. Put the parts back together the right way. Make sure everything is lined up. Check the tunnel boring machine after you finish maintenance. If you skip these steps, your tunnel machine could have problems. Doing things the right way helps you in many ways:

• You can change settings while the machine works.

• You notice problems early.

• You help your tunnel boring machine work well every time.

FAQ

What should you check first if you notice shaking after maintenance?

First, look at the thrust system and alignment. These parts often make the machine shake during tunnelling jobs.

How often should you inspect your tunnel boring machine?

Check your machine before and after every tunnelling job. Regular checks help you find problems early.

Can you use your TBM machine for different ground types?

You can use your TBM machine in many ground types. Always read the specs and ask for advice for your project.
