Yaw Control in Tunnel Boring Machines
Definition and Function
Yaw control is like the steering wheel for a tunnel boring machine. It helps the machine stay pointed the right way as it digs. Microtunnel boring machines use a laser system to guide them. This system gives live updates about yaw, which is the angle of the machine compared to the tunnel path. The guidance system helps workers steer the machine the right way.
-
Yaw control has sensors that watch where the machine is.
-
The system checks the angle and direction as it moves.
-
Workers get quick updates and can change the machine’s path.
Yaw control helps the TBM machine work well under stress. It keeps the tunnel straight and makes sure it matches the plan.
Role in TBM Operation
Tunnel boring machines dig tunnels for trains, roads, and pipes. There are different kinds of TBMs, like Earth Pressure Balance, Slurry Shield, and Hard Rock machines. Earth Pressure Balance TBMs work in soft dirt and can dig in harder ground too. Yaw control helps all types of TBMs stay on the right path. Special sensors, like dual-axis inclinometers, check pitch, roll, and yaw. Workers get live data so they can fix problems fast. This makes tunnel building safer and more exact.

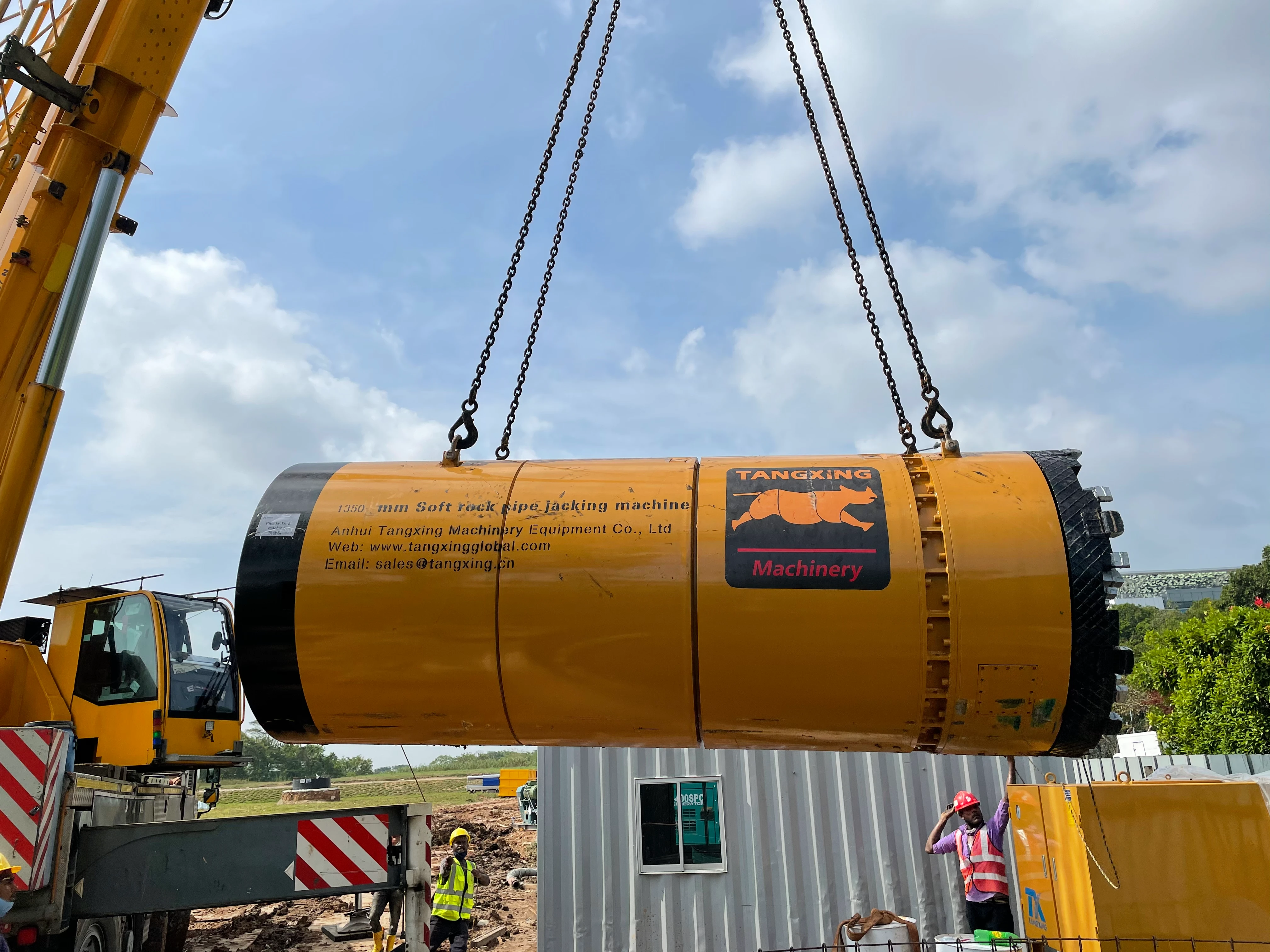

Stress Factors Affecting TBM Productivity
Geological and Alignment Challenges
Running a tunnel boring machine is not easy. The ground under cities can change a lot. Sometimes you dig in soft clay. Other times, you hit hard rock or wet areas with water. You also have to stay away from things already built underground. These things make it hard to keep the machine on track.
-
The ground can move and change the tunnel’s direction fast.
-
Old pipes or buildings underground make you change your path.
-
Water in the ground can slow work and make it less safe.
Different ground types change how well you can dig. Soft ground needs good workers and a strong machine. Hard ground can make the machine work harder. The ground can change quickly and make the machine jam. This can waste energy. You need smart tools to guess and fix these problems.
Mechanical Stress and Fatigue
Machines get tired and worn out when digging tunnels in cities. The disc cutters wear down from use. Sometimes, parts get blocked or bent out of shape. Small cracks and chips can form in the metal. These problems make the machine last less time and slow down the work.
|
Performance Indicator |
Impact on Productivity |
|---|---|
|
Rate of penetration |
Digging faster means you finish the tunnel sooner. |
|
Hole position quality |
If the hole is not in the right place, you need to fix it. This takes more time and slows you down. |
|
Loss of cemented carbide bit |
Losing a bit makes the machine dig slower and stop working. |
|
Replacement of alloy bit |
Changing bits costs money and takes time, so work slows down. |
|
Requirement for high productivity |
Working fast is important in cities to avoid problems. Stopping the machine makes things harder. |
When the machine stops for repairs, it costs more money. Yaw control helps keep the TBM machine working by keeping it straight and cutting down on stops.

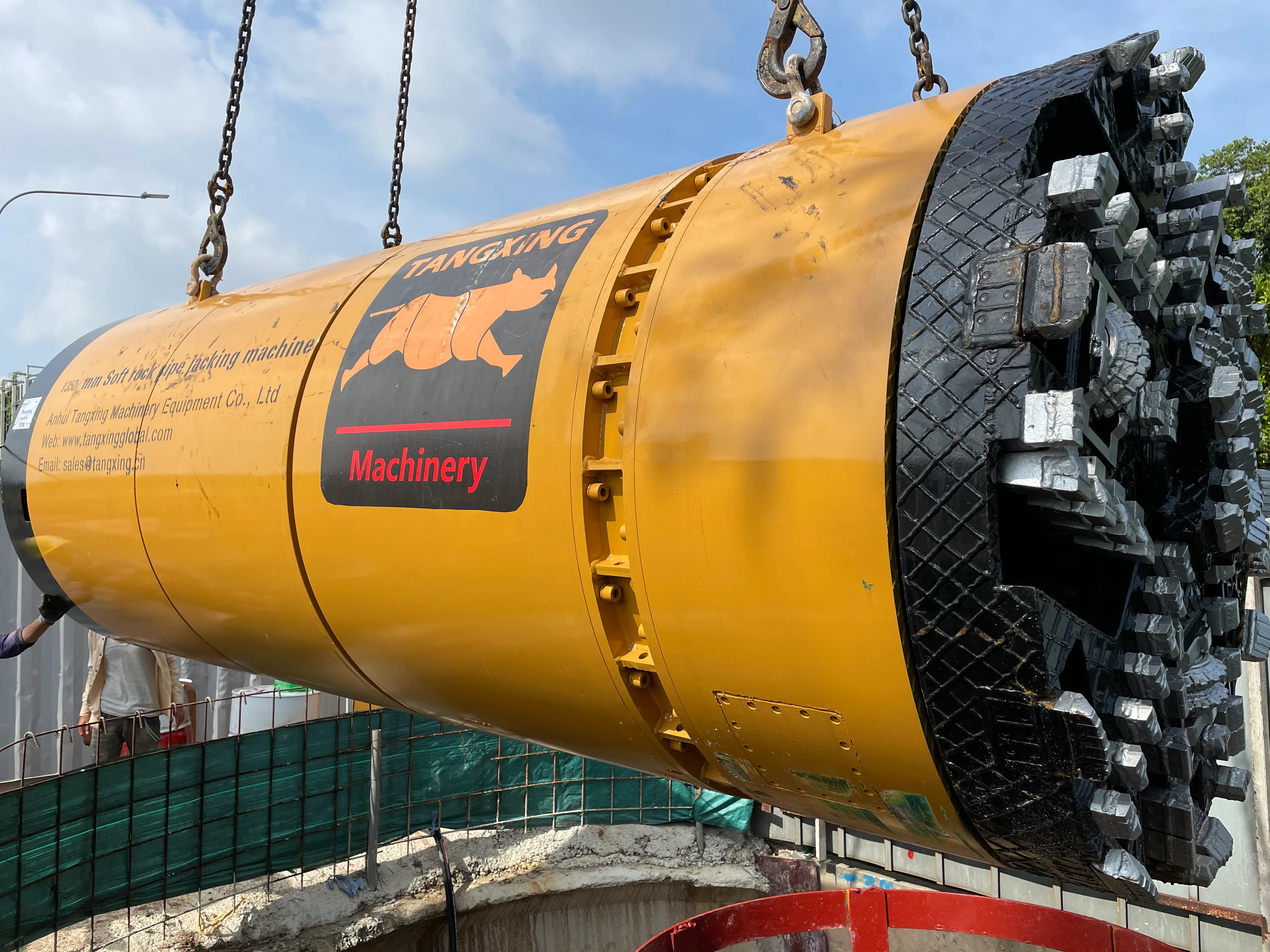

Yaw Control Keeps the TBM Machine Productive Under Stress
Maintaining Alignment and Reducing Downtime
You want your tunnel boring machine to stay on track. Yaw control helps you do this. The system checks the angle of the TBM machine every second. It sends updates to your team. You can make quick changes if the machine starts to drift. This keeps the tunnel straight and matches the plan. When you keep the TBM machine aligned, you avoid mistakes that cause delays.
You also reduce downtime. If the machine goes off course, you must stop and fix the problem. That takes time and costs money. Yaw control keeps the TBM machine productive under stress by helping you avoid these stops. You can dig longer without interruptions. This means you finish your tunnel faster.
Tip: Use yaw control to keep your project on schedule and avoid costly repairs.
Enhancing Stability and Safety
You want your workers to stay safe. Yaw control helps you protect them. The system keeps the TBM machine stable, even when the ground changes. It adjusts the machine’s direction in real time. This reduces the chance of sudden moves or shakes.
When you use yaw control, you also lower the stress on the machine. The cutting head does not have to work as hard. The parts last longer. You do not need to replace them as often. This makes your tunnel boring machine safer and more reliable.
Here are some key performance metrics that show how yaw control helps:
|
Metric |
Description |
|---|---|
|
Cutting Load |
The force the cutting head uses during operation. |
|
Load Fluctuation |
How much the cutting load changes, shown by the load variation coefficient. |
|
Cutting Specific Energy Consumption |
The energy needed to cut a unit of material, which shows how efficient the cutting is. |
When you keep these numbers steady, you get a safer and more efficient tunnel machine.
Real-World Productivity Gains
You can see the benefits of yaw control in real projects. In Saudi Arabia, CEGC supported a metro tunnel project that faced soft clay and hard rock. The team used yaw control to keep the TBM machine on the planned path. They finished the tunnel two months ahead of schedule. The project saved money because there were fewer delays and less machine wear.
In Southeast Asia, a water supply tunnel used CEGC’s engineering support and yaw control system. The TBM machine worked through many curves and changes in the ground. The team saw a 15% increase in advance rate. They also had fewer stops for repairs.
Yaw control keeps the TBM machine productive under stress in every project. You get better alignment, less downtime, and safer working conditions. You also save money and finish your tunnels faster. CEGC’s support team helps you use yaw control to solve real problems and reach your goals.
You use yaw control to help your tunnel project stay on track. Operators notice some clear benefits:
|
Benefit |
Description |
|---|---|
|
You can find problems early and stop surprise downtime. |
|
|
Hazard Mitigation |
You make the work safer for everyone on each shift. |
Here are some things coming in the future:
-
Tunnel guidance with AI will help dig smarter and faster.
-
New TBMs will be better for the environment and make less noise.
Check out CEGC’s TBM solutions to help your next project do better.
