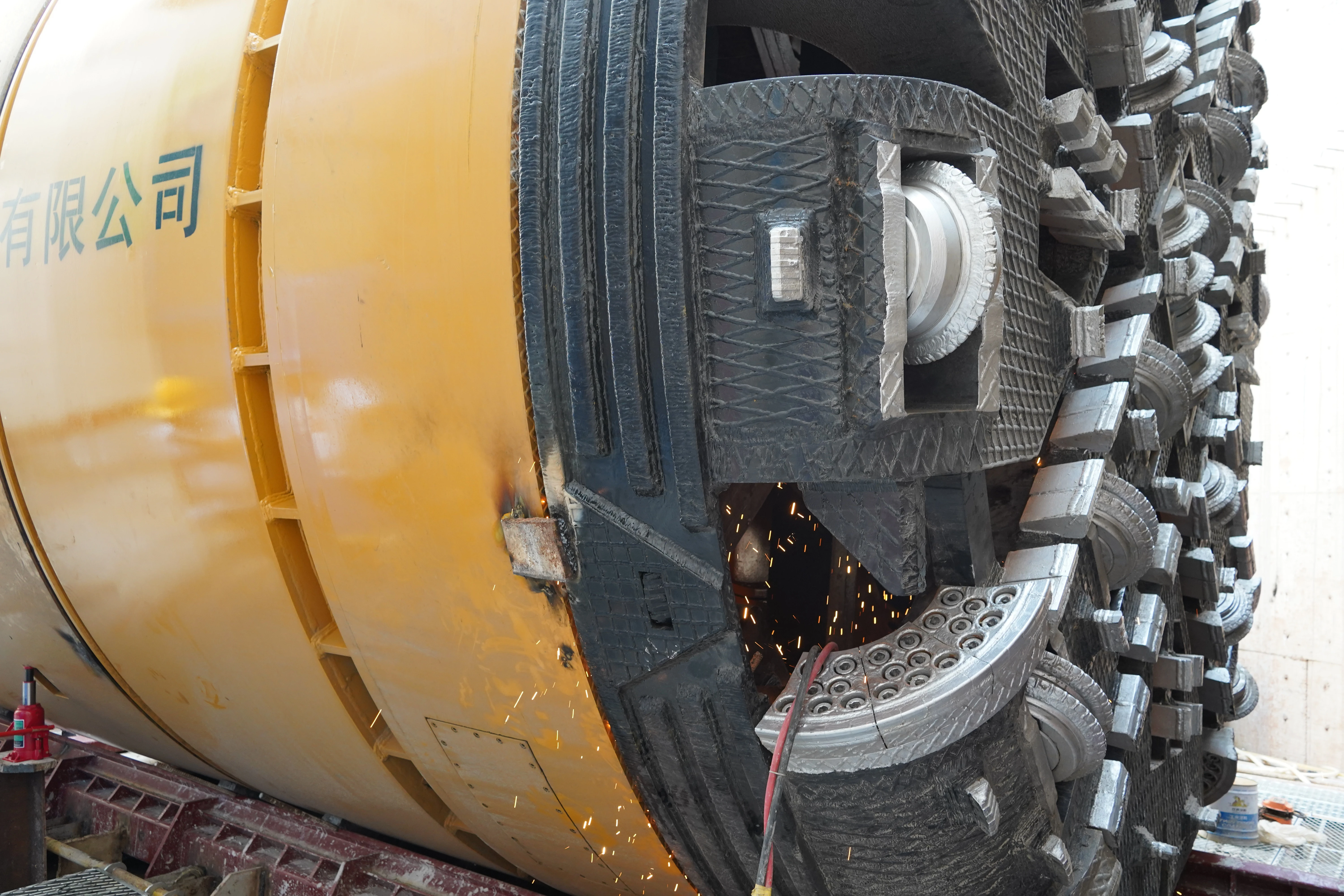

Coatings reduce restart failures on TBM machine drives by preventing corrosion, controlling abrasion, and managing heat on your tunnel boring machine. CEGC provides solutions that are effective for every TBM, microtunnelling, and auger boring machine. With our innovations, you can expect more time working, less time stopped, and improved results for your tunneling projects.
Key Takeaways
-
Coatings keep tunnel boring machines safe from rust and heat. They also stop wear. This means fewer restart failures. Machines last longer because of coatings.
-
It is important to check the cutterhead often. Ground stability checks are needed too. These checks help stop problems like mud build-up. Mud can cause delays and damage.
-
Polyurethane grouts work with coatings to make the ground stable. This helps machines recover faster after flooding. It also cuts down on downtime.
Restart failures and TBM pain points
What causes restart failures in TBM drives
Restart failures happen when the tunnel boring machine cannot start digging again after stopping. CEGC’s tunnel boring machine and microtunnelling machine solutions meet normal standards. They can also be changed for each project. Restart failures usually happen because mud builds up on the cutterhead, cutters get worn out, or the ground is not stable. You need to check the cutterhead for cutter wear and make sure the ground is stable before starting again. If you do not do these checks, the ground might sink or water might leak in. These problems can hurt the tunnel and buildings above it. Good monitoring systems help you watch machine data and ground conditions as you work.
-
You must do careful checks before restarting. Look at the cutterhead for cutter wear and check if the ground is stable.
-
If you skip these checks, the ground can sink or water can leak in.
-
Real-time monitoring systems help you follow restart rules and stop failures.
Impact of cutterhead mud build-up and wear
When mud builds up on the cutterhead, the cutters do not work as well and you lose more time. Mud build-up slows down digging and makes cutterhead-soil problems more likely. Cutters wear out faster when there is a lot of mud on the cutterhead. You see more mud build-up in soft or wet ground. The cutterhead load model shows that mud build-up makes the cutterhead work harder and not as well. Mud on the cutterhead also makes cutters wear out and makes fixing things harder. You need to clean mud off the cutterhead to keep it working well and stop cutters from wearing out. Mud build-up means you have to stop and fix things more often and lose more time.
|
Challenge |
Solution |
|---|---|
|
Managing groundwater levels |
Do pumping tests and study data to control water levels. |
|
Operating within tight spatial constraints |
Add more deepwell systems with electric drilling rigs for better control. |
|
Need for real-time monitoring of conditions |
Use a cloud-based monitoring system to react quickly to changes. |
You need to fix cutterhead mud build-up, cutter wear, and mud build-up effect to stop restart failures in tunnel boring machine drives. CEGC’s solutions help you handle cutterhead-soil interaction, cutterhead load model, and cutter performance so digging works well.

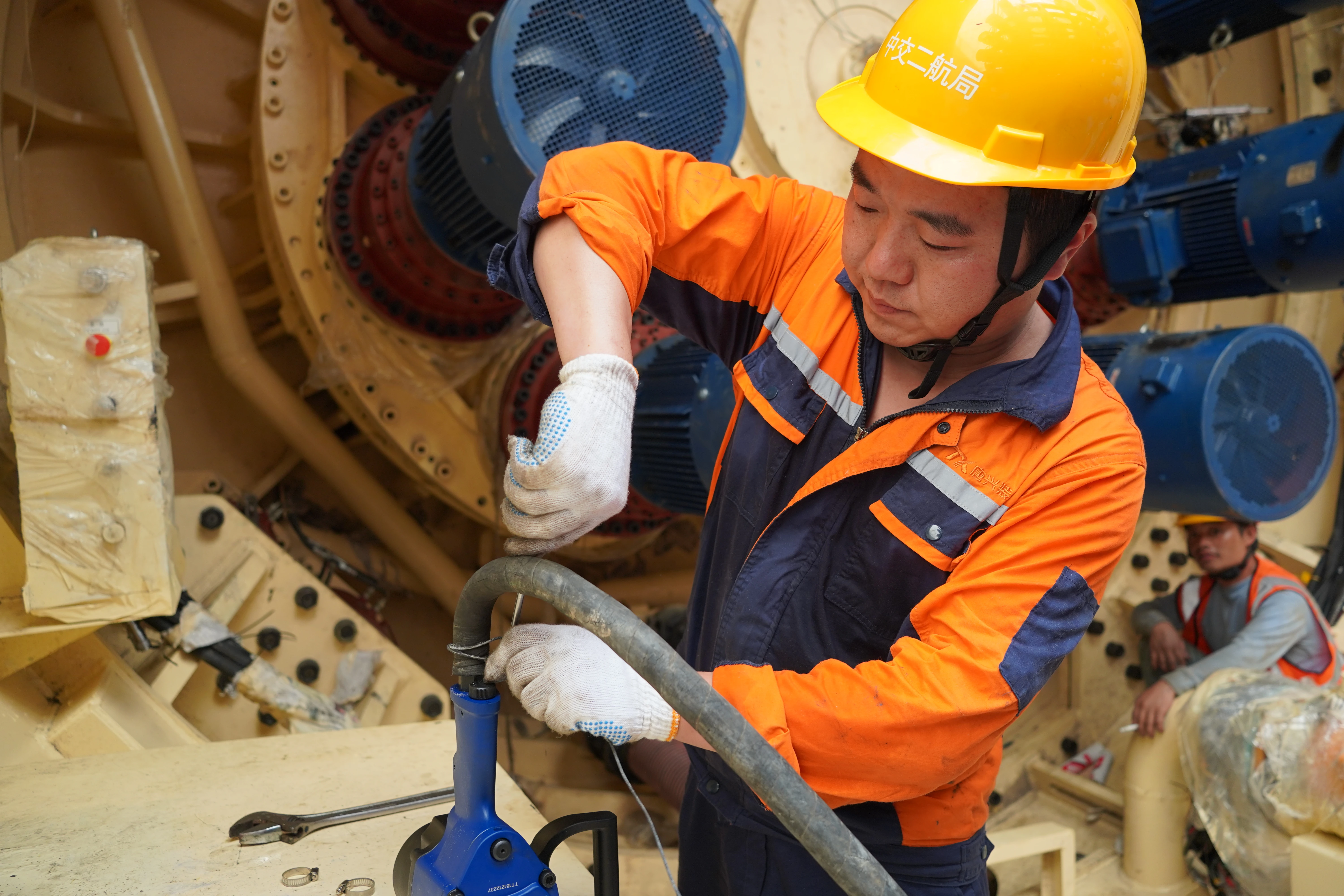

How coatings reduce restart failures on TBM machine drives
Mechanisms—corrosion, abrasion, and heat control
Running a tunnel boring machine is hard work. The cutter and cutterhead face tough conditions. Mud, water, and rough soil can hurt these parts. Coatings help stop restart failures on TBM machine drives. They protect the cutter and cutterhead from rust, wearing down, and getting too hot. You want your TBM to keep working without stopping. The right coating helps the cutter and cutterhead last longer and work better.
Coatings act like a shield. They block water and mud from touching the metal. This stops rust and keeps the cutter strong. Rough soil can wear down the cutter and cutterhead. Some coatings have tungsten carbide or ceramic particles. These make the surface harder. This means less damage and fewer repairs. Heat builds up when digging. Coatings help move heat away from the cutter and cutterhead. This keeps the TBM at the right temperature.
Tip: If you use coatings with nickel-based tungsten carbide powder, your cutter will resist wear and impacts. This helps it work well in hard or mixed ground.
Here is a table that shows how different coatings help your TBM:
|
Evidence Description |
Key Benefits |
|---|---|
|
Using nickel-based tungsten carbide powder as a coating for cutter rings |
High wear resistance and impact resistance, so it works well in different ground types |
|
Adding high-hardness tungsten carbide (WC) ceramic particles |
Less wear from rough soil, less damage, and longer cutter ring life |
|
Plasma cladding technology for putting on coatings |
Saves money, lets you control layer thickness, and uses material well |
When you use these coatings, you protect the cutter and cutterhead from mud and soil. Your TBM can work longer before stopping. You spend less time fixing things and more time digging.
Coatings, polyurethane grouts, and CEGC solutions
You need more than coatings to keep your tunnel boring machine running. Polyurethane resin grouts help make the ground around the TBM stable. If the ground is weak or water comes in, you can inject resin grout. This fills gaps and stops water. You can get your TBM working again faster and avoid long waits.
-
Polyurethane resin grouts make flooded shafts stable. You can start pumping and get your TBM back sooner if the ground is weak.
-
You can use resin injection in places like shafts near roads or in wet ground. This helps you recover from flooding.
-
Resin injection cuts down on lost time and lost work. You save money and keep your project moving.
CEGC gives you technical solutions for your project. You can pick coatings and grouts based on the ground you have. If you work in soft, muddy ground, you need a coating that stops rust and wear. If you work in hard rock, you need a coating that handles hits and heat. CEGC lets you change your TBM, cutter, and cutterhead for each job. You get good performance and options for your project.
You see real benefits when you use coatings and CEGC solutions. You increase the time between repairs. You have less downtime. Your TBM works longer without stopping. You finish digging faster and save money. Here is a table that shows the benefits:
|
Benefit |
Description |
|---|---|
|
Reduced Downtime |
Following restart rules means fewer stops and more work time. |
|
Improved Project Efficiency |
You can work up to 30% faster and save money. |
|
Increased Throughput |
Restart rules can help you dig up to 400% more, making your project better. |
You want your tunnel boring machine to work well. Coatings help stop restart failures by protecting the cutter and cutterhead from mud, water, and heat. Polyurethane grouts help with ground problems. CEGC gives you the right tools and choices for your project. You get more digging done, with fewer stops and lower costs.
Types of coatings and selection for TBM
Common coatings for TBM drives
You have many coating options for your tunnel boring machine. Each type protects the cutter and cutterhead from mud, water, and rough soil. Here are some common coatings you can use:
-
Advanced polymer coatings: These coatings form a tough layer on the cutter and cutterhead. They resist mud and water. You get less rust and longer life for your tunnel boring machine.
-
Ceramic coatings: These coatings use hard ceramic particles. They protect the cutter and cutterhead from wear. You see less damage from rough soil and mud.
-
Nickel-based tungsten carbide coatings: These coatings add a strong shield to the cutter and cutterhead. They help your tunnel boring machine work well in hard ground and mixed soil.
-
Plasma cladding coatings: This method puts a thick, even layer on the cutter and cutterhead. You get better protection from mud and heat.
You can use spraying robots for coating application. The PJR-D spraying robot uses a hydraulic arm for precise movement. KUKA AG’s robot controls the spray volume and position for even coverage. MEYCO’s wet spraying trolley moves easily and sprays coatings quickly. These methods help you get a strong, even layer on every part of your tunnel boring machine.
Selection criteria and real-world results
You should choose coatings based on your project’s ground conditions and the type of mud you expect. If you work in soft, wet ground, pick a coating that blocks water and mud. For hard rock, use a coating that resists heat and impact. CEGC lets you customize your tunnel boring machine for each job. You can match the coating to your cutter and cutterhead needs.
Tip: Always check the ground and mud before you start. The right coating improves tbm excavation efficiency and keeps your tunnel boring machine running longer.
Projects using advanced coatings show fewer restart failures. You spend less on repairs and maintenance. Some projects report up to 30% less downtime. You finish excavation faster and save money. When you use the right coating, your tbm works better, and you get more value from your tunnel boring machine.
You improve tbm performance when you use coatings and CEGC’s solutions. You stop mud from causing restart failures. You keep mud away from the tbm cutterhead. You protect tbm parts from mud damage. You raise safety and tunneling safety. You lower mud risks. You save money. You trust tbm safety.
FAQ
What is the main benefit of using coatings on your tbm?
You protect your tbm from rust, wear, and heat. This helps your machine last longer and reduces the number of restart failures.
How do coatings improve tbm performance in tough ground?
You keep your tbm running smoothly by blocking mud and water. Coatings help your tbm handle hard or mixed ground with less damage and fewer repairs.
Can you customize coatings for your tbm project?
You can choose coatings that match your tbm and ground type. CEGC offers options for different soils, so your tbm works better on every job.
