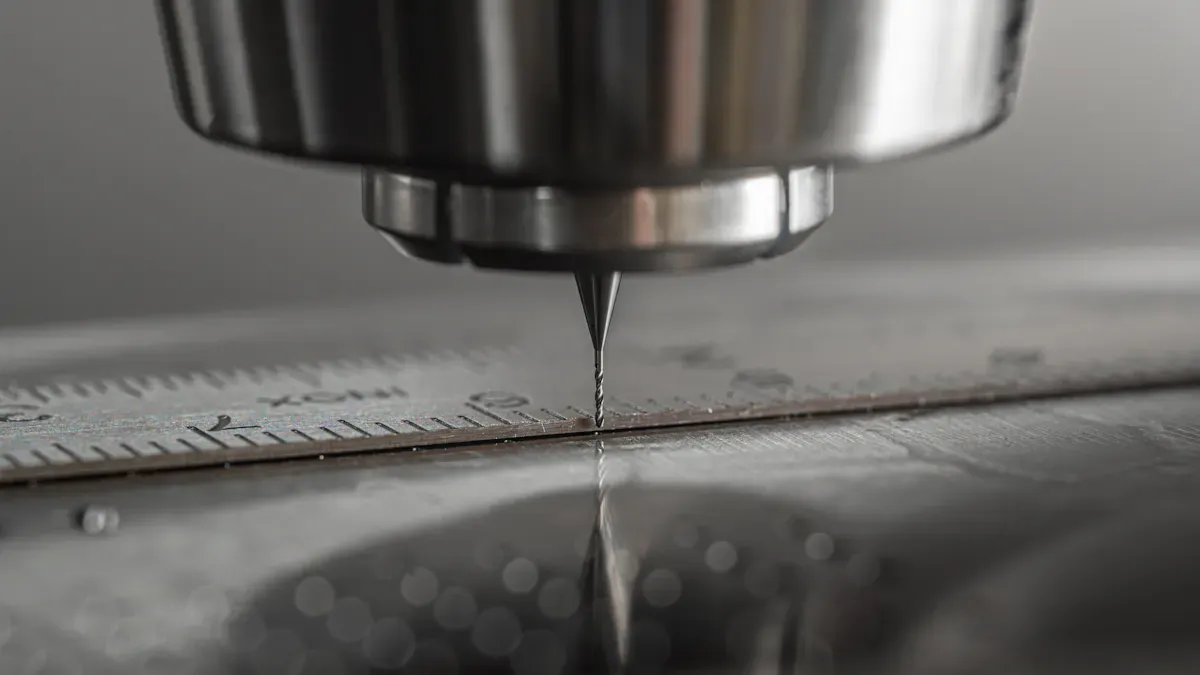

Achieving 0.2mm precision in micro hole machining is possible when you use Drilling Equipment 0.2mm Precision Never Misses and set up your workspace correctly. High-quality machines like those from CEGC ensure exceptional accuracy for demanding applications. By selecting the right drilling speeds and feeds, you can consistently achieve IT4–IT8 precision class in materials such as PEHD1000 and M980.
|
Material |
Cutting Speed (m/min) |
Feed per Tooth (mm/tooth) |
Precision Class (IT) |
|---|---|---|---|
|
PEHD1000 |
37 |
0.1–0.2 |
IT6–IT8 |
|
POM-C |
N/A |
0.4 |
IT5–IT7 |
|
M980 |
N/A |
0.2 |
IT4–IT6 |
CEGC’s Drilling Equipment 0.2mm Precision Never Misses delivers reliable, repeatable results, making it the ideal choice for B2B contractors who require precision they can count on.
Key Takeaways
-
You can get 0.2mm precision if you use good drilling equipment and set up your workspace the right way. - Pick the correct drill bits and change spindle speeds to keep holes very exact in micro hole machining. - Check your machines often and keep your work area clean to make sure your results stay the same and are always accurate.
Essential Drilling Equipment For 0.2mm Precision
Micro Hole Machining Tools And Machines
You need special machines for micro hole machining. CNC machines with fast spindles help you get tight tolerances. These machines can do micro drilling and keep the workpiece steady. They also cut down on vibration. Pick machines with strong feed beams and good rotation and feed systems. This setup helps you drill straight and accurate holes. Micro hole machining needs extra tools like precision vises and micro coolant systems. These tools keep the area clean and cool. They protect your micro drill bits and help keep tolerances tight.
Drill Bits For Precision Holes
You must pick the right drill bits for micro hole machining. Tungsten carbide drill bits are good for high-precision holes. They stay sharp and do not wear out fast. Diamond-coated drill bits are best for hard materials and last longer. Match your drill bit to the material and speed for micro hole machining. This helps you keep size tolerances and accuracy. Micro hole machining in aerospace and medical fields needs tight tolerances, like ±0.005mm. The chart below shows how different industries set their tolerances for micro holes.
CEGC Surface Drilling Rig Features
CEGC has surface drilling rigs that help with micro hole machining. These rigs give market-standard performance. You can change these rigs for your project. The strong feed beam and guidance system help you drill straight micro holes. Good rotation and feed coordination let you match the drilling method to the ground or material. CEGC rigs work with many tools for micro hole machining jobs. You can use these rigs for CNC machining, micro drilling, and other precision work. The table below shows some cost factors to think about when using advanced drilling equipment for micro hole machining.
|
Cost Factor |
Description |
|---|---|
|
Precision Equipment |
High-precision machines are needed for smaller drill sizes, so costs go up. |
|
Tool Wear and Replacement |
Smaller drill bits wear out faster, so you need more replacements and costs rise. |
|
Slower Production Times |
Smaller holes need slower drilling speeds, so machine time and labor costs go up. |
|
Higher Defect Rates |
Smaller holes can have more defects, so you need more rework and costs rise. |
Micro hole machining with CEGC equipment gives you accuracy and reliability. You can get tight tolerances and small-diameter holes. You can do successful micro hole machining in many industries, like aerospace and medical device manufacturing.
Setup And Techniques For Drilling Equipment 0.2mm Precision Never Misses
Calibration And Positioning For Precision Holes
You need to start each micro hole machining job with careful calibration. This step makes sure your drilling equipment 0.2mm precision never misses. First, check your CNC machine’s positioning system. Calibrate optical sensors and lasers often to keep accuracy high. Do these checks every month to stop drift and keep tolerances tight. Hold your workpiece in a precision vise. This keeps it from moving and helps your holes stay in the right spot.
Environmental controls are important for micro hole machining. You should:
-
Control dielectric fluids to keep conditions steady.
-
Use good grounding to stop electrical problems.
-
Add filtration systems to keep machining clean and precise.
Accurate positioning is needed for high-precision jobs. CEGC rigs have a strong frame and guide alignment system. This design keeps your micro hole machining on track. It helps you get tight tolerances for 0.2 micron-sized holes. You can count on these features to give you good results, even when it is hard to drill.
Spindle Speed, Feed Rate, And Lubrication
You must set the right spindle speed and feed rate for drilling equipment 0.2mm precision never misses. For 0.2 micron-sized holes, use spindle speeds from 10,000 to 60,000 RPM. This range helps with micro hole machining and keeps your CNC machine working well. Keep feed rates low to stop tool breakage and hold size tolerances. Change your settings for the material and the size of your small-diameter holes.
Lubrication is important for precision and tool life. The best way for micro hole machining is Minimum Quantity Lubrication (MQL). MQL gives you:
-
Longer tool life and better machining quality.
-
Good lubrication at high spindle speeds.
-
Longer chips, so micro drilling is smoother.
Internal MQL works well for 0.2 micron-sized holes. It keeps your drill bits cool and stops them from wearing out fast. This method helps you get tight tolerances and meet high-precision needs every time.
Operator Handling And Error Prevention
You are important for making sure drilling equipment 0.2mm precision never misses. Good operator handling lowers mistakes and keeps your results the same. Use CNC machining to automate your process. This step cuts down on errors and helps you meet strict tolerances for micro hole machining.
The table below shows how good operator skills help your results:
|
Benefit |
Description |
|---|---|
|
Positional accuracy |
Gets tolerances of ±0.01mm or better, checked by CMM inspection. |
|
Diameter consistency |
Keeps hole diameters within H7 tolerance for all runs. |
|
Surface finish |
Gets Ra 1.6–3.2 µm without extra steps; reaming can reach Ra 0.4 µm. |
|
Reduced labor |
One operator can watch many CNC machines, so labor costs go down. |
|
Lower scrap rates |
Scrap rates drop by 30–60% compared to manual drilling because parameters stay the same. |
|
Scalability |
The same G-code program works for both test parts and big production runs. |
|
Traceability |
CNC controllers save cycle data for ISO 9001:2015 rules. |
CEGC surface drilling rigs help you with easy setup and fine-control hydraulics. These features keep the frame stable and cut down on vibration. You can focus on precision machining and meet high-precision needs. If you follow these steps, you will do well with micro hole machining every time.
Tip: Always write down your calibration and setup steps. This habit helps you repeat your best results and meet industry standards for precision holes.

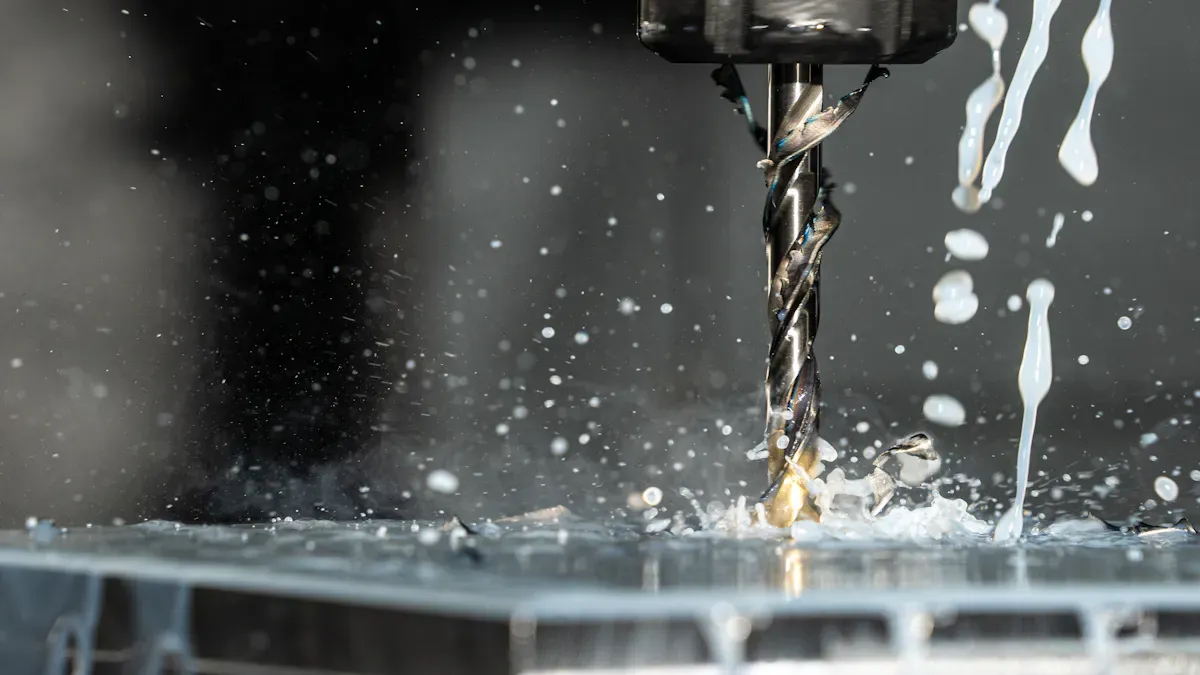

Quality Control And Troubleshooting In Micro Hole Machining
Measuring 0.2 Micron-Sized Holes
You need special tools to measure 0.2 micron-sized holes. Pin gauges and plug gauges help you check size tolerances. Pin gauges are good for checking sizes in the workshop. Plug gauges are strong and can be used many times. Laser alignment systems, like Smile400 or NC4, measure with 1 μm accuracy. These systems help you keep tight tolerances in micro hole machining.
|
Tool Type |
Description |
Accuracy |
|---|---|---|
|
Pin Gauge |
Used for measuring diameters, available in sets for various sizes. |
Up to 3 decimal places |
|
Plug Gauge |
A circular hole measuring tool with high accuracy for mechanical processing. |
High accuracy |
Inspection Methods For Precision Holes
You need good inspection methods for micro hole machining. Plug gauges give fast checks for drilled holes. Telescoping bore gauges help you check tolerances with practice. Tubular ID micrometers measure many small holes and are very accurate. Dial bore gauges check roundness and size, reaching 2.5 micron accuracy. These methods help you inspect precision holes and keep your machining accurate.
|
Inspection Method |
Description |
Accuracy Level |
|---|---|---|
|
Plug Gauges |
Fastest way to ensure a hole is the correct size without form inspection. |
Efficient for in-spec checks |
|
Telescoping Bore Gauges |
Cost-effective for checking moderately tight tolerances with practice. |
Moderate accuracy |
|
Tubular ID Micrometers |
Covers a wide range of diameters, accurate to about 25 microns. |
High accuracy |
|
Dial Bore Gauges |
Checks size and assesses roundness, accurate to 2.5 microns. |
Very high accuracy |
Common Pitfalls And Solutions
You may have misalignment, tool wear, or vibration problems. Misalignment happens if you use the wrong reference tool in cnc machining. Even small mistakes can change hole sizes and tolerances. Tool wear can make holes too big and lower precision. Check for signs of wear and watch spindle load during cnc machining. Vibration can hurt micro hole machining results. Use rigid tools, short overhangs, and strong clamping to stop vibration. CEGC’s wear management system uses real-time monitoring and predictive maintenance. This keeps your drilling equipment working well. Clean chips every day, check coolant, and inspect important dimensions after machining. These steps help you get good micro hole machining and keep tight tolerances.
Tip: Always keep your work area clean and follow a maintenance schedule. This habit helps you get consistent results in micro hole machining.
-
You can get 0.2mm precision with special drilling equipment. Follow careful steps to set up your tools the right way. Always check if your holes are the right size. Measure each hole to make sure it is accurate. Precision is important for every job you do. Pick CEGC if you want equipment you can trust. They also give you good support. Try these tips to make your work better.
FAQ
What makes CEGC drilling equipment good for 0.2mm precision?
The frame is strong and does not move much. You can control the feed very well. The setup is simple and fast. These things help you make tiny holes that are always very accurate.
How do you prevent tool wear in micro hole machining?
Pick the right drill bits for your job. Set the speed and feed to the best numbers. Use enough lubrication to keep things cool. CEGC rigs help you watch for tool wear and make fixing tools easy.
Can you use CEGC surface drilling rigs for different materials?
Yes, you can change the rig for many materials. CEGC lets you use different tools and set up the rig for your project.
