Guidance stability can boost TBM tunnel daily output when you choose CEGC solutions. The advanced guidance system in a tunnel boring machine from CEGC ensures your line and grade remain accurate, maximizing machine utilization and performance. This not only improves operational efficiency but also supports tunnel stability checks for every TBM tunnel boring machine project.
Key Takeaways
-
Guidance stability helps your tunnel boring machine stay on track. It lowers mistakes and downtime. This makes the project finish faster. It also saves money.
-
Advanced guidance systems make your TBM more accurate and faster. They can boost daily output by up to 13.6%. This helps you reach your project goals more often.
-
CEGC gives custom solutions and expert help to improve guidance stability. This makes sure your TBM works well and efficiently during the whole tunneling process.
Guidance Stability and TBM Tunnelling Performance
What Is Guidance Stability in TBM?
Guidance stability helps your tunnel boring machine stay on track. In microtunnelling and TBM projects, this means the machine follows the planned path. Remote-controlled systems with advanced technology make this possible.
-
Laser or gyroscopic controls help keep the machine lined up.
-
Real-time changes help the tunnel boring machine move the right way.
-
You can keep the path within about 1 inch of the plan.
-
Frequent checks help you make sure the machine is not off course.
Role in Tunnel Alignment and Output
Laser guidance systems are important in tunnel building today. These systems shine a laser along the tunnel’s planned route. Sensors on the tbm find the laser and give you instant feedback. You can quickly fix the machine’s direction if needed. This keeps the path very accurate, even for long tunnels. For longer tunnels, better navigation systems help steer the machine. You also watch the ground as you dig. This lets you change how you work and keep the tbm on track. Keeping guidance stability helps the tbm work better and stops expensive mistakes.
CEGC Guidance System Features
CEGC gives you technical solutions for guidance stability and strong tbm performance.
|
Service Type |
Description |
|---|---|
|
You get special equipment for tunnelling, port, and mining jobs. |
|
|
Service Consulting |
You get expert help with planning, picking equipment, and making things better. |
|
Trenchless Support |
You get engineering help for HDD, pipe jacking, and microtunnelling work. |
|
Training |
You and your team can learn about using, fixing, and caring for equipment. |
You can trust CEGC’s guidance systems to lower alignment mistakes and overcut risk. These features help you get the same good results and raise your daily output.
How Guidance Stability Can Boost TBM Tunnel Daily Output
Reducing Downtime and Corrections
You want your tunnel boring machine to keep working. Guidance stability helps you avoid mistakes that stop the TBM. When your TBM stays on the right path, you do not need to stop for fixes. This saves time and helps your team keep working. A good guidance system uses geodetic methods to guide your TBM. This means fewer errors and your project keeps moving. You do not waste time fixing problems with alignment. You also lower the chance of accidents, so there are fewer delays.
-
You spend less time fixing mistakes.
-
You do not pay for expensive repairs.
-
You keep your project on schedule.
-
You lower the risk of surface settlement claims.
Improving Accuracy and Advance Rates
Guidance stability helps your TBM be more accurate and faster. When your TBM follows the plan, it can dig faster. You can reach your daily goals more often. The TBM does not go off track, so you do not need to slow down for checks. You get a smoother tunnel and better segment placement. This lets you dig faster and keep your speed steady.

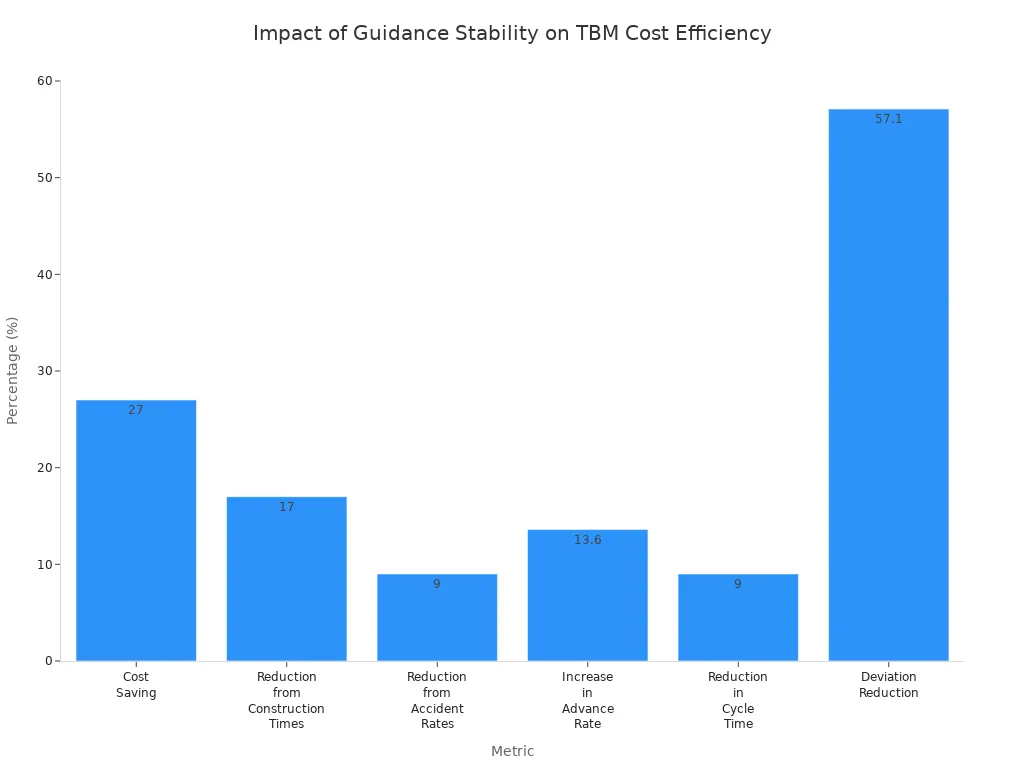

Guidance stability makes a big difference in how well you work. Projects with good guidance see:
-
Advance rate goes up by 13.6%.
-
Cycle time goes down by 9%.
-
Deviation from the plan drops by 57.1%.
You can see that guidance stability helps you finish your tunnel faster.
Minimizing Rework and Maintenance
You do not want to do the same work twice. Guidance stability helps you avoid rework and extra maintenance. When your TBM stays on line and grade, you do not need to fix mistakes. Your equipment also lasts longer. A strong guidance system means fewer breakdowns and less repair time.
-
You use a geodetic network to guide your TBM.
-
You have less downtime and fewer mistakes.
-
You do not need as much maintenance.
-
You keep your project costs low.
CEGC’s Market-Standard Specs and Customization
CEGC gives you guidance systems that meet market standards. You can also ask for custom features for your project. The table below shows what you get with a CEGC TBM or Microtunnelling Machine:
|
Specification |
Description |
|---|---|
|
Positive Face Support |
Supports all types of TBM and Microtunnelling Machine. |
|
Controlled Sheeting |
Keeps alignment within ±1 inch of the plan, up and down or side to side. |
|
Remote Control |
Lets you control everything from the surface. |
|
Rotation Control |
Controls how the cutter head turns. |
|
Lubrication |
Puts lubricant around the pipe for smooth jacking. |
|
Heave and Settlement |
Controls ground movement to stay within contract rules. |
|
Deviation Monitoring |
Watches for changes from the planned line and grade using a laser. |
|
Grade and Roll |
Checks the grade and roll of your TBM. |
|
Jacking Load |
Shows the jacking load right away. |
|
Torque and RPM |
Shows torque and RPM of the cutter head. |
|
Instantaneous Jacking Rate |
Shows how fast and far you are jacking. |
|
Steering Direction |
Tells you which way you are steering. |
|
Slurry Flow |
Checks slurry flow both ways. |
|
Slurry Bypass Valve |
Shows where the bypass valve is. |
|
Slurry Pressure |
Shows the pressure in the slurry chamber. |
You can trust CEGC to give you guidance stability that helps your TBM work better. You get good performance, faster digging, and you can change your TBM for your project.
Strategies for Maximizing TBM Performance
Achieving Guidance Stability
You can get guidance stability by changing how you build. First, watch the cutterhead torque and pressure. Change the screw conveyor speed and soil conditioning injection to keep the tunnel face steady. Use feedback from guidance systems to fix problems fast. Put segmental lining in right after digging to help the tunnel and keep work moving. Engineers check these things to make sure the tunnel is safe and steady.
-
Dig with a rotating cutterhead and take out soil quickly.
-
Keep pressure balanced in the chamber for earth and water.
-
Add soil conditioning agents to lower friction and keep soil steady.
-
Put tunnel lining segments in for support right away.
-
Watch and change construction settings for the best outcome.
Technical Solutions and Customization
You can use CEGC’s technical solutions to make building easier. CEGC gives you custom equipment, consulting, jobsite assembly, trenchless support, and training. These services fit your project needs. Changing construction settings lets you match guidance systems to your tunnel. You get equipment that works for your site and helps guidance stability.
Best Practices for TBM Operations
You face many problems in TBM operations. Borehole collapse, ground movement, and too much soil erosion can hurt guidance stability. Changing construction settings helps you fix these problems. You should find utilities before digging and use utility potholing to stop accidents. Training programs like TBMOPA conventions and SIMCOM courses teach you how to make guidance stability better. Training helps your team learn new things and keeps work safe and steady.
|
Challenge |
Description |
|---|---|
|
Borehole Collapse |
Collapse risk in granular soils and gravels. |
|
Ground Movement |
Must be managed in midi- and maxi-HDD applications. |
|
Excess Soil Erosion |
High drilling fluid flow can erode soil and create voids. |
|
Drilling Fluid Pressure |
Can cause soil heaving and seepage in shallow cover. |
|
Torque and Thrust Issues |
Excess torque and thrust can lead to drill stem failure. |
Tip: Change construction settings to keep your tunnel machine on track and make building faster.
You can see that guidance stability helps TBM tunnel output go up. Keeping the tunnel face stable stops the ground from moving too much. This also makes work faster and smoother. CEGC gives you special solutions and choices to help your machine work more. You have less downtime and get more done.
-
Expert advice, help with setup, trenchless support, training, and real parts keep your tunnel machine working well.
|
Key Point |
Description |
|---|---|
|
Excavation Face Stability |
Keeping the face steady is very important for all RTBMs when digging underground. |
|
Mechanical Performance Impact |
How well RTBMs work changes face stability, and this can be different for each project. |
|
Need for Re-evaluation |
You must check the face and RTBM again before you make a new design. |
Always make guidance stability the most important thing for every tunnel boring machine job.
FAQ
What is guidance stability in a tunnel boring machine?
Guidance stability means your tunnel machine stays on the right path. It helps you make fewer mistakes. You can finish your tunnel faster and easier.
How does CEGC’s guidance system improve daily tunnel output?
CEGC’s guidance system helps your tunnel machine work more. The system lets you dig quicker and keeps your machine on track. You do not waste time fixing errors.
Can you customize guidance systems for different tunnel projects?
You can get a custom guidance system from CEGC. The team makes sure your equipment fits your project. They help you reach your goals for each tunnel.
