Hole Drilling Tool 0.05mm Precision Beats Miss

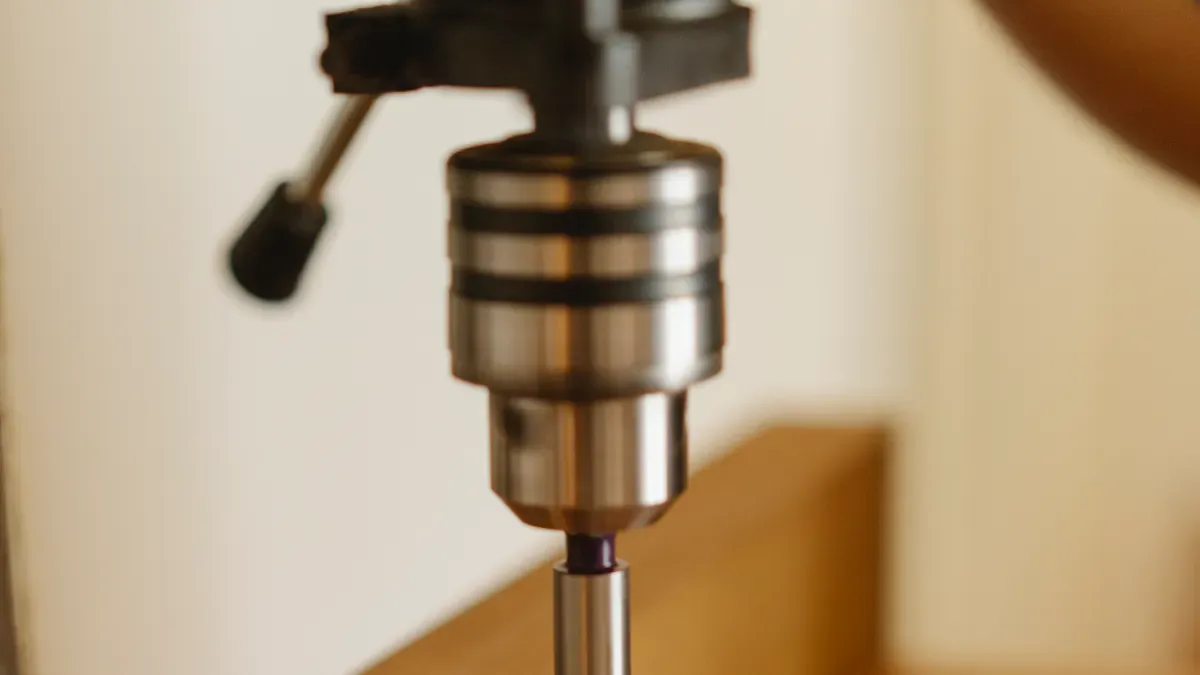

You have a tough job when you need a hole drilling tool 0.05mm precision beats miss. Even tiny mistakes can mess up accuracy. You must watch accuracy at every step. Accuracy depends on your setup, tool, and even shaking. The table below shows what can hurt accuracy and why your hole drilling tool 0.05mm precision beats miss is important.

When you use CEGC or regular drilling equipment, your hole drilling tool 0.05mm precision beats miss helps you keep accuracy high. Good accuracy helps your project win.

Key Takeaways

• Pick the correct tools for 0.05mm precision. CEGC drilling equipment gives good accuracy and fewer mistakes.

• Always look over your setup before you drill. Small mistakes in lining up or measuring can cause big trouble.

• Keep your workspace clean and use good drill bits. This stops mistakes and makes sure holes are precise.

Precision Tools and Setup for 0.05mm Holes

Choosing the Right Hole Drilling Tool

You need the right tool to drill with 0.05mm precision. CEGC and other drilling rigs help you get this accuracy. These machines use smart technology to keep holes the right size. The table below shows tools that can drill this small:

You can use these tools for many jobs. They work for PCB drilling, medical parts, and aerospace pieces. Each tool keeps holes the right size. This helps you avoid mistakes and extra work.

Measurement and Positioning for Precision Holes

You must measure and place your workpiece very carefully. Rigid mast and guide alignment are important for accuracy. A strong frame stops shaking and keeps the drill straight. Fine-control hydraulics let you change speed and force for better drilling. Here is how rigidity helps with accuracy:

• Rigid systems in CEGC drilling equipment help you get 0.05mm precision.

• Guide alignment keeps the drill on target and lowers errors.

• Calibration fixes small setup mistakes and makes accuracy better.

You also need good tools to measure holes. The table below shows which tools are best for checking drilled holes:

You should use digital calipers or vernier calipers for checking small holes. These tools give you the accuracy you need for tight sizes.

Workholding and Stability Solutions

You must keep your workpiece still when drilling. Good workholding stops shaking and movement. This keeps holes the right size. CEGC drilling rigs use strong beams and steady platforms for precision. CNC machines and drill guides also help you get 0.05mm precision. The table below compares drilling methods:

CNC machines use automatic controls to lower mistakes. They keep feed rates steady for even holes. Special tools keep hole sizes tight. You can trust these machines to give the same results every time.

Sometimes, drilling is hard because of the site. Old machines may not hold tight sizes. Material changes can make the drill move off track. Bad alignment in layers can cause wrong depths. CEGC drilling equipment can fix these problems. It gives you custom options and good performance.

You should also know about industry rules for precision drilling. The table below lists some important certifications:

You can trust tools and processes with these standards to make precise holes.

Tip: Always check your setup before drilling. A small mistake in alignment or measuring can cause big problems with holes.

You can beat miss and keep your project going by using the right tools, careful measuring, and steady workholding. CEGC drilling equipment helps you get 0.05mm precision, even on hard jobs.

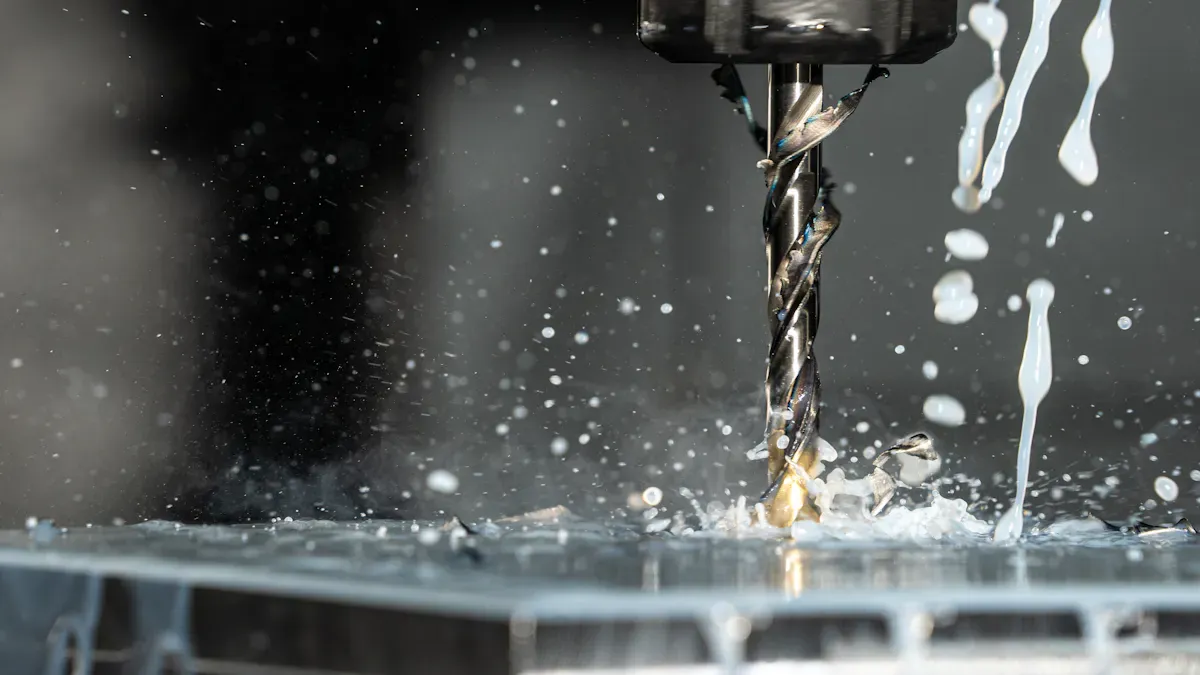

Step-by-Step Drilling Process and Error Prevention

Workspace and Material Preparation

You need a clean workspace for good precision. Dust and dirt can cause drilling mistakes. Always use high-quality drill bits and a drill press. These tools help you make accurate holes. When you work with tough materials, learn about their properties. Cobalt-containing HSS works well for stainless steel. Solid cemented carbide is best for very hard pieces. Powder metallurgy HSS is great for aerospace and medical parts. The table below shows how different materials change drilling:

Always clean holes with compressed air after drilling. This step removes chips and keeps the area clear. To avoid mistakes, check your materials and tools before you start.

Setting Up for Precision Drilling

Set up your drilling equipment with care. Use special fixtures to hold your workpiece tight. This stops shaking and keeps holes straight. Always check your alignment before you drill. Pick the right drill bit for your material and depth. Cooling systems stop overheating and keep your drill sharp.

The table below lists best setup tips:

Calibrate your drilling equipment often. Regular maintenance keeps your machine working well. Set up a service schedule to keep your equipment in top shape. Software updates and calibration routines help you stay precise.

Executing the Drilling Process

Follow each step carefully for 0.05mm precision. Mark the spot for your holes first. Use a center punch to make a small dent. This helps your drill stay on target. Tools like V-blocks and center drills help with alignment. Use drill bits with a diameter tolerance of ±0.01 mm. Set spindle speed between 150,000 and 200,000 RPM. Feed rates should be 0.05 to 0.15 m/min.

Try peck drilling for better results. This method drills in small steps, about 0.1 to 0.3 mm deep. It helps remove chips and keeps the drill cool. Entry films made of aluminum or polyester help drills start clean. Backup boards catch burrs when the drill exits. Watch drilling parameters with force sensors. These sensors help you make changes right away.

Use lubrication and cooling during drilling. These steps keep your tool sharp and make it last longer. Changing the shape of your micro tool can make it last over 40% longer. This is important for long drilling jobs.

Avoiding Common Mistakes and Ensuring Consistency

You can avoid many mistakes by using good habits. The table below shows common errors and how to fix them:

Always check your holes after drilling. Look for position, size, and roundness. Make sure the barrel wall is smooth and there are no breakouts. Check for resin smear and other problems. Use advanced equipment for quality control. Follow ISO9001:2015 standards and check during drilling. Your QC team should inspect every batch before delivery.

You can cut vibration and noise by using CEGC drilling equipment. Micro tunneling can lower vibration by 85%. This helps you drill safely and with high precision. Advanced guidance systems in CEGC machines also stop surface damage.

PCB Drilling and Special Applications

PCB drilling needs extra care. Use advanced pcb drilling techniques for the best results. Microvias are tiny holes that connect layers in a pcb. Laser drilling is the best way to make microvias. Use high-precision drill bits and set the right parameters. If you use the wrong spindle depth or feed rate, drill bits can break. Always check your drill tip length for the pcb thickness.

The table below shows common pcb drilling problems and fixes:

Control important pcb drilling settings for the best results. Always use entry and backup boards to stop burrs. Watch your drilling in real time. Use force sensors and optical systems to keep holes accurate. Laser drilling is also used for high-density pcb and microvias. This method gives you clean, precise holes every time.

Follow design tips for better drilling. Keep your pcb layout simple and do not put holes too close. Use the right materials and check your machine calibration often. For special jobs like aerospace or medical devices, powder metallurgy HSS and laser drilling give you the best precision.

You can trust CEGC drilling equipment for all your high-precision jobs. These machines work for pcb drilling, microvias, and laser drilling. They help you drill accurately, even for tough jobs.

Tip: Always check your setup, tools, and settings before you start drilling. Small mistakes can cause big problems in pcb drilling.

You can get 0.05mm precision if you use the right tools. Set up your equipment carefully and keep your workpiece steady. CEGC equipment helps you drill holes with high accuracy. Advanced drilling tools make drilling faster and save money. You keep holes the same size and avoid mistakes. B2B contractors who care about precision get better results and fewer defects. The table below shows how different drilling methods help projects:

You can avoid expensive mistakes by checking holes and using the right process. You keep holes in the right place and follow strict rules. You can trust CEGC drilling equipment for all kinds of holes, like mining or PCB drilling. Use these steps to avoid misses and finish your project well.
