micro tunneling grout recipes must match soil types

You need to ensure that micro tunneling grout recipes must match soil types. This crucial step keeps your tunnel stable and prevents ground settlement. Choosing the wrong mix can lead to project delays and increased costs. CEGC assists you in comparing micro tunneling and open-cut options, enabling you to make the best decision for your project.

Key Takeaways

• You should always match micro tunneling grout recipes to soil types. This helps keep the tunnel stable and stops expensive repairs.

• Look at the soil properties before you pick grout. Knowing how water moves through soil and the size of grains helps you pick the best mix for your job.

• Using the right grout from the beginning saves time and money. It lowers the chance of delays and helps your project finish on time.

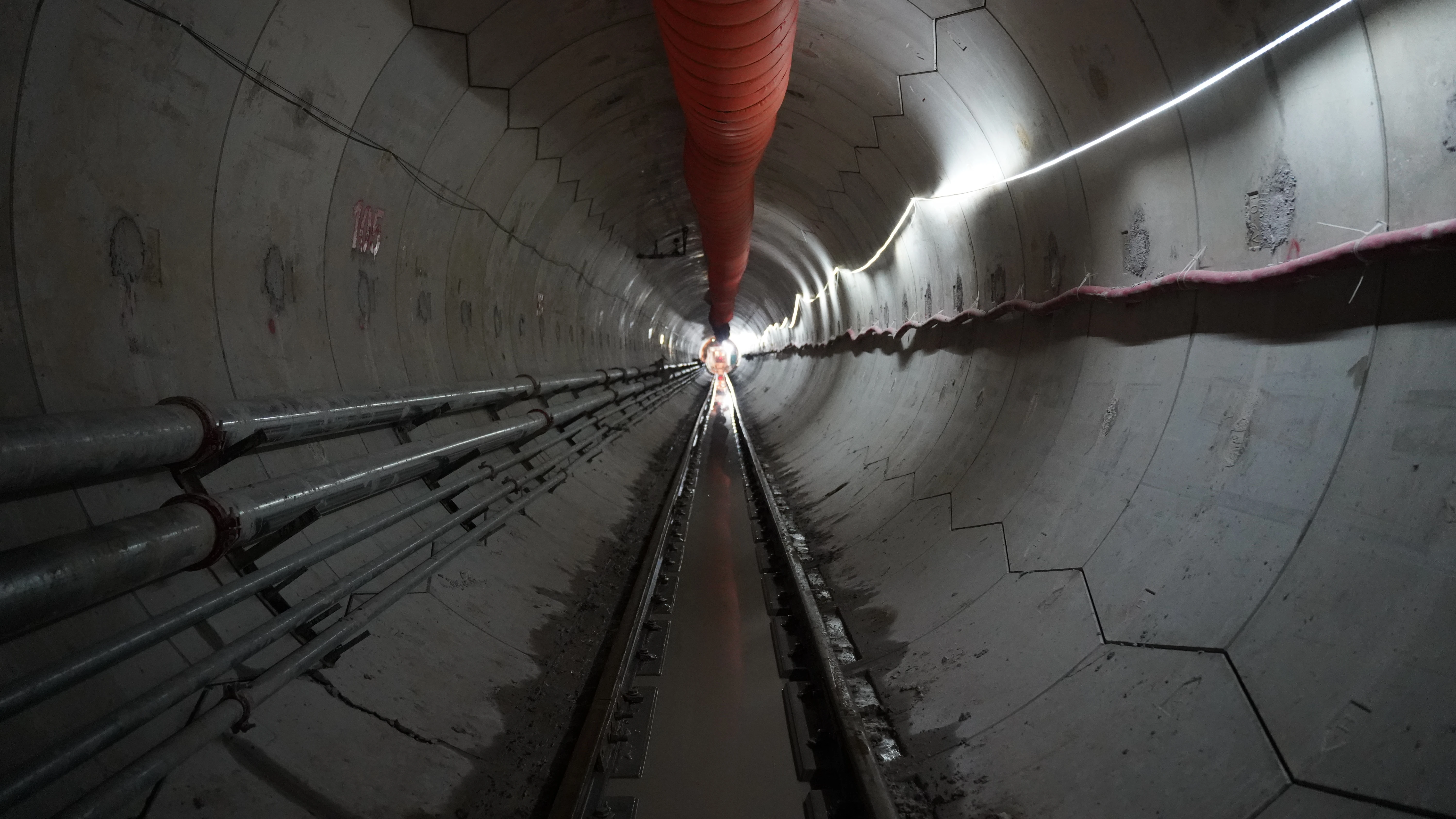

Risks of Mismatched Grout

Tunnel Instability and Settlement

When you use the wrong grout recipe for the soil, the tunnel can become unstable. The ground around the tunnel may shift or settle. This movement can cause cracks in the tunnel lining. Sometimes, the tunnel may even deform. If the grout does not fill all the spaces, small gaps can form. These gaps make the tunnel weaker and less safe. You need to match the grout to the soil to keep the tunnel strong and stable.

Cost and Schedule Impacts

Mismatched grout can lead to extra work and higher costs. If the tunnel settles or cracks, you may need to repair it. Repairs take time and money. Delays can affect the whole project schedule. You might have to stop work to fix problems. This can also increase labor and equipment costs. Choosing the right grout from the start helps you avoid these issues and keeps your project on track.

TBM Performance Issues

When grout does not match the soil, tunnel boring machines (TBMs) can face many problems:

• Blockages can form in the injection lines if the grout is too thick or does not flow well.

• Weak grout may not support the tunnel, leading to structural problems.

• Too much water in the grout can cause it to bleed, making the work messy and less effective.

• Cement particles may settle, causing the pipes to clog and pump pressure to rise.

• If the grout does not fill all spaces, small cavities can form. This can lead to more settlement or even cracks in the tunnel lining.

Tip: Always check the soil type before choosing your grout recipe. This step helps you avoid costly mistakes and keeps your TBM running smoothly.

micro tunneling grout recipes must match soil types

Soil Types and Grout Properties

You need to learn about the ground before you start. The soil can change fast along your pipeline route. If you do not match grout to soil, your project may be delayed. You could also spend more money. Micro tunneling grout recipes must match soil types for many reasons:

• The wrong grout can make the tunnel unstable.

• You might need expensive recovery if equipment does not fit the ground.

• The tunnel boring machine may stop if the soil changes, causing delays.

Different soils need different grout properties. Here is a simple table showing common soil types and grout properties to think about:

Sand and gravel let grout move easily. Clay and silt block grout movement. You need to pick grout that fits the soil’s permeability and grain size. For example, micro-fine cement or chemical grouts work in silts. Cementitious grouts are good for sand.

Industry rules say you must match your equipment and grout to the ground. Soft soils like clay and silt often need slurry-based systems. Dense soils may use earth pressure balance systems. Hard rock needs strong cutting tools and special grout mixes.

Practical Grout Selection Guide

Here are steps to help you pick the right grout:

You should always change grout volume and mix for the ground’s porosity and tunnel shape. For example, the cement slurry to sodium silicate ratio affects how well grout seals the ground. The size and density of grout aggregates matter too. Water pressure can change how grout moves and fills spaces.

Compaction grouting and cementitious grouts are strong choices for soil stabilization. Compaction grouting can make soil up to 70% stronger. It works well in loose fills and sands. Cementitious grouts give strong, waterproof results in many types of ground. Fly ash can be added to grout to help it pump better and last longer.

Note: Micro tunneling grout recipes must match soil types to keep your tunnel safe and your project on time. You can avoid expensive repairs and delays by following these steps.

You may wonder about the cost. Here is a table comparing costs for different methods:

Micro tunneling costs more at first. But it can save money by lowering risks and extra costs. CEGC’s Microtunnelling Machine solutions help you pick the best method. Micro tunneling grout recipes must match soil types if you want the best tunnel and soil results.

Matching grout recipes to soil types makes tunnels safer. It also helps your project succeed. Begin by studying the soil carefully. Different grout mixes can change how strong the soil is:

Work with suppliers to keep quality steady. Watch how grout works while tunneling. CEGC guides you to pick the best way and manage costs.

FAQ

Is micro tunneling always more expensive than open-cut excavation?

Micro tunneling can cost more at the start. But you might spend less later. This is because you avoid repairs and delays. You also skip extra costs from weak soil support.

What soil types need special grout recipes?

You have to look at each soil type. Clay, sand, and gravel all need their own grout mix. This helps keep the ground strong and stable.

How does grout help with soil stabilization?

Grout goes into spaces in the soil. It gives the tunnel better support. The ground moves less. This makes the project safer for everyone.
