Micro tunneling positioning can prevent utility clashes in urban tunneling projects by providing precise control over the tunnel path. With advanced guidance systems and real-time steering, micro tunneling positioning can prevent utility clashes and ensure the safety of workers while protecting existing underground infrastructure. CEGC offers micro tunnel boring machines specifically designed for trenchless construction, where micro tunneling positioning can prevent utility clashes across all types of trenchless applications. By allowing operators to accurately navigate around obstacles, micro tunneling positioning can prevent utility clashes and minimize the risk of damaging existing utilities. Utilizing CEGC’s microtunneling machines and technology, micro tunneling positioning can prevent utility clashes by enabling controlled, safe, and efficient tunneling operations without disrupting what’s already underground.
Key Takeaways
-
Micro tunneling positioning uses special guidance systems to move correctly. This helps stop utility clashes and keeps workers safe.
-
CEGC's micro tunnel boring machines can be changed for different city projects. They let workers tunnel fast without breaking things already built.
-
Using real-time steering and laser guidance makes work more exact. It lowers risks and helps finish projects on time in busy cities.
Microtunneling Positioning in Urban Tunneling Projects
What is Microtunneling?
Microtunneling is used when tunnels need to be built in crowded places. It is a trenchless method for sewer construction. The machine is controlled from outside the tunnel. No operator needs to go inside. This makes it good for small tunnels in busy cities. Microtunneling starts from a pit. Laser guidance systems help steer the machine very accurately. The excavation face gets constant support. This protects the ground and keeps utilities safe.
Let’s look at how microtunneling compares to another method:
|
Method |
Launch Type |
Cost |
Precision |
|---|---|---|---|
|
Microtunneling |
Pit-launched |
High |
High |
|
Surface-launched |
Lower |
Lower |
Microtunneling gives better precision than other methods. It is a smart choice for city projects. You can avoid damaging utilities.
The main parts of a microtunneling system are:
-
Guidance System
-
Slurry System
-
Jacking Frame
-
Hydraulic Jacks
-
Jacking Pipes
-
Spoil Removal System
CEGC offers tunnel boring machines and microtunnelling machines. These machines meet market standards. You can change them to fit your project.
Why Positioning Matters for Safety
Positioning is very important in city tunneling projects. Accurate positioning keeps workers safe. It also protects the city’s pipes and cables. If you make a mistake, you could hit utilities or cause accidents.
Here is a real example:
|
Incident Description |
Consequences |
Causes |
Lessons Learned |
|---|---|---|---|
|
A well was drilled incorrectly, breaching a railway tunnel. |
Lack of surveyor intervention led to positioning errors. |
Importance of seeking professional surveyor advice for positioning operations. |
This table shows that bad positioning can cause big problems. It can lead to safety risks and delays. You can avoid these issues by using laser guidance systems and real-time steering. These tools help keep the machine on track. CEGC’s guidance system helps with survey control and steering. You get reliable reports. This helps you meet safety and accuracy rules.
Preventing Utility Clashes with Guidance Systems
You can stop utility clashes by using guidance systems in microtunneling. Laser guidance systems give real-time feedback. You can steer the machine with great accuracy. This helps you avoid hitting utilities and stay on the right path.
CEGC’s machines have features like:
-
Guidance system integration for accurate line and grade control
-
High-rigidity machine structure to reduce mechanical drift
-
Controlled excavation profile for predictable pipe installation
You also get face pressure control and ground protection systems. These features help manage ground settlement and face instability. You can work safely even if the ground changes. With these systems, you lower the risk of damaging utilities. Your project stays on schedule.
Tip: Always use laser guidance systems and real-time steering. This gives you the best precision in tunneling.
You can count on CEGC’s tunnel machines for safety, precision, and reliability. They help you succeed in city tunneling projects.

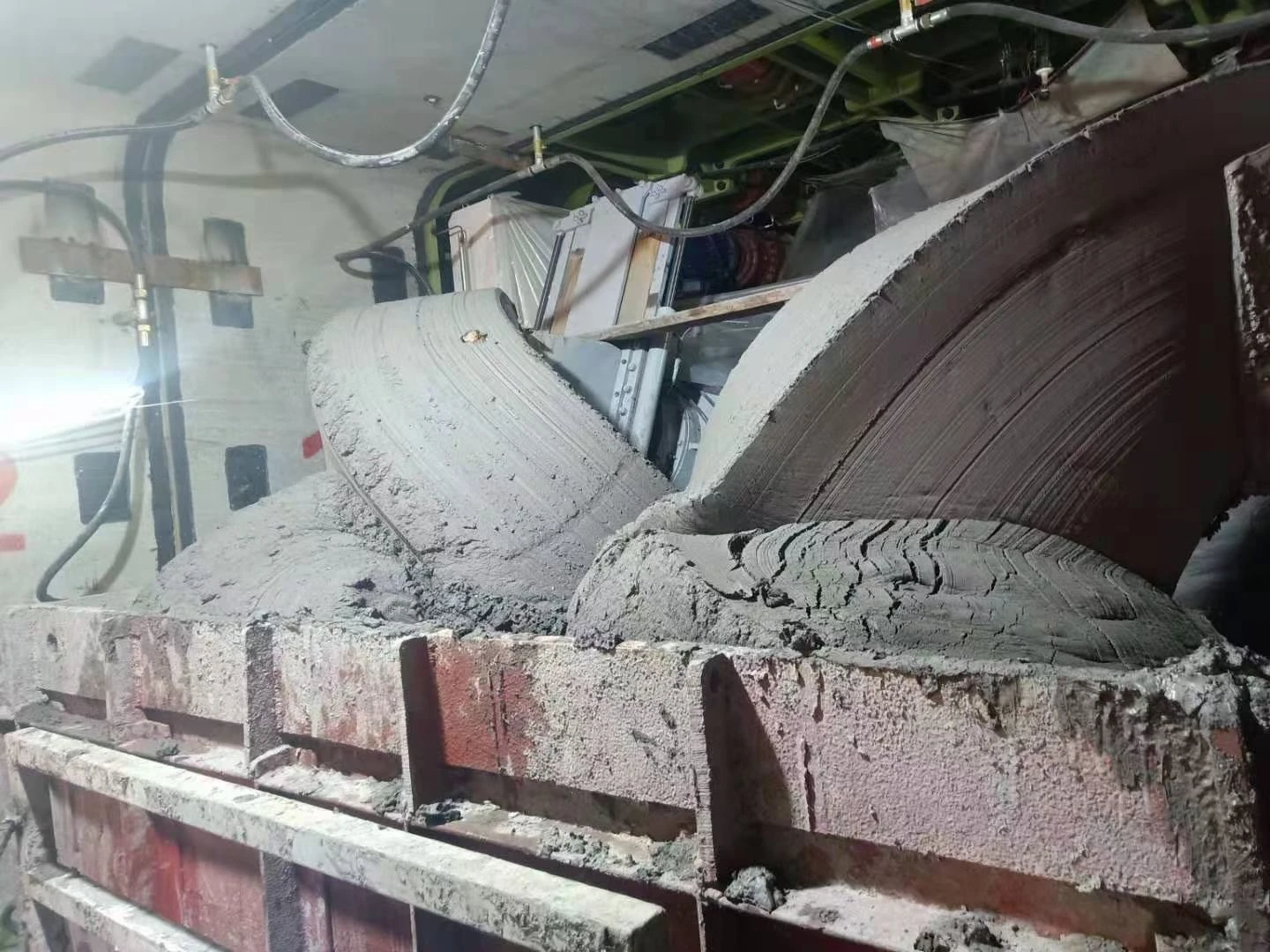

Micro Tunnel Boring Machines vs. Traditional Methods
Risks of Utility Clashes in Conventional Excavation
Traditional open-cut tunneling has many risks. These methods can damage pipes and cables. Workers may face cave-ins or accidents. There is also a chance of hitting dangerous materials. The table below shows the main risks:
|
Risk Type |
Description |
|---|---|
|
Utility Interference |
Risk of damaging existing utilities or infrastructure during excavation. |
|
Safety Concerns |
Risks to worker safety including cave-ins, equipment accidents, and exposure to hazardous materials. |
|
Environmental Impact |
Potential disruption to natural habitats, increased erosion, and soil and water contamination. |
Open-cut methods can cause big problems in cities. You might break important pipes or wires. Sometimes, accidents happen and people get hurt. These risks make microtunneling a smarter choice for city projects.
Advantages of Micro Tunnel Boring Machines
Micro tunnel boring machines give you better control. You can steer the machine very accurately. This lowers the chance of hitting pipes or cables. Here are some important points:
-
Micro tunnel boring machines keep horizontal deviation to a maximum of 31 mm and vertical deviation to 36 mm.
-
After jacking, the final deviations are much lower than the allowed limit.
-
You can monitor the cutting face and adjust in real time.
-
Remote operation improves safety because you do not need to send workers underground.
CEGC’s tunnel machines help control ground movement. They use face pressure and ground protection systems. Guidance systems help keep the tunnel straight. These features make microtunneling safe and reliable.
Real-World Benefits for Urban Projects
Microtunneling gives many benefits in city projects. The table below shows some main advantages:
|
Benefit |
Description |
|---|---|
|
Improved Project Scheduling |
Utilizing real-time data analytics leads to significant enhancements in project timelines and the quality of outcomes, minimizing risks and allowing for proactive adjustments. |
|
Energy Efficiency and Sustainability |
Micro pipe jacking machines equipped with energy-efficient systems reduce emissions, aligning with environmental standards. This not only benefits the environment but also offers financial incentives through tax credits and subsidies. |
|
Noise and Vibration Reduction |
Advanced noise abatement technologies in these machines enhance the working environment and foster positive community relations by minimizing noise pollution in urban areas, contributing to worker safety and community acceptance. |
Micro tunnel boring machines cause less mess on the surface. You can work in small spaces without hurting the environment. Microtunneling helps finish projects faster and with fewer problems. You also keep workers and neighbors safer.
Microtunneling Process & Project Customization
Guidance and Steering for Accurate Positioning
First, you set up the launch shaft. Operators use special microtunneling tools to guide the machine. Real-time steering systems help keep the machine on track. Sensors and lasers give instant feedback. This lets you fix mistakes quickly. These tools help your project stay on course. They work well in crowded city spaces. The process lowers the chance of utility clashes. It also helps keep workers safe.
Customization for Urban Conditions
Each city project is unique. CEGC has microtunneling tools you can change for your needs. You can pick tunnel boring machines from 3 to 12 meters wide. These machines have real-time ground monitoring. Adaptive cutterheads handle different soil types. You can use them for water, gas, telecom, or wastewater tunnels. Mixshields work for high water pressure above 15 bar. Multiple seals and tailskin sealing keep water and dirt out. This makes microtunneling safe and reliable for city jobs.
-
CEGC’s microtunneling tools fit many projects.
-
You can change pressure, seals, and guidance systems.
-
Machines work for metro, utility, and Smart City jobs.
Safety and Efficiency in Microtunneling
Microtunneling has many safety features. You get risk plans and emergency strategies. Real-time monitoring checks ground and machine conditions. Good ventilation keeps air clean and lowers gas risks. Workers learn to use safety gear and practice emergency drills. Clear communication helps everyone stay safe. Microtunneling tools also make work faster. There is less noise, vibration, and dust. The process causes less mess on the surface. Fewer services get disrupted. You can tunnel under roads and buildings without stopping city life. Microtunneling helps finish projects fast, clean, and safe in busy cities.
Tip: Use microtunneling tools to keep your project safe, efficient, and on schedule.
You can trust microtunneling to make city tunneling safe and exact. Microtunneling uses smart sensors and guidance systems to stop utility clashes. This keeps workers safe and protects things under the ground. Microtunneling lets you control the machine from far away. It has strong safety rules and causes less mess than old tunneling ways. CEGC gives you tunnel machines that you can change for your project.
-
Microtunneling lowers the chance of hitting other utilities.
-
You make tunneling safer and faster with microtunneling.
-
CEGC’s tunnel machines work for many kinds of jobs.
Pick microtunneling for your next city project.
FAQ
What is a microtunnelling machine?
A microtunnelling machine builds tunnels underground. It does not dig up roads. This keeps the city working as usual.
How does microtunneling prevent utility clashes?
You use real-time guidance to steer the machine. This helps you avoid pipes and cables under the ground.
Can you customize CEGC’s tunnel boring machines for your project?
Yes! You can pick the pressure range and sealing design. You can also choose guidance systems. CEGC helps you find the right machine for your project.
