micro tunneling thrust balance reduces jacking friction events

You can see how micro tunneling thrust balance reduces jacking friction events. It spreads force evenly, ensuring that the tunnel boring machine remains straight throughout the process. Good process management is crucial, and CEGC demonstrates that utilizing the right slurry and tools significantly helps lower friction. A Microtunnelling Machine is one prime example of this. The table below lists the main strategies and their benefits:

Key Takeaways

• Micro tunneling thrust balance spreads force in a fair way. This helps lower jacking friction. It also keeps the tunnel boring machine moving straight.

• Using the correct slurry, like bentonite-polymer, cuts down friction. It also reduces wear. This makes the work smoother. It leads to less time when the machine stops.

• Check thrust balance often. Also check jacking frame alignment. This helps tunneling work well. It stops expensive repairs from happening.

Jacking Friction in Microtunneling

What Is Jacking Friction?

Jacking friction happens when you push pipes through the ground. The pipe rubs against the soil, which causes friction. The earth around the pipe pushes back and adds more friction. Many things can make jacking harder. Lubrication can help lower friction, but stopping the drive can make it worse. If the pipe does not stay on the right path, friction gets higher. Overbreak means taking out too much soil, which makes jacking harder. The kind of soil matters a lot. Sandy soils, clay, and gravel all change how much friction you have to beat.

Challenges for Tunnel Machines

Tunnel machines like the Microtunnelling Machine must stay on track. High jacking friction can slow the work and wear out the machine. The TBM and auger boring machine have to push harder if friction goes up. If you do not check the path first, the pipe can move off course. CEGC says to do surveys and check the path before starting. These steps help stop problems and keep microtunneling easy. You can finish faster and with less trouble if you control jacking friction.

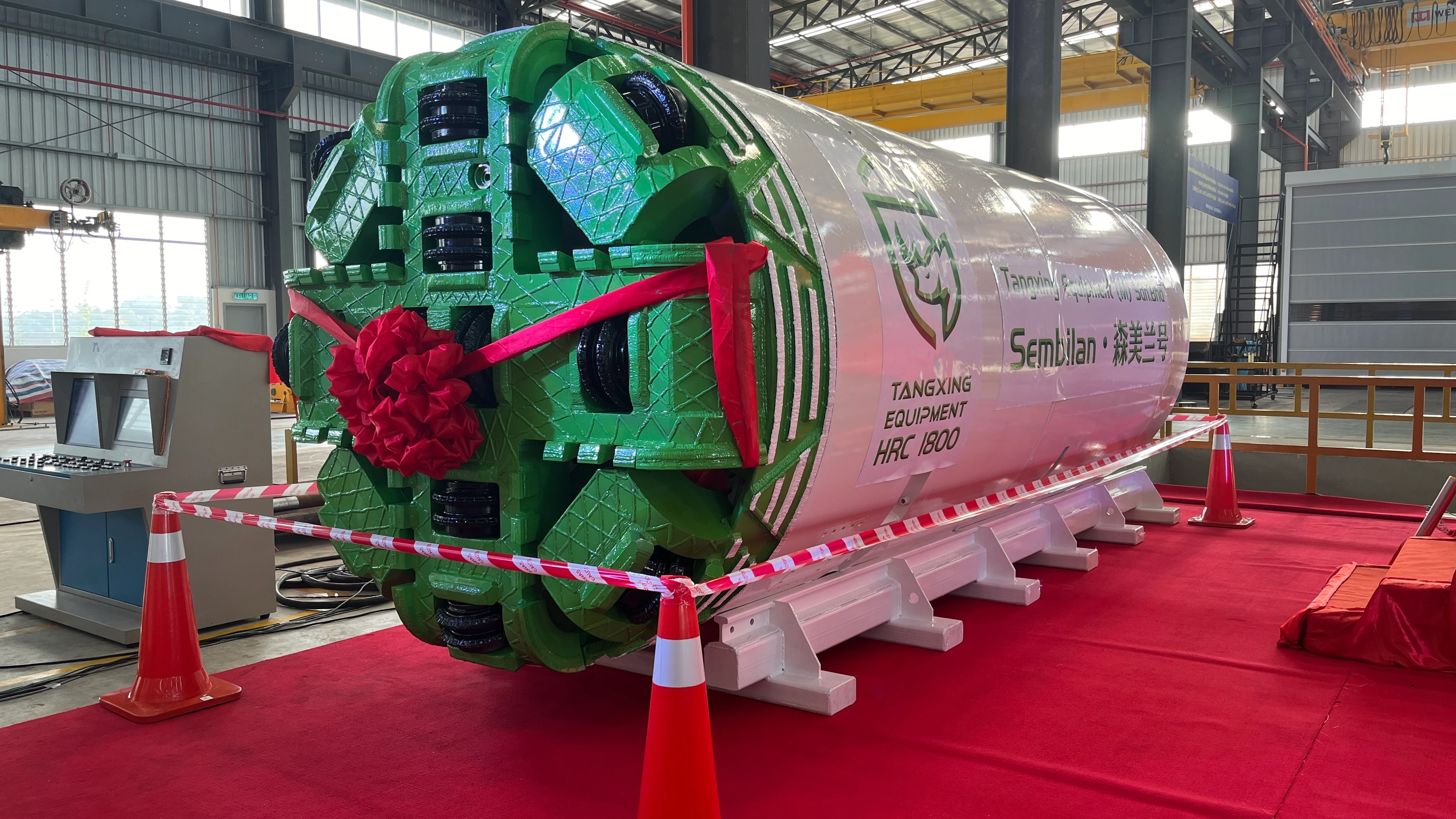

Thrust Balance and Friction Reduction

Thrust Balance Mechanisms

You need to understand how thrust balance works in slurry pipe jacking. Thrust balance means you spread the pushing force across the whole pipe. This helps the tunnel machine move forward without getting stuck. When you use thrust balance, you keep the pipe straight and steady. You do not let one side push harder than the other. This is important because micro tunneling thrust balance reduces jacking friction events. You want the force to go through the center of the pipe. If you do this, you lower the chance of the pipe bending or moving off the path.

You can see how thrust balance helps in slurry pipe jacking by looking at the way the jacking frame pushes. The frame uses hydraulic rams to push evenly. The tunnel boring machine stays on track because the force does not shift to one side. You get a smooth drive and less risk of damage.

Tip: Always check the jacking frame alignment before starting. This helps you keep thrust balance and avoid problems during slurry pipe jacking.

How Thrust Balance Reduces Jacking Friction Events

You might wonder why micro tunneling thrust balance reduces jacking friction events. The answer is simple. When you balance the thrust, you do not let the pipe rub too much against the soil. This means you have less friction. If you push harder on one side, the pipe can scrape the ground and cause more friction. You want to avoid this because too much friction can stop the tunnel machine.

Micro tunneling thrust balance reduces jacking friction events by making sure the pipe moves in a straight line. You do not get sudden stops or jerks. The tunnel boring machine works better and lasts longer. You also save time and money because you do not need to fix problems caused by high friction. CEGC recommends checking the thrust balance often during slurry pipe jacking. This keeps your project on track and helps you finish on time.

Here is a table that shows the benefits:

Role of Thrust Ring and Lubrication

You use a thrust ring to help spread the force during slurry pipe jacking. The thrust ring sits at the end of the jacking frame. It pushes on the pipe evenly. This is another way micro tunneling thrust balance reduces jacking friction events. The thrust ring keeps the pipe from getting damaged and helps the tunnel machine stay on course.

Lubrication is also important. You inject special fluids, like bentonite or polymer, around the pipe. This makes the soil slippery. The pipe slides through the ground with less effort. You do not get stuck as often. Lubrication works best when you use it with thrust balance. Together, they make slurry pipe jacking faster and safer.

You should follow CEGC’s best practices for shaft construction and jacking-frame installation. Always check the base slab level and make sure the jacking frame is straight. This helps you keep thrust balance and get the best results from your tunnel machine.

Note: Good thrust balance and lubrication mean you use less energy. You spend less money on repairs and finish your project faster.

Micro tunneling thrust balance reduces jacking friction events in every step of slurry pipe jacking. You get better efficiency, lower costs, and a higher chance of success. When you use these methods, you make sure your tunnel boring machine and TBM tunnel boring machine work at their best.

You get smoother and safer tunneling when you use thrust balance to lower jacking friction events. Always use the best steps and listen to CEGC’s project help for good results. > Talk to experts and pick modern tunnel machines for your next job. This way, you can finish faster and spend less money.

FAQ

How do you monitor pipe-jacking drive alignment in real time?

You use laser guidance systems and sensors. These tools let you see where the pipe is. They also show which way the pipe is going as you move the tunnel machine.

What quality tests must you perform after a pipe-jacking installation?

• You look at the tunnel with CCTV cameras.

• You test the hydraulic pressure to make sure it is right.

• You look at the pipe joints to check for problems.

• You see if the tunnel boring machine worked well.
