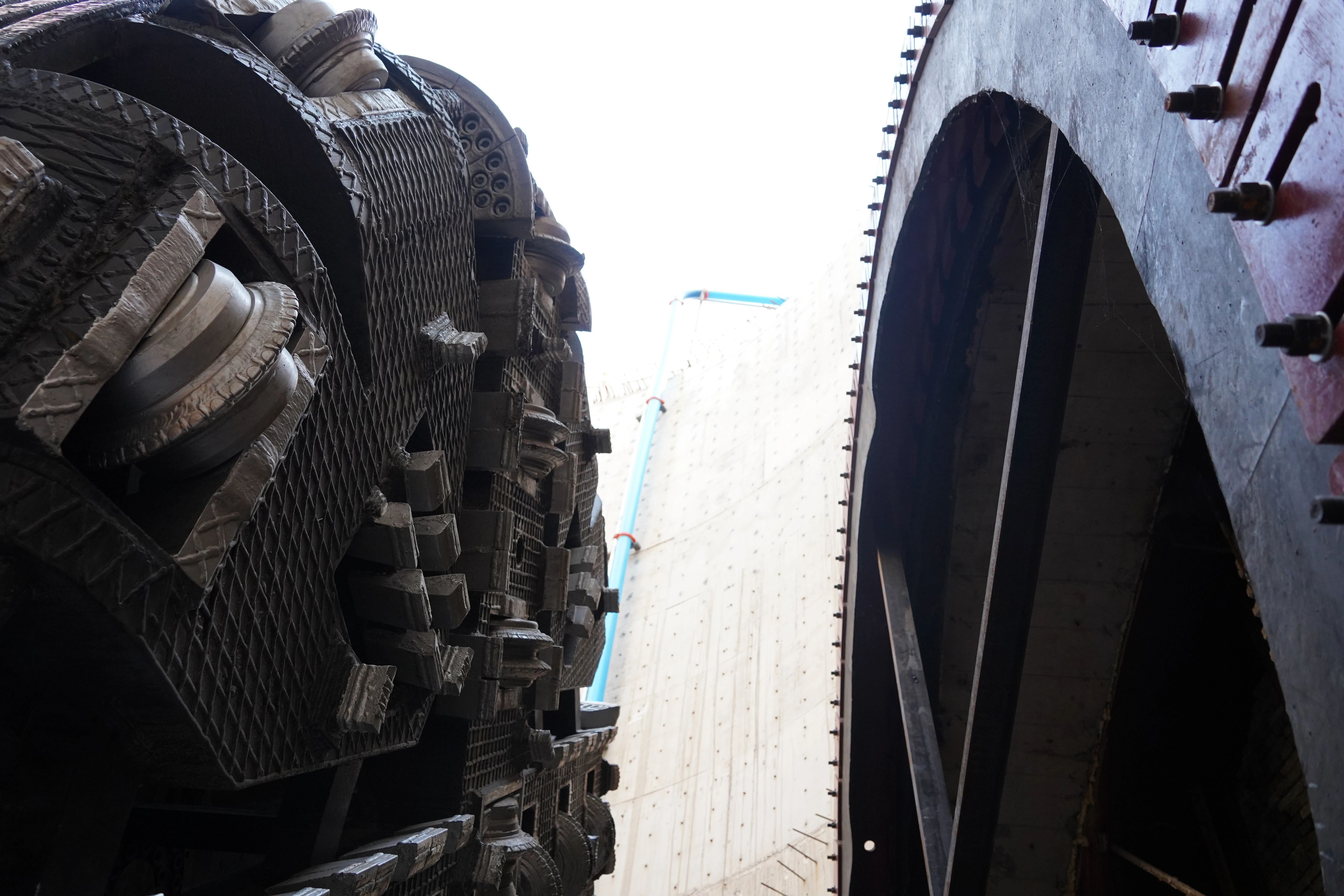

micro tunneling yaw control lowers jacking friction events

You have fewer jacking friction events when you use micro tunneling yaw control. This technology helps you make quick changes. It keeps your tunnel machine moving the right way and lowers resistance. The table below shows how CEGC’s systems help with good alignment and better work:

Micro tunneling yaw control lowers jacking friction events. It also helps you save money, finish on time, and protect your tools.

Key Takeaways

• Micro tunneling yaw control helps lower jacking friction. This makes the work smoother and causes less damage to machines.

• Guidance systems like lasers help keep the tunnel straight. This lowers resistance and helps save time and money.

• Checking and fixing things often during tunneling keeps the machine on track. This makes the project faster and safer.

Microtunnelling Yaw Control and Alignment

What Is Yaw Control?

Yaw control helps you keep your tunnel machine facing the right way. In microtunnelling, pipelines must be installed with very tight limits. Yaw control uses a guidance system, like a laser, to show where the machine is and which way it points. You get updates right away. The table below shows the main features:

Role in Micro Tunneling Machine Steering

Yaw control helps you steer your tunnel boring machine. It keeps the machine’s direction correct. You need to watch the machine’s attitude, including yaw, pitch, and roll. This helps you follow the design. Guidance systems, like laser targeting, help you make changes. CEGC’s systems give you reliable steering and alignment.

• Yaw control keeps your machine moving straight.

• You get updates fast for quick fixes.

• Laser guidance makes accuracy better over long distances.

Alignment and Friction Connection

Good alignment in microtunnelling lowers jacking friction. If your tunnel machine goes off course, friction gets higher and jacking becomes harder. Many things affect friction, like ground type, pipe length, and how long you work. Keeping alignment with good control lowers resistance and protects your tools. CEGC’s guidance and steering systems help you avoid mistakes and keep your project running well.

How Micro Tunneling Yaw Control Lowers Jacking Friction Events

Causes of Jacking Friction

Jacking friction happens when the pipe moves through the ground. Many things can make resistance go up. Pipe deviation and ground closure cause the pipe to rub against soil. Soil properties and pipe size change how much friction you get. If the frictional coefficient is higher than 0.1–0.3 for lubricated drives, you need more jacking force. Misalignment and geology are important too. Overcut annulus, how much lubricant you use, and face resistance affect jacking loads. When the soil type changes, jacking force changes as well. You must check pipe alignment and soil conditions to keep friction low.

Mechanisms of Friction Reduction

Micro tunneling yaw control keeps the pipe on the planned path. You use guidance systems to steer the tunnel machine. Keeping the pipe straight lowers pipe-soil contact. This helps the lubricant work better. The lubricant forms a layer between the pipe and soil. You see smoother movement and less resistance. Micro tunneling yaw control stops misalignment before it starts. You get feedback right away and adjust the machine’s direction. The pipe jacking method works best when the pipe stays in line. Micro tunneling yaw control makes trenchless pipe jacking work better. You avoid sudden spikes in jacking force and protect your equipment.

Tip: Use guidance systems and yaw control to keep your pipe centered. This helps the lubricant spread evenly and lowers jacking friction.

Project Benefits and Outcomes

Micro tunneling yaw control brings many benefits. You use less energy because the machine faces less resistance. Parts last longer since you avoid extra wear. You see fewer stoppages and delays. Micro tunneling yaw control helps you finish projects on time. You save money on repairs and maintenance. The pipe jacking method becomes more reliable. You meet strict alignment standards for municipal and utility tunnels. Micro tunneling yaw control improves safety. You lower the risk of pipe damage and ground settlement. The micro tunnel boring machine works better and keeps your project moving.

Implementation Tips for CEGC Tunnel Machines

You can make micro tunneling yaw control work well with CEGC tunnel machines. Start with a strong guidance system. Use laser or gyroscope tools to track alignment. Adjust steering jacks often to keep the pipe straight. Watch soil conditions and change lubricant volume as needed. Micro tunneling yaw control works best when you check alignment often. Train your crew to use feedback in real time. Keep the machine structure rigid to avoid drift. Customize your CEGC tunnel machine for the ground you face. Micro tunneling yaw control makes trenchless pipe jacking more efficient.

Note: CEGC offers project-based customization for tunnel machines. You can choose guidance packages, control options, and alignment-focused features to fit your needs.

Micro tunneling yaw control helps you deliver successful projects. You get better performance, lower costs, and longer equipment life.

When you use yaw control, jacking friction goes down. This means you can finish your project faster. You also save money and keep your tunnel machine safe. CEGC’s yaw control systems work well and give steady results.

• Projects get done quicker

• You spend less money

• Your equipment lasts longer

Check out CEGC’s custom choices for your next tunnel boring machine job.

FAQ

How does yaw control help reduce jacking friction?

Yaw control helps your tunnel machine stay on track. This means the pipe touches the soil less. Less contact lowers friction and keeps your equipment safe.

Can you use yaw control with CEGC tunnel machines?

You can use yaw control with CEGC tunnel machines. CEGC gives you guidance systems and alignment tools for microtunnelling and TBM tunnel boring machines.

What benefits do you get from using yaw control?
