You use a mining drilling machine to make holes in hard rock. This lets you get resources out of the ground. A 320MPa rock crusher breaks strong rock. It helps you process ore fast and easy. Mining Drilling Machine 320MPa Rock Crusher technology makes work safer and faster. Industry reports prove this. CEGC is a leader in advanced equipment. Their tools reach deeper and harder ore bodies.
Key Takeaways
-
Mining drilling machines create holes in hard rock. This lets people reach valuable resources deep underground.
-
The 320MPa rock crusher breaks tough rocks like granite and iron ore. It helps make mining easier and faster.
-
Using both machines together makes mining smoother. It makes mining quicker and safer. It also helps get more ore.

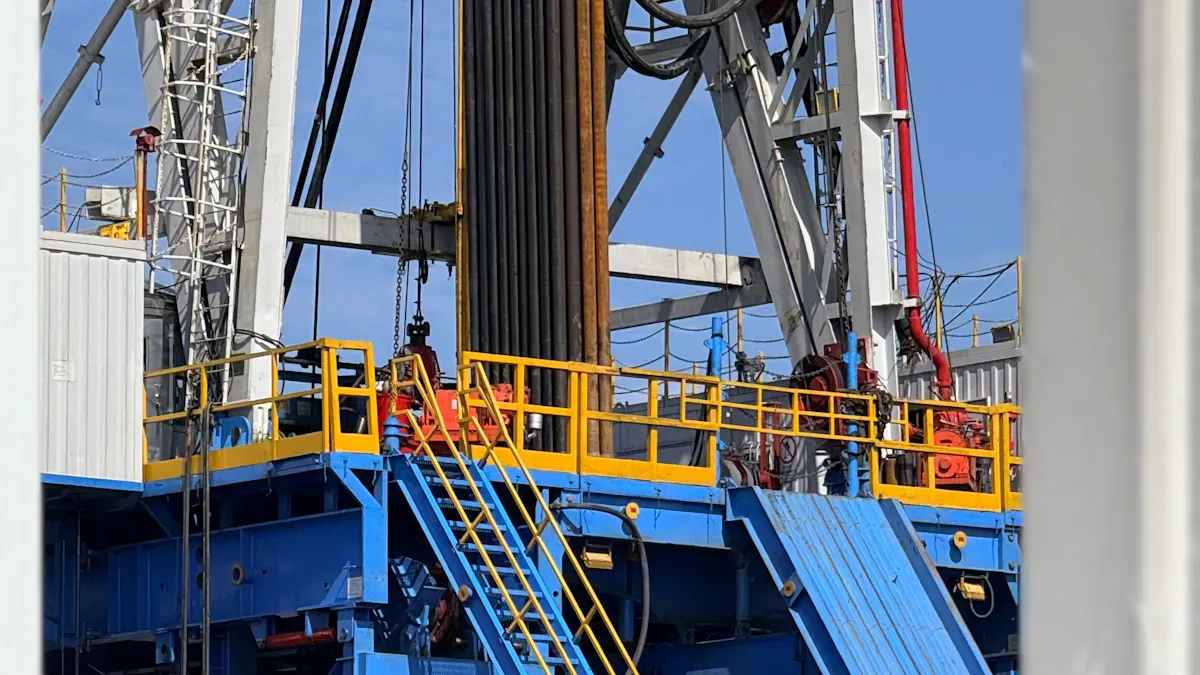

Mining Drilling Machine Basics
What Is a Mining Drilling Machine
A mining drilling machine makes holes in the earth or rock. These machines help you get minerals and ores from deep underground or open-pit mines. You need mining drilling machines because they let you reach resources you cannot get by hand. These machines make mining faster, safer, and easier for workers.
Tip: If you pick the right drilling machine, you can save time and lower risks in hard mining places.
Types and Main Features
There are many types of mining drilling machines. Each type has special features for different jobs. The table below shows the main types and how they work:
|
Type of Drill Rig |
Components and Operating Principles |
|---|---|
|
Surface Top Hammer Drill Rigs |
Hydraulic drills with a hammer that hits rock, good for breaking hard surfaces. |
|
Surface Down-The-Hole Drill Rigs |
Jackhammer at the bottom of the drill string, drills big holes deep in the ground. |
|
Dimensional Stone Drill Rigs |
Precise drills for cutting natural stone like granite and marble. |
|
Rotary Blasthole Drill Rigs |
Makes holes for explosives, known for deep and accurate drilling. |
|
Development Drill Rigs |
Drills holes for explosives in coalbeds, easy to move and set up. |
|
Tunneling Jumbos |
Fast face drilling and longhole drilling, used in underground tunnels. |
|
Top Hammer Longhole Drill Rigs |
Uses a piston-powered hammer to break rock, helps recover ore with less waste. |
|
Rock Support Drill Rigs |
Installs rock bolts to keep tunnels safe and stable. |
|
In-The-Hole Longhole Drill Rigs |
Mounted on carriers, uses extension rods for deep and accurate drilling. |
|
Low Profile Drill Rigs |
Fits in tight spaces, perfect for low-height ore bodies. |
|
Narrow Vein Drill Rigs |
Made for narrow spaces, lets you reach rich mineral veins in tricky geology. |
You pick the right machine based on mine size, rock type, and your mining goal.
How Mining Drills Work
Mining drilling machines use different ways to break and take out rock. You choose the drilling method based on the ground and what you need to do. Here are some common drilling methods:
|
Drilling Method |
Description |
Ideal Geological Condition |
|---|---|---|
|
Auger Drilling |
Turns a screw to lift soil samples. |
Softer soil, early exploration. |
|
Rotary Air Blasting |
Uses a piston-driven hammer to break rock fast. |
Shallow, hard rock. |
|
Aircore Drilling |
Three-bladed bit with a hollow rod for clean samples. |
Loose soil and rock pieces. |
|
Reverse Circulation |
Like rotary air blasting, drills deeper for exploration. |
Deep exploration in many rocks. |
|
Diamond Core Drilling |
Uses diamonds to cut and take out rock cores. |
Deep, hard rock layers. |
|
Blast Hole Drilling |
Drills holes for explosives to move lots of earth. |
Big excavation areas. |
Each method works best for certain ground or mining jobs. For example, you use diamond core drilling to study deep rock layers.
Common Applications
Mining drilling machines are used for many mining jobs. You use them in both open-pit and underground mines. Here are some common uses:
-
Production Drilling: You drill holes for explosives to break rock and get ore.
-
Development Drilling: You make tunnels and shafts to reach new ore.
-
Exploration Drilling: You collect samples to find where valuable minerals are.
The table below shows which machines fit these jobs:
|
Drilling Machine Type |
Application Description |
|---|---|
|
Development Drill Rigs |
Drill holes in coalbeds for explosives, easy to move, used in mines of all sizes. |
|
Tunneling Jumbos |
Fast drilling for tunnel faces and long holes, boosts productivity in underground mining. |
Using the right mining drilling machine makes mining safer and more efficient. The Mining Drilling Machine 320MPa Rock Crusher lets you drill, blast, and crush rock in one smooth process. This helps you reach deeper ore and process rock faster.
Note: Picking the right drilling machine can help your mining results and cut down on delays.
320MPa Rock Crusher Overview
What Is a 320MPa Rock Crusher
You use a 320MPa Rock Crusher to break very strong rocks. The "320MPa" number shows how tough the rock is. This machine can crush hard things like granite, basalt, and iron ore. You need this crusher when you work with hard rocks in mines. The Mining Drilling Machine 320MPa Rock Crusher helps you crush ore fast and safely.
Note: If you pick a crusher with the right strength, you stop damage and get better mining results.
Jaw crushers and gyratory crushers are the main machines for rocks up to 320MPa. Jaw crushers use two plates to smash rocks. You see these crushers at mining and building sites.
Types of Rock Crushers
There are different rock crushers in mining. Each one breaks rocks in its own way. The table below explains how jaw, impact, and cone crushers work for 320MPa rocks:
|
Crusher Type |
Mechanism Description |
Suitability for 320MPa Rock Crushing |
|---|---|---|
|
Jaw Crusher |
Crank link mechanism |
Suitable for primary crushing of materials under 320MPa |
|
Impact Crusher |
High-speed impact principles |
Handles medium-hard materials not exceeding 320MPa |
|
Cone Crusher |
Compression and secondary crushing |
Suitable for hard and medium-hard rocks |
Jaw crushers are best for the first step of crushing. Impact crushers are good for medium-hard rocks. Cone crushers help make smaller pieces after the first crush.
How Rock Crushers Work
You use a rock crusher in steps. Each step makes the rocks smaller. You start with big rocks and end with tiny pieces. The table below shows the steps:
|
Stage |
Description |
Output Size |
|---|---|---|
|
Coarse Crushing |
Large chunks are reduced to manageable pieces using jaw or gyratory crushers. |
6 to 10 inches |
|
Medium Crushing |
Further refinement using impact or cone crushers to achieve smaller pieces. |
1 to 3 inches |
|
Sand Making |
VSI or high-speed rotor sand makers pulverize material into sand-like particles. |
0.15 to 0.47 inches |
|
Screening |
Vibrating screens sort sand by size and grade for quality control. |
5 mm–10 mm, 10 mm–20 mm, 0 mm–5 mm |
You put big rocks in the crusher. The machine breaks them down in steps. Screens help you sort the final pieces by size.
Tip: Check your crusher often, add oil, and clean dust. Always wear safety gear and follow rules.
-
Check your crusher and change old parts to keep it working.
-
Oil moving parts to stop them from wearing out.
-
Clean dust so the machine does not get damaged.
-
Safety steps keep you and your team safe.
Applications in Mining
You use 320MPa Rock Crushers for many jobs in mining and building. The table below lists common uses:
|
Application Type |
Description |
|---|---|
|
Mining |
Processes hard ores such as granite, basalt, and iron ore. |
|
Construction Aggregate Production |
Crushes raw materials like river pebbles and limestone for concrete. |
|
Metallurgical Industry |
Crushes metallurgical waste for resource recycling. |
|
Infrastructure Construction |
Used in large-scale projects like highways and bridges. |
|
Solid Waste Treatment |
Crushes construction waste for resource recovery. |
|
Sand and Gravel Quarries |
Produces manufactured sand to alleviate resource shortages. |
You see these crushers in mines, quarries, and recycling places. You use them to make road stones, recycle waste, and make sand.
Alert: If you use the right crusher for your job, you get better results and stay safer.
The Mining Drilling Machine 320MPa Rock Crusher lets you drill and crush hard rock in one system. You work faster and safer on your mining projects.
Mining Drilling Machine 320MPa Rock Crusher in Mining
Key Differences
You use a mining drilling machine to make holes in rock. The 320MPa rock crusher breaks strong rocks into smaller pieces. The drilling machine helps you reach deep ore. The rock crusher crushes ore after drilling and blasting. Each machine does a different job. The drilling machine works first. The crusher comes after. You need both machines to get minerals from hard rock.
|
Machine Type |
Main Function |
When You Use It |
|---|---|---|
|
Mining Drilling Machine |
Makes holes in rock |
Before blasting |
|
320MPa Rock Crusher |
Crushes hard rock |
After blasting |
How They Work Together
You start with the mining drilling machine. You drill holes and put in explosives. After blasting, you use the 320MPa rock crusher. The crusher breaks the blasted rock into smaller pieces. Using both machines together saves time. You move from drilling to crushing without waiting. This teamwork helps you reach deep ore and process it fast.
Tip: Using both machines together saves time and helps you work better.
Benefits for Mining Operations
You get many benefits from using the Mining Drilling Machine 320MPa Rock Crusher system. You work faster and safer. You do not need as much manual labor. Workers face fewer risks. You can break tough rocks and reach deeper ore. You work more efficiently and get more minerals with less waste.
-
Faster mining cycles
-
Safer work environment
-
Higher ore recovery
-
Less downtime
You get better results when you use both machines in your mining work.
You use mining drilling machines to reach deep ore. You use 320MPa rock crushers to break hard rock. Each machine has a special job. Together, they help you mine faster and safer.
When you choose the right equipment, you boost efficiency and protect your team.
FAQ
What does "320MPa" mean in a rock crusher?
"320MPa" shows the highest strength of rock the crusher can handle. You use it for very hard rocks like granite or iron ore.
How do you choose the right mining drilling machine?
You look at the rock type, mine size, and your mining goal. The right machine helps you work faster and safer.
Can you use a rock crusher and drilling machine together?
Yes. You drill holes first, then crush the blasted rock. This process helps you mine deep ore and process it quickly.
