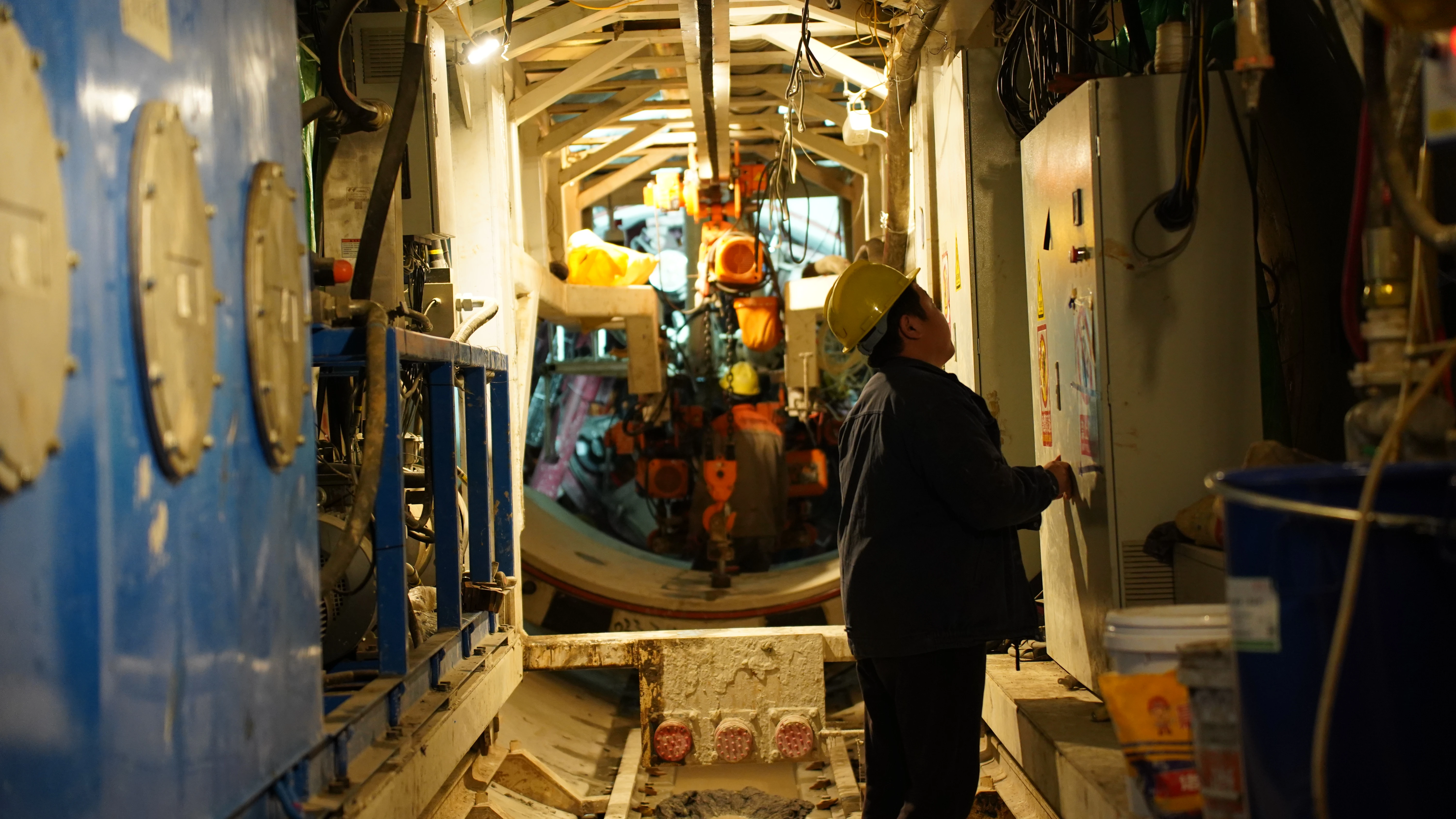

TBM tunnel jams can cascade into contract variations

TBM tunnel jams can cascade into contract variations and create significant challenges in tunneling projects. You might notice these issues manifest in various ways:

• Machine stoppages that increase costs and slow down progress.

• Real-time data tools that allow you to anticipate and manage jams effectively.

• Thoughtful excavation plans that help minimize the risk of jamming.

CEGC is here to assist you in understanding these technical and contractual challenges, enabling you to execute your project with confidence.

Key Takeaways

• Learn why TBM tunnel jams happen to stop expensive delays. Things like the ground and machine problems can make the TBM stop.

• Write down everything about how the TBM works and the tunnel. These notes help you ask for changes in the contract if jams happen.

• Work with experts to handle risks well. They know how to pick the best tools and plans to make jams less of a problem.

TBM tunnel jams in tunneling projects

What causes TBM tunnel jams

You might see tbm tunnel jams when working on hard tunneling jobs. Many things can cause these jams during tunnel digging. Sometimes, rocks around the tunnel fall and block the tbm. This stops the work. Broken ground makes the area weak and can cause more jams. If the rock changes suddenly, your team might be surprised and have to stop. Technical issues, like power loss or machine trouble, can also cause jams. Big repairs may mean you must stop the tbm, which raises the chance of jamming. If you do not act fast, squeezing rock can trap the tbm over time. Bad ground, like water in the tunnel, can slow digging and make jams more likely.

When you look at other tunneling ways, you see that auger boring machine and Microtunnelling Machine have some of the same risks. But the size and effect are not always the same. The new austrian tunneling method (natm) and excavation compensation method (ecm) try to fix these problems by changing how they support and dig. You need to know about these risks to pick the best tools and plan for your tunnel job.

Immediate effects on tunneling operations

A tbm tunnel jam can mess up your tunnel work right away. The table below shows what can happen:

You might see work slow down and costs go up if the tbm gets stuck. In the Ghomroud tunnel project, bad ground like squeezing and face collapse stopped the tbm and slowed digging. You should always check the ground and change your plan to stop these problems. If you know what can happen right away, you can handle risks better and keep your tunnel job moving.

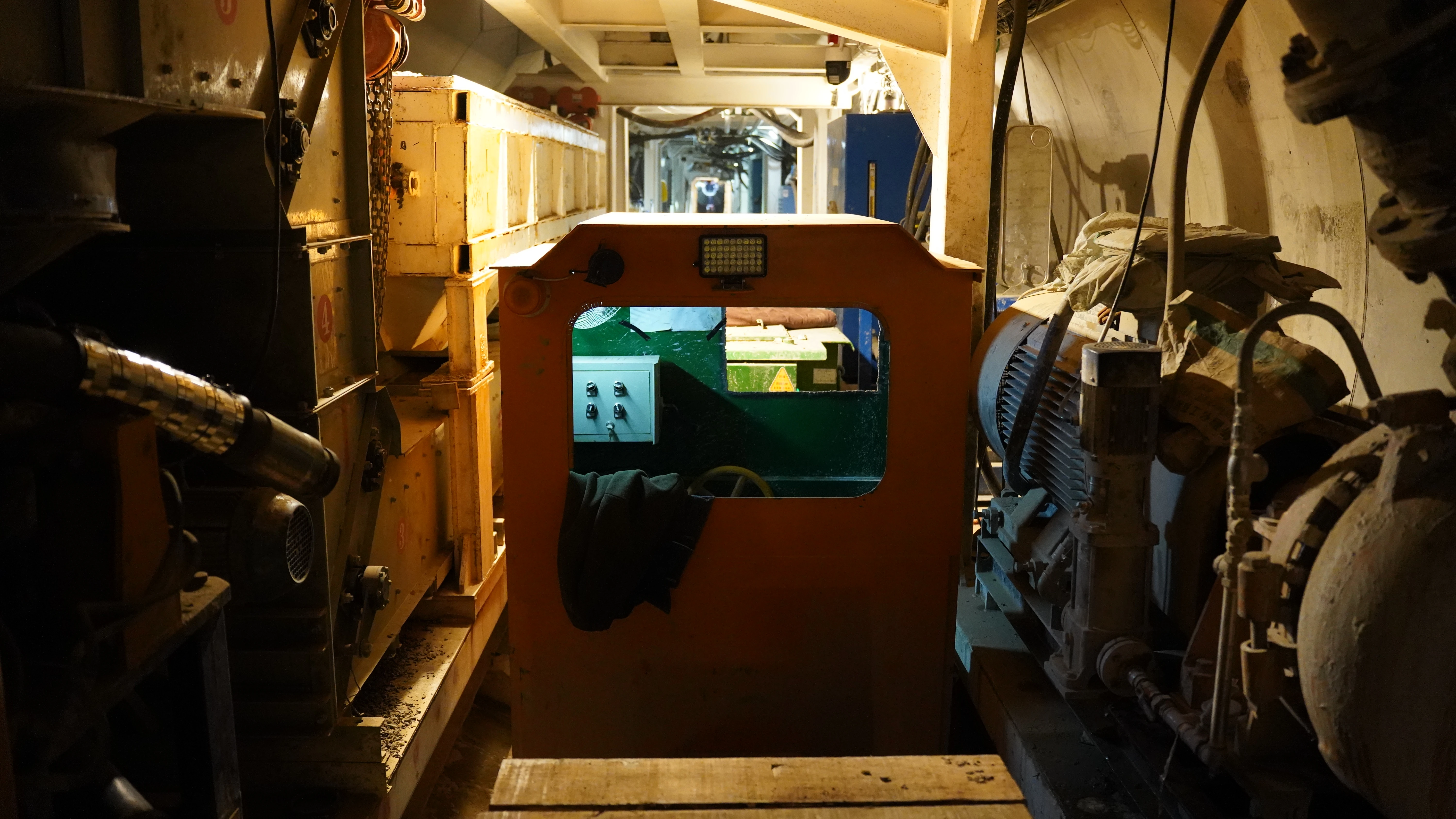

How TBM tunnel jams can cascade into contract variations

Project delays and cost impacts

You face many challenges when a tbm tunnel jam happens in your tunnel project. The jam stops the tbm and slows down the tunnel work. You must spend more time and money to fix the problem. Every hour the tbm sits idle, your project loses progress and the cost goes up. You may need to bring in extra workers or special tools to free the tbm. Sometimes, you must repair the tunnel or the tbm itself. These repairs add to your cost and can stretch your project timeline.

You also see cost impacts in other ways. If the tbm gets stuck, you might need to pay for extra materials or rent more equipment. The longer the jam lasts, the more your cost grows. You may also face penalties if you miss project deadlines. These delays and extra costs often lead to changes in your contract. You might need to ask for more time or more money to finish the tunnel.

Tip: Always track your tbm’s progress and keep records of any tunnel deformations or jams. Good records help you explain delays and cost increases to your client.

Contract clauses and risk allocation

Your contract sets the rules for what happens when a tbm tunnel jam occurs. Some contracts have clear rules about who pays for extra cost or who gets more time if the tbm gets stuck. These rules are called contract related factors. You must read your contract carefully before you start the tunnel project. If your contract does not cover tbm jams, you may have to pay for the extra cost yourself.

Risk allocation is a big part of your contract. You want to know who takes the risk if the tbm jams. Sometimes, the owner takes the risk. Other times, you as the contractor take the risk. If you know the risks, you can plan better and avoid surprises. You can also use your knowledge of tbm machines and tunnel conditions to lower your risk.

Here is a table that shows how expertise in tunneling equipment and risk management helps you handle contract variations:

When you work with a partner like CEGC, you get access to experts who know tbm machines and tunnel risks. This helps you avoid jams and manage your contract better.

Variation claims process in tunneling

When tbm tunnel jams can cascade into contract variations, you must follow a clear process to make a claim. First, you need to show proof that the tbm jam happened and caused a delay or extra cost. You should keep detailed records of the jam, the tunnel conditions, and any deformation. Real-time monitoring systems help you collect this data.

Here is a table with best practices for documenting tbm tunnel jams to support your variation claims:

You must submit your claim to the project owner or engineer. Your claim should include all records, photos, and reports about the tbm jam. You should also explain how the jam changed your project timeline and cost. Most contracts allow you to ask for more time or more money if you can prove the jam was not your fault.

You may see these typical contract variations:

• Time extensions for your project

• Cost adjustments for extra work or repairs

• Changes to tunnel design or support methods

If you use the right process and keep good records, you can protect your company from losing money when tbm tunnel jams can cascade into contract variations. CEGC supports you with advanced tbm machines, real-time monitoring, and expert advice to help you manage these risks and keep your tunnel project on track.

You notice tbm tunnel jams can really mess up tunnel jobs. You handle risks better if you know how tbm works and how the ground acts. You get ready for delays and use tbm tests to spot trouble early. You pick the best tbm for the tunnel’s ground. You stop contract changes by making tunnel rules clear.

• You learn about tbm problems to help manage tunnels.

• You check tunnel movement and shaking to stop delays.

• You use tbm tests to guess tunnel risks.

• You pick tbm by looking at tunnel ground.

• You get ready for jams in deep tunnel rock.

FAQ

What is a tbm and how does it work?

You use a tbm to dig tunnels underground. The tbm cuts through soil or rock. It moves forward as it builds the tunnel behind it.

How do you prevent a tbm from getting stuck?

You check the ground before starting. You watch the tbm closely during work. You keep the tbm in good shape and fix problems fast.

What should you do if your tbm jams during a project?

You stop the tbm right away. You check what caused the jam. You follow safety steps. You use special tools to free the tbm and keep records.

Tip: Always train your team on tbm safety and jam recovery steps.
