High torque is useless if the TBM machine overheats. It's important to understand that heat in a tunnel boring machine can lead to operational failures. Overheating negatively impacts the performance of the machine. CEGC offers innovative solutions to prevent these issues with TBM and microtunnelling machines. Ensuring your machine operates efficiently is crucial for the successful completion of your projects.
Key Takeaways
-
High torque can make TBMs get too hot, which hurts how well they work. Watch both torque and temperature to keep the machine working well.
-
Regular checks and care are very important. Use thermal imaging and condition monitoring to find heat problems early and keep work going.
-
Use good cooling methods, like better cooling systems and smart designs, to control heat and help your TBM work well.

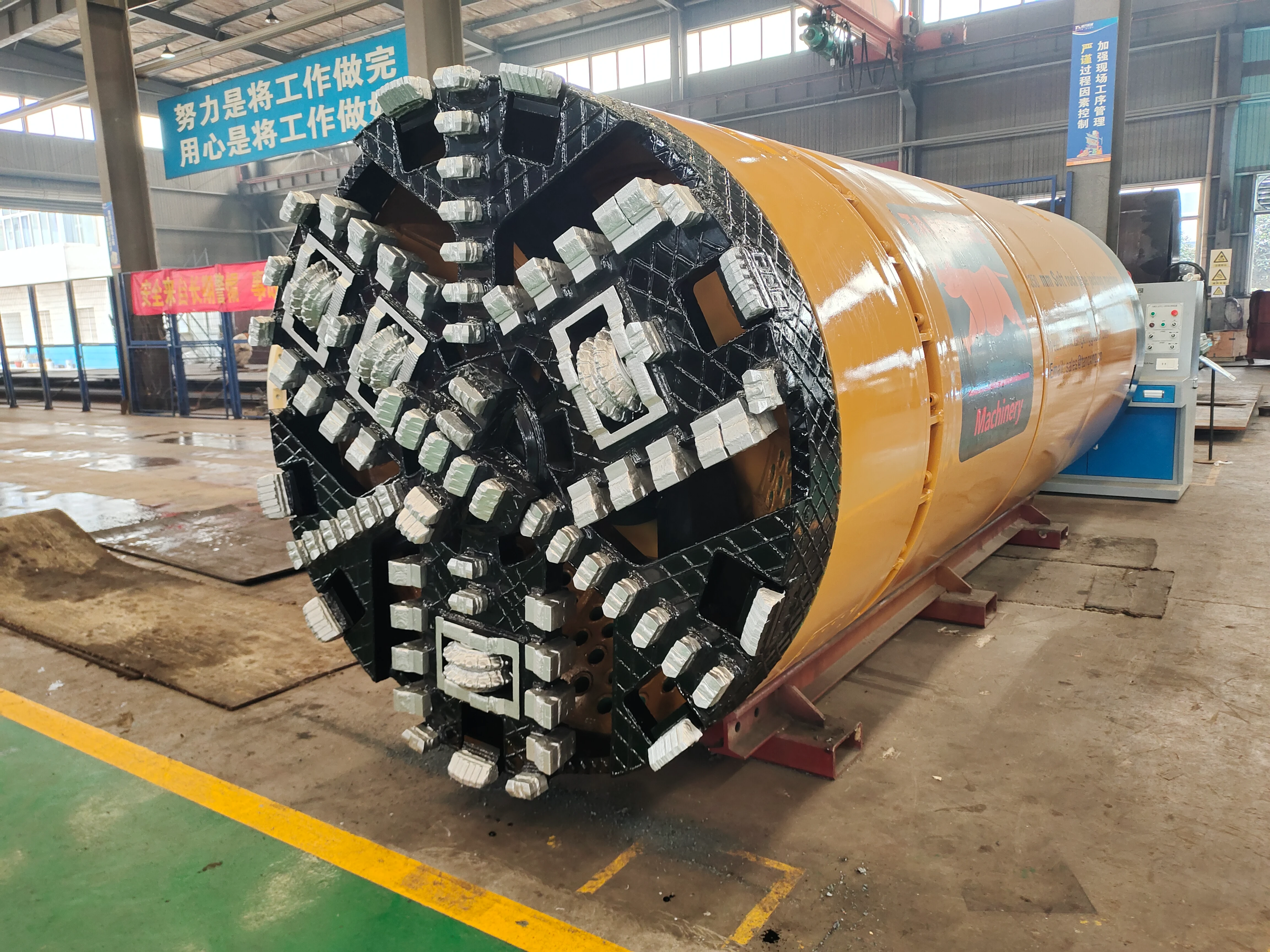

High torque is useless if the TBM machine overheats: causes and connections
Torque, heat, and TBM performance
It is important to know how torque, heat, and performance are linked in a tunnel boring machine. When you use high torque, the TBM cutterhead pushes harder into the ground. This helps the machine cut through hard soil or rock. But high torque does not help if the TBM machine gets too hot. Tunneling makes friction between the cutter and the ground. Friction creates heat. If you use more torque, the heat goes up too.
Here are some main ways heat builds up in your TBM machine:
-
Friction happens when the cutterhead turns against soil or rock.
-
Energy is lost when rocks and soil break apart.
-
The hydraulic system makes heat as fluids move.
-
Electrical parts add more heat to the machine.
When you work in hard or mixed ground, the cutterhead faces more pushback. This means you need more torque, which makes even more heat. If you do not control this heat, the machine will not work well. The cutterhead can wear out faster, and breakdowns can happen more often. You want your TBM tunnel boring machine to work well, so you must watch both torque and temperature.
Why overheating negates efficiency gains
You might think that more torque makes the machine work better. But high torque does not help if the TBM machine gets too hot. Overheating takes away the good things you expect from higher torque. When the machine gets too hot, many problems can start.
|
Problem Area |
Impact on Performance |
|---|---|
|
Hydraulic systems |
Heat from fluid friction can cause failures and slow down tunneling. |
|
Limited air circulation |
Heat stays trapped, which shortens the life of machine parts. |
|
High ground temperature |
Heat cannot escape, so efficiency drops. |
|
Electrical components |
Extra heat can damage these parts and stop the machine. |
|
Faulty hydraulics |
More friction means more heat and possible system damage. |
|
Worn parts |
Friction rises, oil gets hotter, and the risk of overheating grows. |
|
Cooling systems cannot work well, so heat builds up. |
If the TBM machine gets too hot, lubricants can stop working. Without good lubrication, bearings and seals can break. This makes more friction, more heat, and can even break the machine. You might have project delays and spend more money. The machine works less well, and you lose the good side of high torque. In tunneling, every part of the machine should work together. Overheating stops this teamwork and hurts how well the machine works.
Key risk factors for overheating
You should know the main risks that make your TBM tunnel boring machine get too hot. High torque does not help if the TBM machine overheats, so you need to look out for these problems:
-
Poor ventilation keeps heat inside the machine.
-
Internal friction goes up if there is not enough lubrication or parts are not lined up right.
-
Overexcavation pushes the machine too hard, making more heat.
-
Clogged cooling systems cannot get rid of heat fast enough.
-
Hydraulic system overload makes the oil and other parts hotter.
The cutterhead design is also important. Friction between the cutter and soil makes the cutterhead hotter. If mud builds up on the cutterhead, it keeps heat from leaving. Harder ground or big rocks make you use more torque, which means more heat.
Lubricant breakdown is another risk. When lubricants stop working, important parts like bearings and seals can get hurt. This damage makes more friction and heat, which can break the machine. You want to avoid these risks to keep your tunneling project going well.
CEGC makes TBM and microtunnelling machines with standard features and special options for your project. You can pick features that fit your ground and project needs. This helps you control torque, heat, and efficiency so your machine works well on every tunneling job.
Protecting efficiency: solutions for TBM overheating
Cooling and thermal management strategies
You need to keep your tunnel machine working well. Use smart cooling and thermal management to help. High torque works best if you control heat. Check the table below to see ways to boost efficiency and productivity:
|
Strategy |
Description |
|---|---|
|
Enhanced Cooling Systems |
Use strong heat exchangers or coolant fluids for tough jobs. |
|
Regular Maintenance |
Check hydraulic systems and seals often to stop leaks and lower heat. |
|
Optimized Design |
Pick designs that let air move and heat leave easily. |
|
Monitoring and Control |
Put sensors in place to watch oil temperature and change operations before overheating happens. |
These ideas help you keep efficiency high. They also support careful drilling. You can avoid downtime and keep productivity strong.
Maintenance and system monitoring
You must focus on maintenance to keep your machine working well. Regular maintenance, like Time-Based Maintenance, stops failures that cause overheating. Planned maintenance fixes problems such as lubricant breakdown. Change maintenance times based on your tunnel environment. This keeps performance steady and boosts productivity.
Use monitoring tools to spot overheating early. Thermal imaging uses infrared cameras to find hot spots. Thermographic maintenance scans electrical cabinets to stop failures. Condition monitoring checks vibration, heat, and current signals. These tools help you plan maintenance and keep efficiency high.
CEGC’s technical solutions for reliable TBM operation
CEGC gives you technical solutions to protect efficiency and performance. Modular design lets you build and move your tunnel machine fast. Service-friendly layouts make maintenance easier and quicker. Project support packages include training, commissioning, spare parts, and maintenance scheduling. These features help you keep efficiency and productivity strong. You get reliable drilling and steady performance for every tunnel project.
Tip: Pick CEGC’s customizable solutions to fit your maintenance needs and ground conditions. This keeps efficiency strong and supports productivity.
You cannot get good performance with high torque if your tunnel machine gets too hot. When the cutterhead gets hotter, the machine slows down and does not work as well. Cooling systems help keep motors and electronics safe, so the machine works better. Watching the machine all the time and fixing problems early makes it safer and helps it work better. You can ask CEGC for help to get the best performance.
-
The cutterhead got up to 75 °C, which is twice as hot as normal, and this made the machine not work right.
-
Watching the machine in real time stops surprise problems and helps it work better.
|
Benefit Type |
Description |
|---|---|
|
Customized Equipment Manufacturing |
Special solutions for tunneling and mining jobs. |
|
Expert Technical Consulting |
Help with planning and making your project better. |
|
Job Site Assembly |
Putting the machine together and testing it at your site. |
|
Trenchless Support |
Engineering help for microtunnelling jobs. |
|
Comprehensive Training |
Classes on how to use, fix, and stay safe with the machine. |
|
Spare Parts Inventory |
Fast delivery of parts so you do not have to wait long. |
FAQ
What makes drilling important for infrastructure projects?
Drilling is needed to build strong things like roads and tunnels. It helps make paths for cars, trains, and pipes. This work keeps cities and the countryside safe and working well.
How does a crawler-mounted rock drill help in mining and infrastructure?
A crawler-mounted rock drill can break rocks quickly. It moves easily over bumpy ground. This machine helps people finish mining and building jobs faster and safer.
Why do you need special drilling machines for mining operations?
Special drilling machines are used in mining because they can break hard rocks. These machines make mining safer and help workers get more done. They also help build big projects.
