You face many problems in horizontal directional drilling. It is hard to find utilities. It is tough to handle drilling fluid. Hard soil and broken equipment can make you slow down. Horizontal Bore Drilling Smooth Coating Cuts Delays by making less friction and wear. CEGC helps you fix these problems with standard and custom drilling machines.
Key Takeaways
-
Smooth coating on drilling tools makes less friction and less wear. This helps drilling go faster and tools last longer. - Good planning and making drilling equipment fit the job can cut project delays. It also lowers risks to the environment. - Using new technology and watching drilling in real time makes drilling more accurate and faster. This helps stop expensive mistakes.

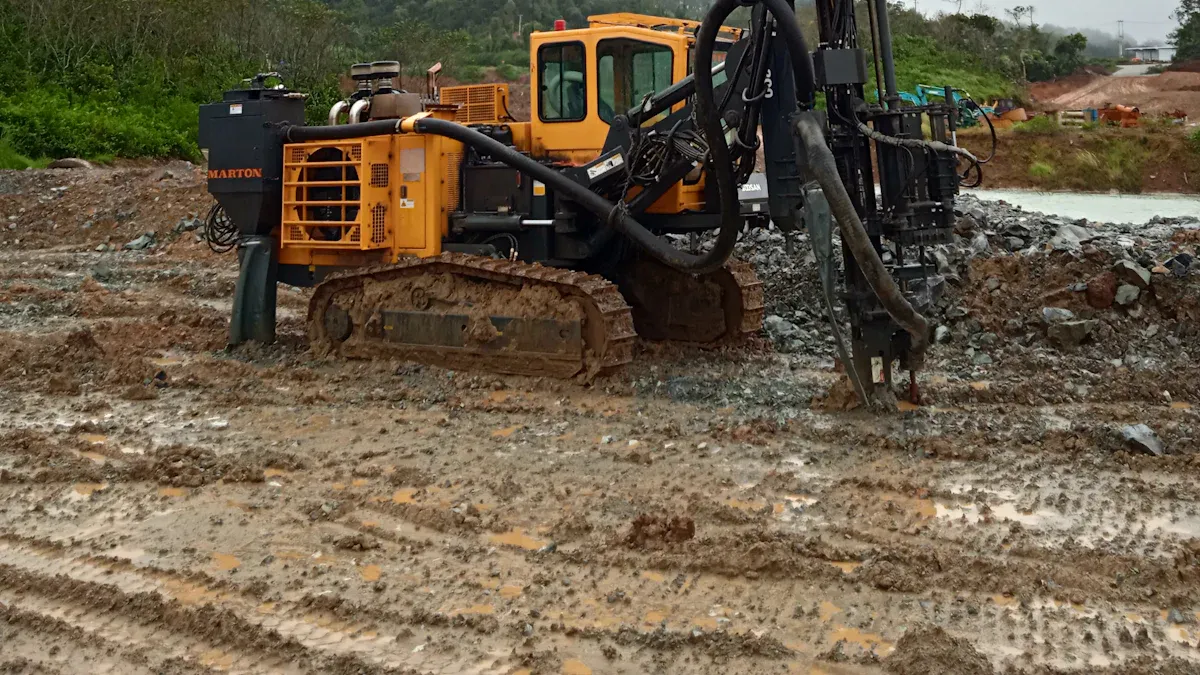

Horizontal Bore Drilling Smooth Coating Cuts Delays
HDD Process Overview
HDD lets you put pipes and cables underground. You do not need to dig big trenches. The operator moves the drill head along a planned path. You avoid things in the way and keep utilities safe. Special tools help you control where and how deep you drill. This method works well in hard places and busy sites.
Smooth Coating in HDD
You put smooth coating on drilling tools and pipes. The operator notices less friction and less tool wear. Smooth coating helps you drill faster and keeps tools safe. You can see tool life and friction changes in the table below:
|
Coating Type |
Tool Life (mm) |
Tool Wear (mm) |
Friction Reduction |
|---|---|---|---|
|
Diamond Coated (DLC) |
28,000 |
< 0.3 |
Significant |
|
Uncoated |
N/A |
N/A |
N/A |
|
AlTiN Coated |
N/A |
N/A |
Limited |
Better coatings make tools last up to 50% longer in tough spots. You spend less time fixing tools and more time drilling. Smooth coating keeps tools safe from rust and damage.
Project Delay Reduction
Horizontal bore drilling smooth coating makes work faster and safer. You finish projects sooner. You avoid expensive repairs and stick to your schedule. ARO coatings protect pipes from rough materials and lower the chance of problems. You check where pipes are to avoid mistakes. One project finished in 18 months because smooth coating and fast work helped the operator. CEGC gives you standard and custom choices for hdd machines. You pick what works best for your job.
Core HDD Pain Points & Solutions
Bore Deviation & Guidance
Bore deviation happens when the drill does not stay on the planned path. This can hurt utilities and cause expensive mistakes. Many things can make bore deviation happen in horizontal directional drilling:
-
Drilling methods can change the direction of the hole.
-
The ground’s density and hardness affect the drill’s path.
-
Changes in hole size can cause big deviations.
-
Making the hole too wide can make the drill bit wander.
-
Mud pressure and drill string shaking can move the bore.
-
Digging too much or operator mistakes can create big gaps.
Modern guidance systems help you control the drill better. You can use tools that measure in real time, like the At Bit Inclination Assembly. These tools help you steer faster. They keep the bore on track, even in hard ground. Keeping the right specs during pilot bore drilling is very important. You need to control the elevation exactly. This makes sure the bore follows the right curve. Good control helps you avoid problems and keeps utilities safe.
|
Feature |
Description |
|---|---|
|
Technical Hole Deviation (THD) |
Shows the difference between the real and planned well paths. This helps you steer better. |
|
Benefits for Geologists |
Lets you see the survey, well plan, and beds together. This helps steering and talking to others. |
|
Benefits for Operations Staff |
Gives you a 3D view of the site. This helps share knowledge. |
|
Benefits for Directional Drillers |
Gives important info for making changes, especially in tricky curves. |
Stuck Pipe & Equipment Wear
Stuck pipe and equipment wear are common hdd problems. These issues can stop your project and break your tools. The main causes are:
-
High pressures trap the casing string against the ground.
-
Key seating happens when narrow holes make the drill string wear grooves.
-
Cuttings build up from bad hole cleaning, causing pack-offs.
-
Shale swelling and hole collapse.
-
Plastic-flowing ground, like salt, and bridging.
Smooth coating on tools lowers friction and wear. This helps you drill longer without stopping to fix tools. You also need anti-stall powertrains and advanced drill heads for tough jobs. Customizing your tools, like changing tooth angles and using strong materials, makes them work better and last longer. These fixes help you beat worksite problems and keep your hdd project moving.
Fluid Management & Environmental Risks
Managing fluid is important for work and the environment. Bad fluid control can cause frac outs, where fluids leak into wetlands and rivers. Some fluids have things that can hurt nature. Cleaning up spills can harm plants and raise risks for local life.
You can use eco-friendly products, like WASTE LOCK®, a super absorbent polymer. It turns waste solid and stops leaks. This product soaks up lots of water-based liquids and is safe and breaks down naturally. Good fluid management, like recycling and proper disposal, helps lower environmental harm. You need to watch fluid flow and pressure all the time to stop spills and protect nature during work.
Planning & Customization
Good planning is needed for a successful horizontal directional drilling project. You should start with detailed surveys and site checks. These steps help you learn about soil, rock, and water before drilling starts. Finding problems early, like weak soils or high water pressure, lets you make smart fixes.
You can change drilling fluid to keep the hole stable and handle cuttings. Advanced tools, like steerable drill heads and reamers, work best when matched to the job. Watching drilling details, like pressure, torque, and fluid flow, lets you adjust quickly.
Customizing your hdd tools makes projects better. You can change tooth angles on augers to drill faster in rock. Double-flight designs remove spoil quickly and keep drilling smooth. Precise tool design lowers shaking and wear, which makes drilling better and more efficient. Using strong materials makes tools last longer and cuts downtime, especially in rough soils.
Tip: Always do careful surveys and pick the best crossing spots to lower risks in cities and sensitive places.
You can solve many hdd problems by planning well, using new technology, and customizing for your needs. This helps you protect utilities, lower environmental harm, and finish your project on time.

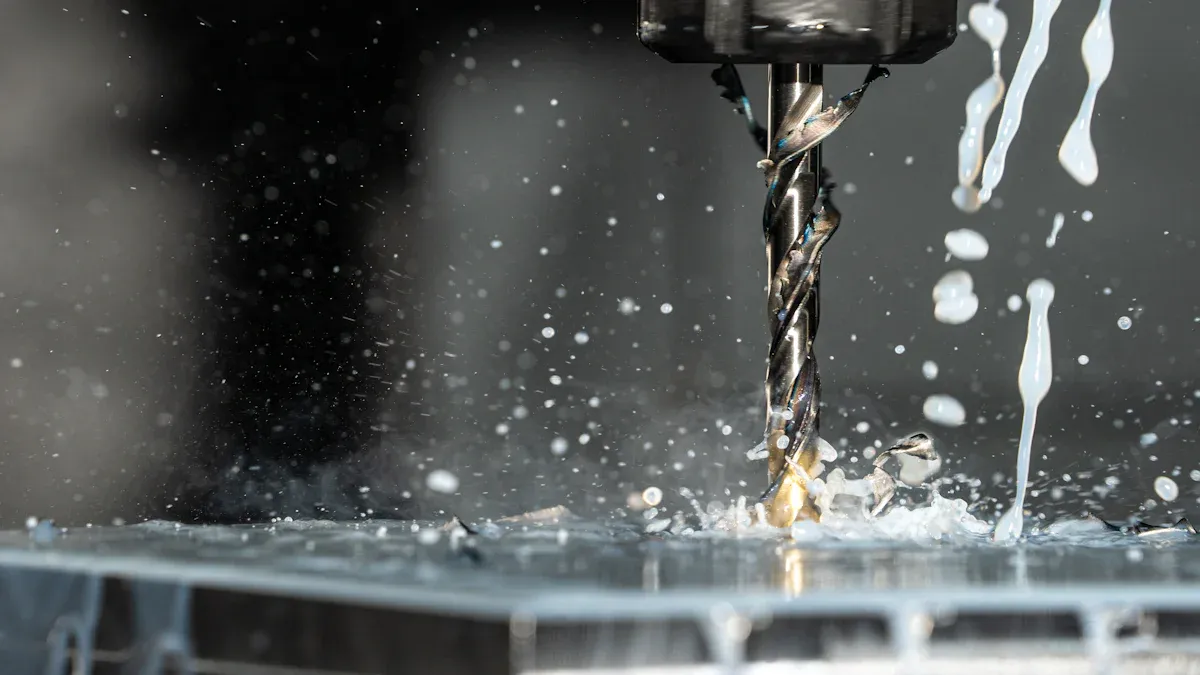

Advanced Technologies in Horizontal Directional Drilling
Tooling & Control Systems
You notice big improvements in hdd with new tools and systems. Modern tools help you drill quicker and safer. You use telematics to watch your equipment and keep it working longer. Enhanced diagnostics let you find problems fast without waiting for help. Dropped carbide hardfacing makes tools last longer in tough places. Automation features make your job easier and help tools work better. You also use autonomous RSS for steering and high-speed telemetry for real-time changes. Deep directional resistivity helps you steer in tricky ground.
|
Technology |
Description |
|---|---|
|
Telematics |
Remote tracking helps manage equipment and boost work. |
|
Enhanced Diagnostics |
Onboard checks help operators fix problems faster. |
|
Dropped Carbide Hardfacing |
Strong materials make tools last longer in rough spots. |
|
Automation Features |
Advanced controls make work simpler and more reliable. |
Integration with Trenchless Drilling Rigs
You mix advanced hdd with trenchless rigs to solve hard jobs. In October 2023, a project in Alberta used gyroscopic steering to add a cathodic protection system under a storage tank. The operator placed anodes very accurately, even with magnetic interference. Brownline’s Drillguide Gyro Steering Tool helped you drill exactly where needed. This shows how advanced hdd and trenchless rigs work well together in cities and tough places.
Custom Solutions for HDD Projects
You need custom solutions for each hdd project. CEGC gives you special equipment, expert advice, and help with installation. You get trenchless engineering support for pipe jacking and microtunnelling in hard spots. Training programs teach you how to use, fix, and stay safe with equipment. Custom solutions make well time shorter by 4%, speed up building by 12%, and save up to 1,000 minutes in connection times. You work with suppliers to match fluids to the ground. Groups like PHMSA and OSHA set rules for safety and protecting nature.
|
Service Type |
Description |
|---|---|
|
Tailored Equipment Manufacturing |
Custom equipment made for special project needs. |
|
Technical Consulting Services |
Help with planning, picking tools, and checking the ground. |
|
On-Site Installation Services |
Factory-trained workers install and test equipment. |
|
Trenchless Engineering Support |
Help for hdd, pipe jacking, and microtunnelling in tough places. |
|
Training Programs |
Learn how to use, fix, and troubleshoot equipment. |
Tip: Always pick tools and fluids that fit the ground for best results.
Smooth coating and advanced tools help you finish jobs quickly. You and the operator work together in hard conditions. This teamwork saves time on the project. CEGC gives you machines that meet market standards. You also get custom solutions for each installation.
Pick CEGC for your next project. You will get results you can trust.
FAQ
What makes horizontal bore drilling important for utilities?
You use horizontal bore drilling to put utilities under roads, rivers, and buildings. This way, you do not have to dig up streets or stop traffic. It keeps other utilities safe and helps cities run smoothly.
How does smooth coating help in tough ground conditions?
Smooth coating means there is less friction and tools do not wear out fast. This lets you drill through hard ground without many problems. You can finish putting in utilities faster and with less risk.
Why should you consider geotechnical surveys before drilling?
Geotechnical surveys tell you about the soil and rock underground. These surveys help you find problems before you start drilling. You can plan better and keep everyone safe in busy city areas.
