The micro tunneling thrust balance keeps line and grade tighter, ensuring precision in your underground projects. This is achieved through the use of effective guidance systems and robust tunnel equipment. CEGC is here to assist you in achieving the right alignment, which minimizes costly corrections and accelerates project completion. Proper alignment not only enhances the safety of the structure but also ensures that your underground installation is strong and operates efficiently.
Key Takeaways
-
Thrust balance is very important for keeping the right line and grade in microtunneling. It helps the tunnel machine stay on the path. This lowers the chance of expensive mistakes.
-
Advanced guidance systems use lasers and sensors. These tools let workers make changes right away. This helps the project run smoothly and cuts down on errors during pipe jacking.
-
Doing things the best way, like using the same steps and fixing problems before they get big, makes tunneling more reliable. Talking clearly with your team helps everyone do well.
Thrust Balance in Microtunneling
What Is Thrust Balance?
If you want to do well in microtunneling and pipe jacking, you must know about thrust balance. Thrust balance means you control the pushing force of the tunnel machine. In microtunneling, many important parts work together to keep things steady:
-
Thrust system: The thrust plate and jacks push the tunnel machine forward.
-
Cutting head: This part uses disc cutters or an auger to break up soil as you move forward.
-
Main beam: It gives the tunnel machine strength and support.
-
Guidance system: Laser technology helps you keep the tunnel machine on the right path.
You check thrust balance by seeing how these parts work together. Each part needs to do its job so your microtunneling project stays on track.
Why Thrust Balance Matters for Line and Grade
Thrust balance is important for keeping your pipe jacking drive straight. When you control thrust, you guide the tunnel machine along the planned line and grade. This makes your microtunneling project safe and efficient. Here’s how thrust balance helps:
-
It gives steady support during pipe jacking.
-
It manages the forces on the pipe, so you get an accurate path.
-
Guided thrust systems help you stay on course, even in tough soil.
-
Balanced thrust protects your pipes from damage and keeps them strong for years.
You also need to follow industry standards for thrust balance. These standards cover thrust capacity, advance rates, steering accuracy, and quality checks. The table below shows some important aspects:
|
Aspect |
Details |
|---|---|
|
Thrust Capacity |
Evaluate thrust capacity in different soil types. |
|
Advance Rates |
Assess advance rates in varying soil conditions. |
|
Steering Accuracy |
Review specifications for steering accuracy. |
|
Quality Assurance Processes |
Inquire about material traceability and non-destructive testing (NDT) protocols. |
|
Factory Acceptance Testing |
Assess factory acceptance testing (FAT) procedures for critical components. |
|
After-sales Support |
Consider warranty terms and technical support response times. |
When you use proper thrust balance in microtunneling and pipe jacking, you get better results in trenchless pipeline installation. You avoid costly mistakes and make sure your project lasts.

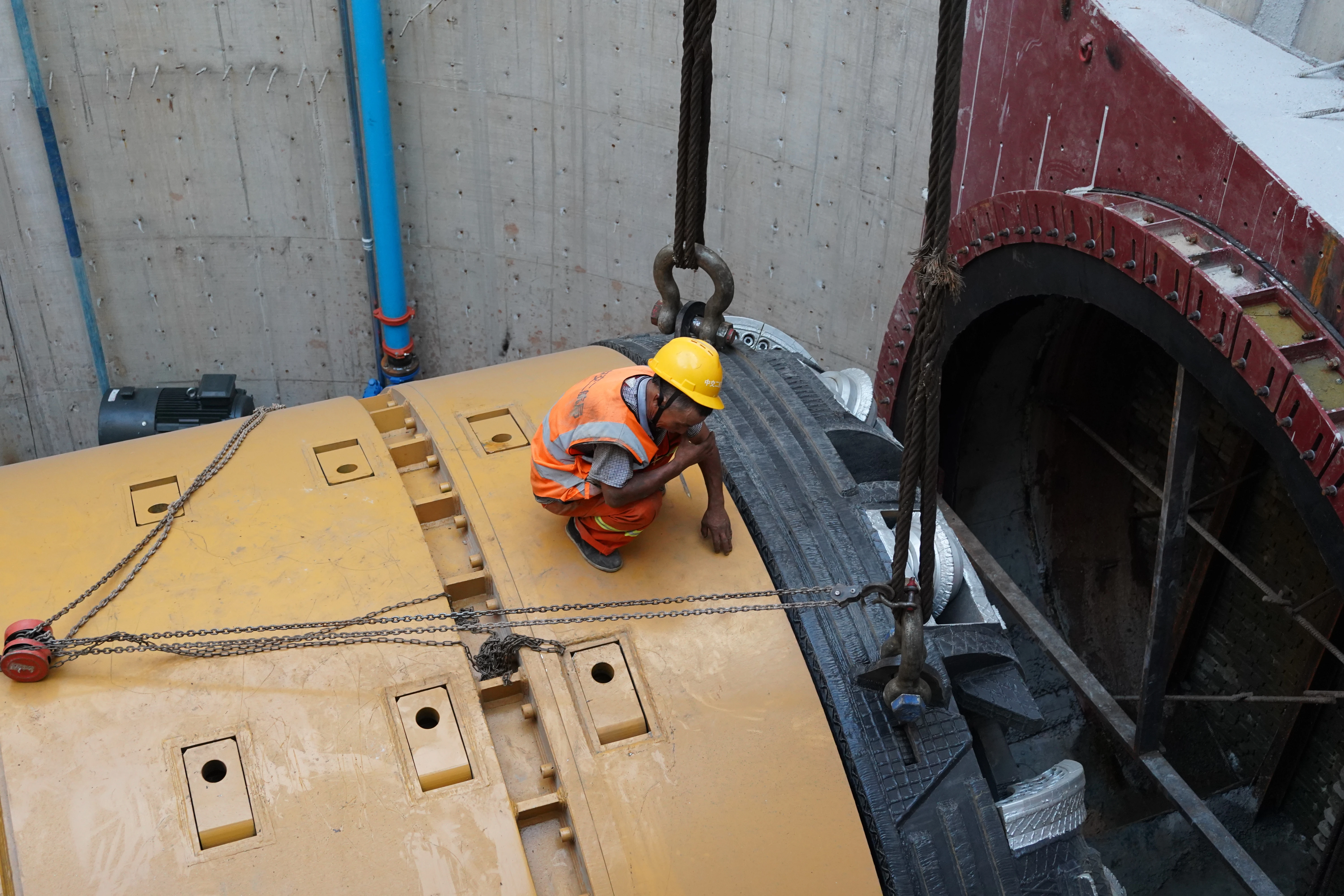

How Thrust Balance Keeps Line and Grade Tighter
Mechanics of Balanced Thrust
It is important to know how balanced thrust works in microtunneling and pipe jacking. When you balance thrust, slurry, and earth pressures, the tunnel stays on course. The micro tunneling thrust balance keeps line and grade tighter by making sure all forces work together. This balance helps you keep grade and line accurate.
The microtunneling boring machine can handle different ground conditions. Its cutting head works with many types of soil. The advanced slurry system keeps the tunnel face steady. It changes the bentonite mixture and pressure to match the soil. You get feedback from the ground right away, so you can adjust fast.
Operators use remote controls to run the microtunneling system. You watch the machine’s position and change the jacking thrust loads. This keeps the tunnel on the planned path. If you balance thrust, slurry, and earth pressures, you stop tunnel deviation. This is how micro tunneling thrust balance keeps line and grade tighter during pipe jacking.
Here is a table showing the main mechanical principles behind balanced thrust:
|
Mechanical Principle |
Description |
|---|---|
|
Transmission of jacking force |
The jacking force goes through the pipe to the excavation face, giving you strong thrust. |
|
Use of thrust blocks and thrust rings |
These parts spread the forces evenly during jacking. |
|
Importance of pipe material strength |
The pipe must be strong enough to handle high compressive forces during pipe jacking. |
|
Accuracy of alignment and grade |
You need precise alignment and grade to get balanced thrust every time. |
When you follow these principles, trenchless pipeline installation becomes more reliable. You also lower the risk of costly rework. The micro tunneling thrust balance keeps line and grade tighter, so your project stays on schedule.
Real-Time Guidance and Steering
You use advanced guidance systems to keep your tunnel machine on track. Laser guidance and gyro systems give you real-time data. The laser system shines a beam onto a target board inside the tunnel. This shows the exact line and grade. You can see if the tunnel boring machine needs to change its path. The gyro system works even when you cannot see straight ahead. This helps in complex or curved tunnels.
Operators use sensors and automated steering controls to make small changes. You track the tunnel’s position all the time. If you notice a change, you adjust the steering right away. This process helps you keep the tunnel boring machine on the planned line and grade. The micro tunneling thrust balance keeps line and grade tighter by letting you react quickly to any shift.
Here are the main technologies used for real-time guidance and steering:
-
Enhanced guidance systems
-
Laser guidance
-
Sensors
-
Automated steering controls
You also benefit from constant tracking. You make real-time changes during pipe jacking. This lowers mistakes and keeps your project efficient. The micro tunneling thrust balance keeps line and grade tighter, so you spend less time fixing errors. You finish your pipe jacking job faster and with better results.
Tip: Always check your tunnel machine’s position and adjust as needed. This keeps your trenchless pipeline installation on the right path.
The micro tunneling thrust balance keeps line and grade tighter in every step of pipe jacking. You get better accuracy, less rework, and a more reliable installation.
Achieving and Monitoring Thrust Balance
Key Equipment and Technologies
You need the right machines to keep your project on track. The main machines are the Microtunnelling Machine, TBM machine, and auger boring machine. These machines use smart controls to manage thrust and alignment. Earth Pressure Balance Machines work best in soft ground. They change the pressure in the cutterhead chamber to keep the tunnel face safe. High-pressure seals stop water from getting into the tunnel. Thrust cylinders help line up each tunnel segment as you build. Digital guidance systems show the exact path for the tunnel.
Here is a list of important system parts:
-
Cutterhead and cutting tools for different soils
-
High-pressure seals for water control
-
Thrust cylinders for segment alignment
-
Digital guidance system for tunnel accuracy
Operational Best Practices
You should follow good steps to keep your system working well. These steps help you avoid mistakes during pipe jacking and building. The table below shows some important steps:
|
Best Practice |
Description |
|---|---|
|
Consistent Operational Procedures |
Do the same steps every day to make progress and avoid problems. |
|
Effective Communication |
Talk clearly with your team so everyone knows what to do. |
|
Preventive Maintenance |
Check and fix your system often to stop breakdowns. |
|
Thorough Documentation |
Write down what happens during construction to help with future projects. |
Tip: Good records help you fix problems faster and make your system better for the next job.
Common Challenges and Solutions
You might have problems with your system during building. Sometimes, the tunnel machine needs quick changes to keep thrust balance. You can use smart controls to help. Here are some common ways to solve problems:
|
Method |
Description |
|---|---|
|
Backpropagation Neural Networks |
This system changes thrust balance using real-time data. |
|
Fuzzy Inference Network |
This model uses earth pressure, thrust force, and speed to make changes during building. |
|
Least-Squares Support Vector Machine |
This system checks advance speed and conveyor speed to keep earth pressure steady. |
|
Feedforward–Feedback Compound Method |
This method controls support pressure based on thrust force and conveyor speed. |
You can always ask CEGC for help. Their team gives you advice on system setup, pipe jacking, and building. They help you fix problems and keep your project moving.
When you use thrust balance in microtunneling, your tunnel stays on track. This method helps you make fewer mistakes and spend less money. Look at the benefits below:
|
Benefit |
Description |
|---|---|
|
Advanced Precision |
You can line up the tunnel well and make fewer mistakes. |
|
You keep roads, plants, and daily life safe from harm. |
You can trust CEGC for help and the newest tunnel machine tools.
FAQ
How do you monitor tunnel alignment in real time?
You use laser guidance and sensors to help. These tools show where the tunnel machine is. You can change the steering to keep the tunnel on track.
What quality tests do you perform after pipe-jacking?
You check if the pipes are straight with CCTV surveys. You test the hydraulic pressure to make sure it is right. You look at records to see if the tunnel meets the project rules.
How does CEGC support Microtunnelling Machine launch and breakthrough?
You get help from CEGC experts. Their team helps you set up and guides you. They also help fix problems. You can find resources for tunnel machine and TBM machine work.
