Pressure swings can stop a TBM tunnel instantly, leading to significant challenges in large projects when machines cease operation. These stoppages can result in substantial financial losses. For instance:
-
The Uma Oya Multipurpose Development Project experienced a nine-year delay due to unstable ground and water pressure.
-
These delays resulted in over 700 million USD lost in power generation, along with 110 million USD lost in irrigation, and an additional 12.7 million USD lost in water supply.
To mitigate these risks, it is crucial to match your tunnel machine to the specific ground conditions. CEGC is here to assist you in selecting the right machine, ensuring that you can manage pressure safely and effectively.
Key Takeaways
-
Pressure swings can stop a tunnel boring machine right away. This causes expensive delays and money problems.
-
Picking the correct TBM for the ground is very important. It helps avoid pressure swings and keeps the project safe.
-
Checking pressure levels in TBM machines often is helpful. It finds problems early and lets workers act fast to stop ground instability.

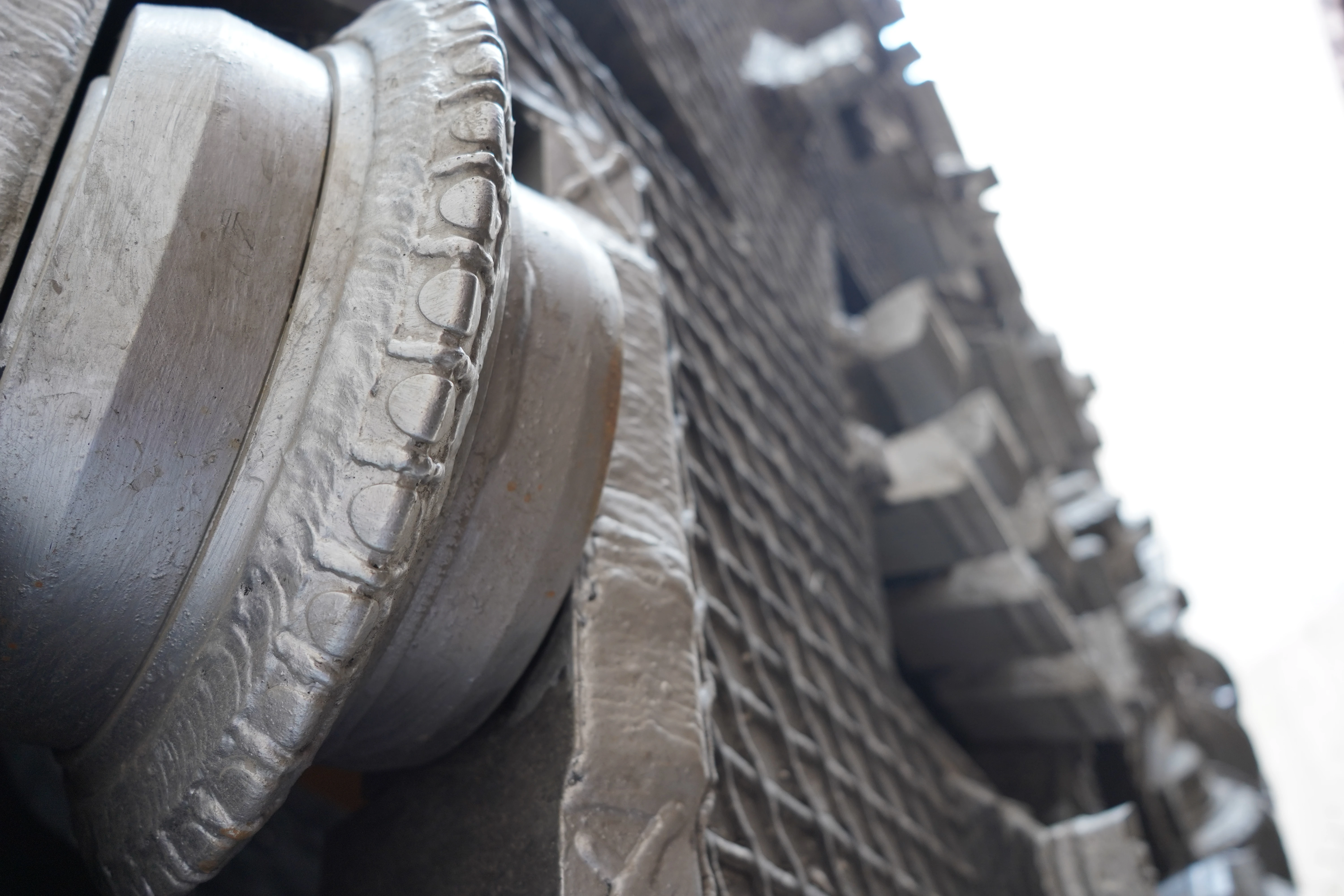

Pressure Swings Can Stop a TBM Tunnel Instantly
What Are Pressure Swings
Pressure swings can stop a TBM tunnel right away. You might ask what a pressure swing means. It is a quick change in pressure near the tunnel face or inside the tunnel boring machine. These changes happen fast. When digging underground, the ground and water push back with their own force. If this balance shifts too quickly, the ground can move or fall. Sometimes, air or water rushes in, making the pressure go up or down suddenly. Experts call this a pressure swing.
Causes of Ground Instability
Pressure swings can stop a TBM tunnel right away because they often make the ground unstable. Many things can cause the ground to become unsafe during tunneling. You should know what causes these problems so you can avoid them. Here is a table showing the most common reasons for ground instability:
|
Cause of Instability |
Description |
|---|---|
|
Fault Zones |
Weak spots in the ground that can collapse and trap the TBM. |
|
Rock Bursting |
Sudden rock breaking from stress needing special supports. |
|
High Water Inflows |
Fast water coming in that makes tunneling harder. |
|
Tough rock that can wear out TBM parts quickly. |
|
|
Squeezing Ground |
Ground that changes shape and makes tunneling harder. |
|
Fractured Rock |
Broken rock that lowers stability and causes surprise problems. |
|
Mixed-Face Conditions |
Finding different ground types in one tunnel. |
|
High Water Pressure |
Water pushing into the tunnel, risking floods and instability. |
|
Long Tunnels |
Long tunnels often have tough ground conditions. |
If you face any of these problems, pressure swings can stop a TBM tunnel right away. For example, if you hit a fault zone or an area with high water pressure, the ground can shift or fall. This can make the tunnel boring machine stop working fast.
Impact on Tunnel Boring Machine Operation
Pressure swings can stop a TBM tunnel right away by making the machine lose control of the ground ahead. When the pressure at the tunnel face changes quickly, soil or rock can fall into the tunnel. Water can rush in and flood the area. The tunnel boring machine may get stuck or buried. The machine’s cutters can wear out faster, so you need more repairs and spend more money.
If you do not match your tunnel machine to the ground, you risk many problems:
-
Face instability can happen if the TBM does not fit the ground.
-
Water can leak into the tunnel, making work unsafe.
-
The machine may move slower, causing delays and extra costs.
-
Hard or abrasive rock can wear out the machine’s parts quickly.
-
In the worst cases, the TBM can get jammed or trapped, stopping the project.
You must always pick a tunnel boring machine that fits the ground and water conditions. This helps you avoid sudden pressure swings and keeps your project safe and on time. Remember, pressure swings can stop a TBM tunnel right away, but with the right machine and good planning, you can keep your tunnel moving forward.
Tip: Always begin with a careful ground check. Knowing the soil, rock, and water conditions helps you choose the best tunnel machine for your project. CEGC can help you with this and guide you to avoid costly mistakes.
Earth Pressure Balance and TBM Safety
Maintaining Tunnel Stability
It is important to keep the tunnel safe when using a tunnel boring machine. Earth pressure balance helps you do this. This method lets you change the pressure at the tunnel face. When you control the pressure, you stop the ground from moving too much. You also lower the chance of the ground becoming unstable. This matters most in soft ground, where soil can shift or fall fast.
-
Earth pressure balance is needed to keep the tunnel face safe by changing the pressure.
-
Changing the pressure helps you stop the ground from moving during digging, especially in soft soil.
-
The right face support pressure is a key control. It helps you manage surface sinking and stops tunnel face problems.
If you do not keep the right pressure, the ground can become unstable quickly. Soil may fall into the tunnel, or water may rush in. You can stop these problems by using the right tunnel machine and keeping the pressure steady.
Monitoring Pressure in TBM Machines
You must check the pressure inside your tunnel boring machine all the time. Modern TBM machines have sensors that watch for pressure changes. These sensors give you data right away. You can see if the pressure is too high or too low. If you spot a sudden change, you can act fast to stop ground instability.
You should check the face support pressure often. This is the pressure that holds back the soil at the tunnel face. If this pressure drops, the ground can move and cause trouble. If it goes up too much, it can hurt the machine or the tunnel lining.
Tip: Always teach your team to read the pressure data and act quickly. Fast action can stop ground instability and keep your project safe.
Preventing Pressure Swings
You can stop pressure swings by following good steps. First, always match your tunnel machine to the ground. Use a tunnel boring machine that can handle the soil and water pressure you expect. Second, keep the face support pressure steady. Do not let it drop or rise too fast.
New technology helps you manage earth pressure balance better. Here is a table showing some new advancements:
|
Technology Type |
Features |
Application Area |
|---|---|---|
|
Mixed Shield TBM |
Uses parts from different machines to handle changing ground. |
Good for long tunnels with different ground. |
|
Variable Density TBM |
Has smart designs to stop clogging and fits soil conditions. |
Works well in tough ground. |
You can use these machines to lower the risk of ground instability. They help you keep earth pressure balance steady, even when the ground changes.
-
Keeping earth pressure balance is important for tunnel safety. It lets you control surface sinking and stop ground instability.
-
The right face support pressure is a key control. It helps you stop tunnel face problems.
-
In soft ground, the face support pressure spreads out like a trapezoid because of the weight of the slurry. This shape helps you stop the ground from moving too much.
When you use the right tunnel machine and follow these steps, you can keep your tunnel safe. You will avoid sudden stops and expensive repairs. Always remember, ground instability is a risk you can control with good planning and the right tools.

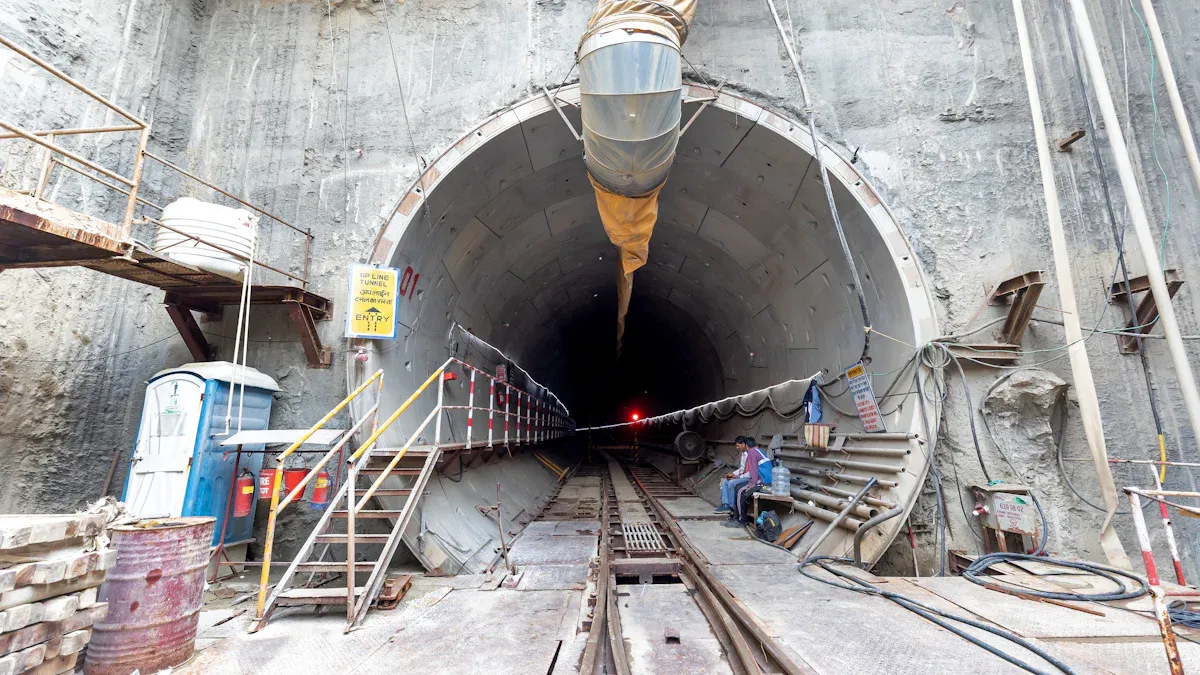

Solutions for Pressure Swings and Ground Instability
Real-World Examples
Pressure swings and ground instability can cause big problems for tunnel boring machines. For example, when using epb in soft ground, you must keep the pressure steady. If you do not, water can rush in and stop the digging. In some cities, high water pressure has made the ground fall during digging. This can trap the machine and delay the project. In hard rock, if you do not control the digging forces, the rock can break fast. This can hurt the machine and slow down the work.
Prevention Strategies
There are many ways to stop pressure swings and keep digging safe. The table below shows common solutions:
|
Solution Type |
Description |
|---|---|
|
Strong Supports |
Strong supports keep the tunnel safe and stop collapse while digging. |
|
Earth Pressure Balanced Mode (EPBM) |
Steady pressure at the tunnel face with epb lowers the risk of ground instability while digging. |
|
Grouting and Drainage Systems |
Sealing cracks and controlling water keeps the tunnel safe while digging. |
|
Regular Maintenance and Inspections |
Checking equipment often helps find problems early and keeps digging going. |
You must pick the right way to stop problems based on the ground. In soft ground, you use epb to balance pressure and support the soil while digging. In hard rock, you use strong forces to break the rock while digging. The table below shows the difference:
|
Mechanism |
Soft Ground (EPB TBM) |
Hard Rock (TBM) |
|---|---|---|
|
Pressure Control |
Balancing pressure stops ground movement while digging. |
Using strong pressure breaks rock while digging. |
|
Soil Support Medium |
Using dug-up soil for support while digging. |
Not needed while digging. |
|
Cutting Forces |
Not needed while digging. |
Using hydraulic jacks and shear forces while digging. |
CEGC Tunnel Machine Selection Guidance
You can stop pressure swings by picking the right tunnel boring machine for your project. CEGC helps you with this important step. You get expert advice and help choosing equipment. These services include picking machines and checking the ground. You learn which machine fits your ground and water needs. This helps you avoid pressure swings and stops while digging. You can trust CEGC to help you with every step of your tunnel project.
Tip: Always start with a full ground check. The right machine and steady pressure keep your digging safe and on time.
You can have big problems if pressure swings stop your tunnel boring machine. Earth pressure balance technology helps your project keep going. The table below shows how important settings can change stoppages. CEGC can help you pick the best machine for safe and steady work.
|
Parameter |
Impact on TBM Stoppages |
|---|---|
|
Advance Speed |
Makes the work faster |
|
Screw Conveyor Speed |
Helps stop the machine from stopping |
|
Screw Conveyor Torque |
Finds problems early |
|
Thrust Force |
Keeps the machine steady |
|
Cutterhead Rotation Speed |
Stops the machine from stopping fast |
Ask CEGC for expert help on your next tunnel job.
FAQ
What is the best tunnel boring machine for clay soil?
You should use a tunnel boring machine with earth pressure balance for clay soil. This tunnel boring machine keeps the ground stable and helps you avoid sudden pressure swings.
What happens if your tunnel boring machine hits unexpected rock?
If your tunnel boring machine hits unexpected rock, you may need to stop and check the ground. The tunnel boring machine can face damage or get stuck without the right tools.
How do you choose between an EPB and a slurry tunnel boring machine?
You should pick an EPB tunnel boring machine for clay or mixed soils. Use a slurry tunnel boring machine for sandy or water-filled ground. Each tunnel boring machine fits different conditions.
