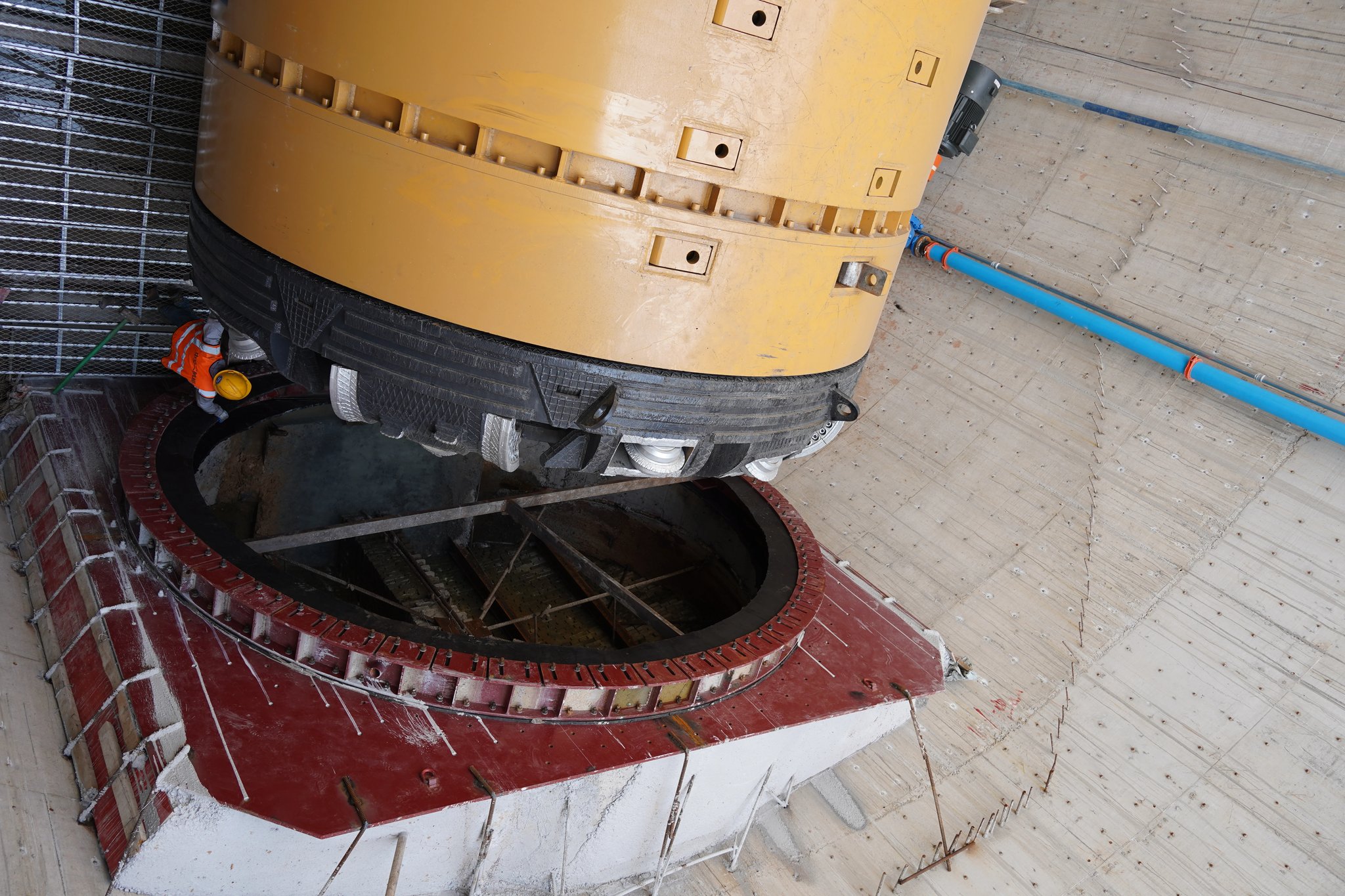

Yaw stability reduces offsets in a TBM tunnel

Yaw stability is essential for maintaining a straight tunnel, as yaw stability reduces offsets in a TBM tunnel. When you control yaw, your tunnel machine from CEGC stays precisely on track, helping to prevent costly errors and ensuring project accuracy. CEGC offers these advanced solutions:

With CEGC’s guidance systems, you achieve exact tunnel alignment and maximize cost savings by minimizing offsets in your TBM tunnel.

Key Takeaways

• Yaw stability is very important for tunnel boring machines. It helps the machine stay on the right path. This stops expensive mistakes and keeps the project correct.

• Advanced guidance systems watch yaw all the time. They help workers fix problems fast. This keeps the machine straight and lowers offsets.

• Good yaw stability keeps buildings near the tunnel safe. It also helps the project finish on time. This lowers danger and makes clients trust the work more.

Yaw stability in TBM tunneling

What is yaw stability?

You may wonder what yaw stability means in tunnelling. Yaw describes the left or right rotation of a tunnel boring machine as it moves forward. When you control yaw, you keep the machine from drifting off its planned path. Yaw stability means you keep this rotation steady. This helps you avoid sudden changes in direction. In tunnelling, even a small yaw error can lead to big problems with alignment. You want your tunnel machine to move straight ahead, not veer off course.

Role in tunnel machine alignment

Alignment is the most important factor in successful tunnelling. You need to keep your tunnel boring machine on the correct line and grade. If you lose yaw control, your alignment will suffer. This can cause the tunnel to miss its target. You may face extra costs or delays. CEGC provides guidance systems that help you monitor and adjust yaw. These systems give you real-time feedback. You can make quick corrections to keep your alignment perfect. High-rigidity structures in the tunnel machine also help you maintain alignment. You get less drift and more control. In urban tunnelling, alignment is critical. You must follow strict rules to avoid ground settlement. CEGC’s tunnel machines offer project-based customization. You can choose the best options for your alignment needs. Good yaw stability means you finish your project on time and within budget.

Yaw stability reduces offsets in a TBM tunnel

How offsets occur

Sometimes, a tunnel machine does not follow its planned path. This is called deviation. Many things can cause deviation and make an offset happen. Here are some common reasons:

• If the support is not strong enough, the tunnel boring machine can move off line.

• If you put segments in the wrong place, there can be gaps or things do not line up.

• Too much force from TBM thrust jacks can make the machine turn.

• If you push too hard, the tunnel machine can go the wrong way.

• If you do not control the machine well, it can move forward or around in the wrong way.

• If the loading shoes or support areas do not touch right, the machine can slip or twist.

Every small mistake adds up. Even little errors can become a big offset. In cities, you must keep the tunnel inside strict limits. Too much deviation can make the ground sink, hit pipes, or stop the project.

Impact of yaw stability on offset reduction

Yaw stability helps keep the tunnel boring machine heading straight. When you control yaw, the machine does not turn left or right by itself. This stops the machine from drifting away. If you lose yaw stability, the machine can move off the planned line. The tunnel might curve and miss where it should go.

Yaw stability makes sure each segment fits together the right way. You get a straight tunnel and do not need to fix mistakes. You also lower the chance of the ground sinking. Keeping deviation small protects buildings and pipes nearby. Yaw stability helps you follow city rules about ground movement. You avoid problems, delays, and extra costs. You also make it less likely for the project to fail.

Yaw stability gives you better control when digging the tunnel. You can react fast if the ground changes. The tunnel boring machine stays on track, even if the soil is different. This helps you finish faster and with fewer problems.

Achieving yaw stability in tunnel machines

There are many ways to keep yaw stability and stop deviation. CEGC has guidance systems that show where the tunnel machine is in real time. These systems use sensors and feedback to keep the machine on the right path. You can fix problems quickly if you see something wrong.

Strong parts in the tunnel boring machine help too. They stop the machine from twisting or bending. This keeps the machine steady, even when it is working hard. CEGC can change the tunnel machine to fit your project. You can pick the best guidance, controls, and accuracy.

Support systems are important for yaw stability. If you take care of them, the tunnel boring machine stays steady. Good grout mixing and pumping equipment can make the ground around the tunnel stronger. Earth Pressure Balance tunnel boring machines are another way to help. They keep the front of the tunnel safe in soft or wet ground. This lowers the chance of the machine moving off course or the ground sinking.

You can also use special tools like the Dynamic North-Finding Device. This tool uses MEMS technology to help you know exactly where the machine is and which way it is facing. You can fix any problem right away.

When you focus on yaw stability, you get many good things. You make the work safer and lower risks. You do not have to redo work and you finish on time. Yaw stability helps you stay inside city rules and lowers project risks. You also protect your good name and make clients trust you.

Tip: Always check your tunnel machine’s yaw and deviation. If you find problems early, you can fix them fast and stop bigger trouble.

If you pay attention to yaw stability, your tunnel can be very straight. This means there are fewer offsets, so the tunnel is safer and costs less. CEGC gives you tunnel machines made just for your project. Here is how you can get help:

FAQ

What does yaw stability mean for a tunnel machine?

Yaw stability means your tunnel machine stays on its planned path. You avoid left or right turns that cause tunnel offsets.

How does CEGC help you reduce tunnel offsets?

CEGC gives you advanced guidance systems. You get real-time feedback and strong machine structures. These features help you keep your tunnel straight.

Why should you care about tunnel offsets in urban projects?

You must follow strict city rules. Offsets can cause ground movement, damage pipes, or stop your project. Yaw stability keeps your work safe and approved.
