Portal crane: limit protection for rail alignment

You have big problems when you run a portal crane: limit protection for rail alignment. If rails move, wheels and parts wear out faster. This means you pay more for crane repairs. You could also have accidents or need to stop work.

CEGC gives you standard portal crane: limit protection for rail alignment solutions. These help keep rails straight and fix problems. You can also make rails better and easier to care for with wheel alignment and fixing steps.

Key Takeaways

• Check crane rails often to find misalignment early. Watch for uneven wear or odd noises to stop accidents.

• Use overload protection systems to watch weight limits. These systems warn you before problems get worse and keep things safe.

• Make a maintenance schedule for your cranes. Regular checks and quick repairs help keep rails straight and make equipment last longer.

Rail alignment importance for portal cranes

Risks of crane rail misalignment

When crane rails are not lined up right, many problems can happen at your port. This can hurt your portal crane or other machines that move containers. You might see signs like wheels wearing out unevenly, loud sounds, or the crane stopping suddenly. These signs mean there could be a safety problem when the crane is carrying things. If you do not pay attention to these signs, accidents and expensive repairs can happen.

Here is a table that shows what can go wrong if crane rails are not lined up:

You should look for these warning signs and fix problems fast. If you wait too long, your crane can get badly damaged and stop working.

Vertical misalignment and its effects

Vertical misalignment is when one rail is higher or lower than the other. This is a special kind of crane rail problem. It can make the crane move in a bumpy way and is not safe when lifting heavy things. You might notice these things:

• Old runways can bend and change shape more easily.

• Too much weight or broken parts can make rails not line up.

• The ground under the building can move and mess up the rails.

Vertical misalignment can also make the load and hook not match up. This makes it harder to lift things and wears out the crane faster. You may need to fix the crane more often and it can get badly damaged.

To keep things safe, you can use special tools like anti-sway systems and safety locks. These tools help stop the crane from swinging and keep it working right. They also show you when something is wrong, so you can fix it before it gets worse.

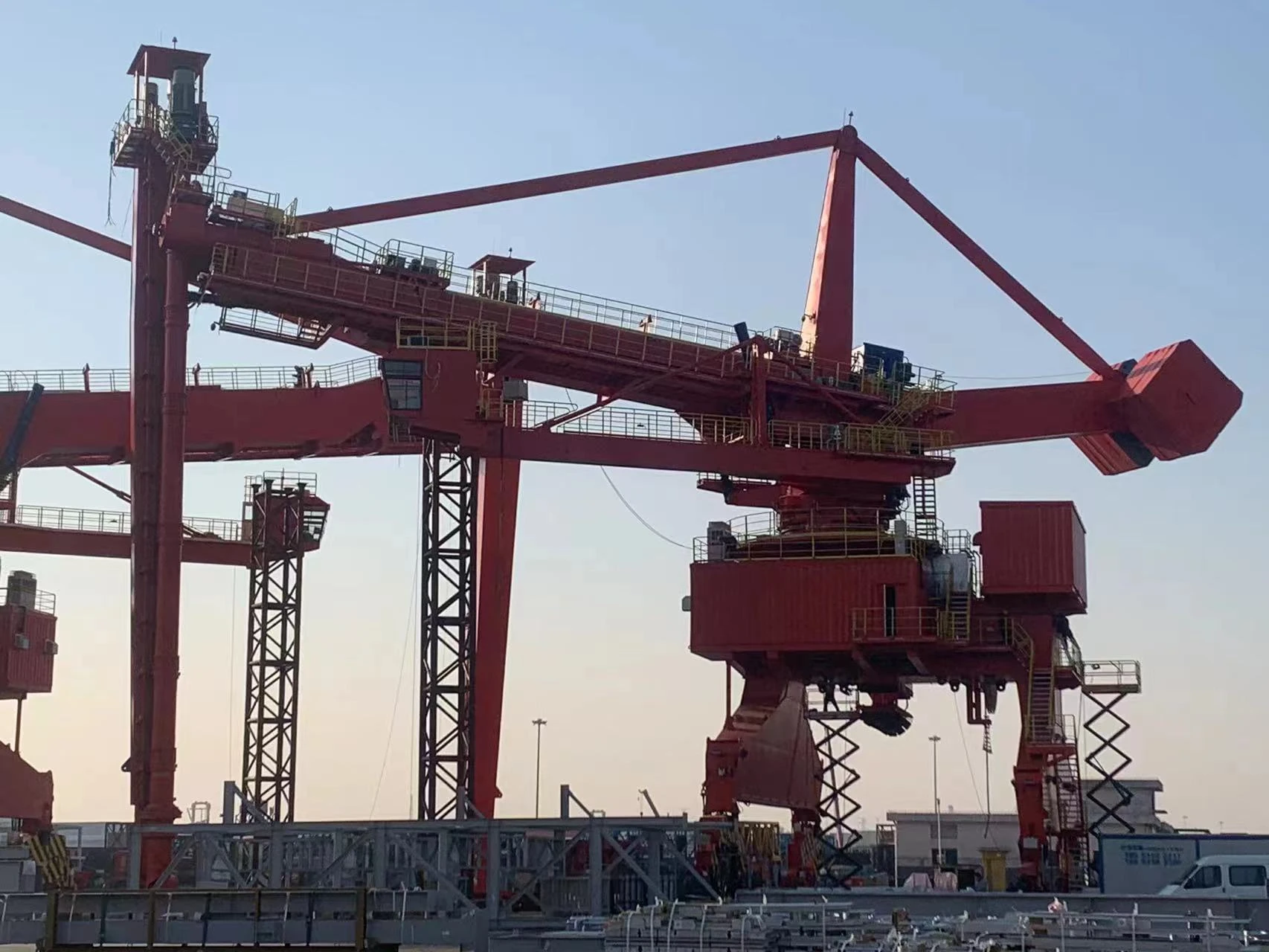

Diagnose crane rail misalignment and protection methods

Early detection and inspection routines

You need to find crane rail misalignment early. This keeps your portal crane safe. Start by checking the rails often. Walk along the rails and look for cracks or rust. Watch for rail gnawing. Check the main portal frame for bending. Use your eyes and hands to check. If you see uneven wear or hear odd sounds, there may be a problem.

Measure the rails to see if they are straight. Check if the rails are parallel. Use special tools to check gauge, height, and straightness. This helps you find misalignment before it gets worse. Many ports use vibration tools to find hidden problems. These tools help you find issues you cannot see.

Here is a simple table to help you inspect:

Regular checks help you stop rail misalignment. If you find problems, fix them right away.

Practical steps for limit protection

You can do many things to protect your rails. Start by checking bolts, nuts, and clips. Walk along the rails and make sure everything is tight. Use a torque wrench and tighten bolts in a cross pattern. Replace any parts that are worn or missing. Loose parts can cause rail gnawing and misalignment.

Keep the load within the crane’s limit. Too much weight can move the rails and cause rail gnawing. Make sure your rigging is safe and lined up. Check wires, brakes, gears, and hoists often. In wet places, look for rust or damage. Calibrate load sensors and alarms often. These steps help you stop sudden failures.

Use overload protection systems. These have load limiters and alarms. They warn you before a problem gets bad. Predictive maintenance systems use real-time data to watch the rails. They alert you to strange things, so you can fix them early. The RailQ Runway Survey gives you data on rails. This helps you keep your rails in good shape.

CEGC gives advanced solutions for portal cranes. Anti-sway systems use sensors and smart controls to stop load sway and rail gnawing. Safety interlocks stop unsafe moves. Condition monitoring systems give early warnings. These tools help you stop rail misalignment and keep your work safe.

Maintenance for misalignment prevention

You must take care of your rails to stop misalignment and rail gnawing. Start with good installation. Make sure rails are straight and the span is right. Adjust height and gauge as needed. The height difference between two rails should not be more than 10mm. Keep straightness errors under 3mm. Side movement at joints should be less than 1mm. Gauge error should not be more than 15mm.

Set up a maintenance schedule for your cranes. For new rails, check for loose or broken parts every day. Check wires, electrical parts, and structure every month. Have a licensed inspector check important parts once a year. For old rails, do the same checks and fix as needed.

Regular maintenance helps you find problems early. It keeps all rail parts working together. This lowers the risk of rail gnawing and misalignment. If you find a problem, fix it right away. This keeps your equipment safe and your port working well.

B2B clients often have problems like skewing, too much wear, and bad installation. These can cause downtime and expensive repairs. CEGC gives custom solutions for your rails. You can pick straight rails, curved rails, or special parts. Steel sole plates help keep rails stable, even if the ground is uneven. CEGC’s engineers follow international rules, so you get safe and reliable solutions.

Tip: Always follow what the manufacturer says for checks and maintenance. This keeps your rails safe and makes your portal crane last longer.

By doing these steps, you can find crane rail misalignment, stop rail gnawing, and keep your rails in good shape. CEGC’s solutions help you protect your equipment and keep your work safe and efficient.

You keep portal crane rails safe by doing smart things daily. Look at this table for important steps:

Checking and fixing things often helps your equipment stay safe and work well.

FAQ

What causes portal crane rail misalignment?

You may see rail misalignment from ground movement, heavy loads, or poor installation. Check your rail often to find problems early.

How do you fix rail misalignment on a portal crane?

You adjust the rail by tightening bolts, replacing worn parts, and checking the rail gauge. Use tools to measure the rail and keep it straight.

Why is regular rail inspection important for safety?

You keep your portal crane safe by inspecting the rail. Regular checks help you find rail wear, cracks, or movement before accidents happen.
